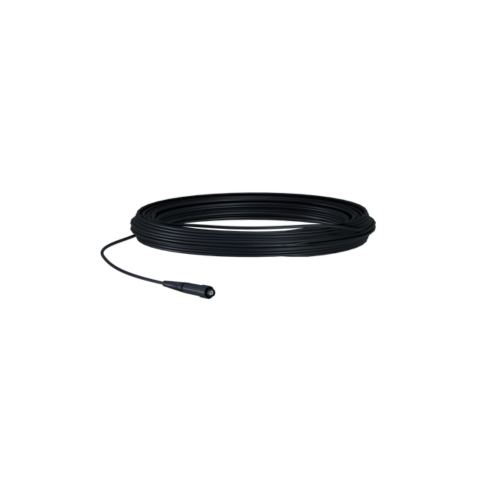

5mm round preconnectorized cable

5mm preconnectorized cable for advanced preconnectorized networks


Fibramérica’s 5mm Preconnectorized Optical Fiber Cable: A Superior Connectivity Solution

Optimize your FTTx and FTTH networks with Fibramérica’s 5mm Round Preconnectorized Cable, the quintessential plug-and-play solution for aerial, duct, and conduit installations. Ready for immediate deployment, these cables come preassembled with SC/APC connectors, ensuring a swift and tool-free installation that saves you time and resources.

Enhance your network’s efficiency with Fibramérica’s 5mm preconnectorized optical drop cable, the quintessential solution for streamlined FTTx and FTTH deployments.

Expertly preassembled, our cables boast end-to-end connectors, facilitating a tool-free installation that saves time and reduces complexity. Ideal for aerial, duct, or conduit applications, this robust cable spans up to 80 meters and is equipped with advanced protective features including a moisture-resistant gel barrier, thermally stable dielectric materials, and a UV-protective outer jacket.

Manufactured with eco-friendly LSZH materials, our cables ensure safety and durability for both indoor and outdoor setups. The reinforced SC/APC connectors guarantee high performance, while our dual cable configuration options allow for quick integration with optical termination boxes, enhancing your service activation process.

Experience the pinnacle of optical connectivity with Fibramérica’s reliable and versatile preconnectorized solutions.

In terms of configuration, Fibramérica’s 5mm G657A1/G657A2 cable offers two options of round cables. Regardless of the selected type, the structure of the cable facilitates a swift connection to preconnectorized optical termination boxes (CTO), thereby optimizing the process and minimizing potential downtime.

Key Features:

  • Versatility: Ideal for self-supporting aerial setups, it can also be utilized in ducts and conduits, offering flexibility in application.
  • Efficiency: Designed to connect distribution boxes or finalize subscriber links without box access, streamlining customer activation.
  • Durability: Boasts a maximum span of 80 meters, complete with a moisture-blocking gel, thermal and tension strain-resistant dielectric materials, and a UV-protected outer jacket.
  • Safety: Crafted from LSZH material for safe indoor and outdoor use, coupled with reinforced SC/APC connectors that maintain high performance.
  • Choice: Available in two configurations of G657A1/G657A2 round cables, compatible with preconnectorized optical termination boxes (CTO).

Technical Specifications:

  • Connectivity: SC/APC connectors conforming to IEC 61754-4 standards, with options for both ends.
  • Material: High-density polyethylene (HDPE) with a 5mm diameter and low smoke, zero halogen (LSZH) inner jacket.
  • Mechanical Strength: Supported by aramid yarn and FRP lateral traction members for robustness and longevity.
  • Environmental Tolerance: Operational across temperatures from -20 to +60 °C, and designed to withstand harsh environmental conditions.

Performance Assurance:

  • Quality Tested: Each cable undergoes rigorous tensile, crush, impact, and bending tests to meet and exceed IEC standards.
  • Attenuation Excellence: Low attenuation rates at 1310nm and 1550nm ensure signal integrity over distances.

Customization and Ordering:

  • Tailored Lengths: Order cables in lengths tailored to your needs, with precision tolerances.
  • Connector Options: Choose from various reinforced connector types and specify connector requirements at both box and subscriber sides.

Enhance your network’s reliability and performance with Fibramérica’s 5mm Preconnectorized Optical Fiber Cable, where quality meets innovation. For more information, please contact us.

**Product technical specifications are subject to change without notice.
