Bench-top Insertion Loss and Return Loss Test Station LB5500
T5500 is a high-performance loss test station that is designed especially for Optical Passive Components Production Test and Lab Test.
Compartilhe:

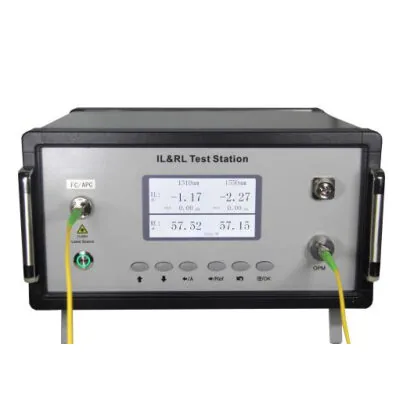

LB5500 is a high-performance loss test station that is designed especially for Optical Passive Components Production Test and Lab Test. It combines three different working modes as a return loss meter, optical power and loss meter and a stable laser source in one test station.
Features
High measurement accuracy
Accurate analysis to wide dynamic ranger and weak signal
Leakage design of OPM and OLS module, obviously reduced operation procedures.
Backlight can be changed by the operator, choosing the suitable backlight
Removable optical connector set design, easy to clean
USB Port design, enables data transfer to a PC with USB cable
The latest software, easy using and self-calibration
Specifications
| Model | LB5500-SM / LB5500-MM | |
| Optical Return Loss Test | ||
| Wavelength | 1310/1550nm (SM) 1490nm optional | 850/1300nm (MM) |
| Optic Connector | FC/APC | |
| Return Loss measurement Range | 0 ~ 75dB | |
| Output Stability of laser source | 0.05dB (1 hour@25° C) | |
| Measurement accuracy | 0.25dB | |
| Resolution | ±0.3dB | |
| Optical Power and Insertion Loss Test | ||
| Wavelength Range | 800~1700nm | |
| Calibrated wavelength | 850/1300/1310/1550nm, more other wavelengths can be optional | |
| Optic Connector（ Power Meter） | Interchangeable FC/SC/ST/2.5mm Universal /1.25mm adaptors | |
| Photo detector | InGaAs | |
| Display modes | dBm/dB/xW | |
| Measurement range | +3 ~ -80 dBm | |
| Resolution | Non-linear 0.001dB ； Linear： 0.001nw/µW/mW | |
| Measurement accuracy | ±5% | |
| Other Specification | ||
| Communication Port | USB | |
| Power Supply | AC 90-260V， 50～60Hz | |
| Operation Temperature | -5℃～+55℃ | |
| Storage Temperature | -25℃～+70℃ | |
| Dimensions | 260X240X130mm | |
| Weight(kg) | 2.8 |
LB5500 is a high-performance loss test station that is designed especially for Optical Passive Components Production Test and Lab Test. It combines three different working modes as a return loss meter, optical power and loss meter and a stable laser source in one test station.
Features
High measurement accuracy
Accurate analysis to wide dynamic ranger and weak signal
Leakage design of OPM and OLS module, obviously reduced operation procedures.
Backlight can be changed by the operator, choosing the suitable backlight
Removable optical connector set design, easy to clean
USB Port design, enables data transfer to a PC with USB cable
The latest software, easy using and self-calibration
Specifications
| Model | LB5500-SM / LB5500-MM | |
| Optical Return Loss Test | ||
| Wavelength | 1310/1550nm (SM) 1490nm optional | 850/1300nm (MM) |
| Optic Connector | FC/APC | |
| Return Loss measurement Range | 0 ~ 75dB | |
| Output Stability of laser source | 0.05dB (1 hour@25° C) | |
| Measurement accuracy | 0.25dB | |
| Resolution | ±0.3dB | |
| Optical Power and Insertion Loss Test | ||
| Wavelength Range | 800~1700nm | |
| Calibrated wavelength | 850/1300/1310/1550nm, more other wavelengths can be optional | |
| Optic Connector（ Power Meter） | Interchangeable FC/SC/ST/2.5mm Universal /1.25mm adaptors | |
| Photo detector | InGaAs | |
| Display modes | dBm/dB/xW | |
| Measurement range | +3 ~ -80 dBm | |
| Resolution | Non-linear 0.001dB ； Linear： 0.001nw/µW/mW | |
| Measurement accuracy | ±5% | |
| Other Specification | ||
| Communication Port | USB | |
| Power Supply | AC 90-260V， 50～60Hz | |
| Operation Temperature | -5℃～+55℃ | |
| Storage Temperature | -25℃～+70℃ | |
| Dimensions | 260X240X130mm | |
| Weight(kg) | 2.8 |
