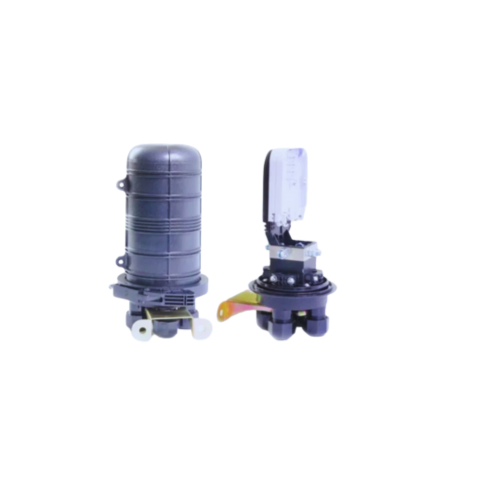

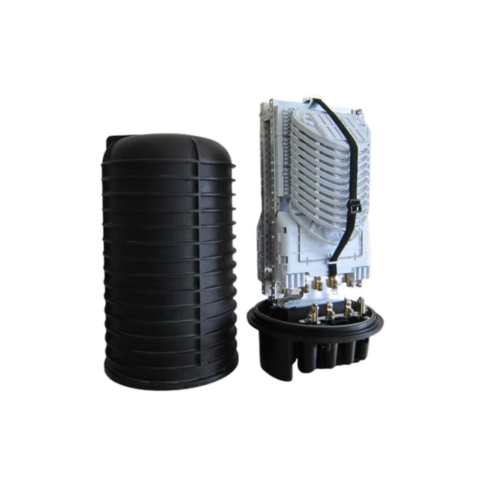

Dome Fiber Optic Splice Closure FAB-OFC-BDH-E5
Robust dome fiber splice closure with IP68 protection and 288-fiber capacity | Mod. FAB-OFC-BDH-E5
Compartilhe:
- Description
- Features
- Technical Specifications
Description
The FAB-OFC-BDH-E5 is a dome-type fiber optic splice closure designed for high-capacity and reliable protection of optical connections in diverse FTTx deployments. Engineered to handle up to 288 fiber splices across 8 trays, it ensures optimal performance for demanding network environments.
Manufactured using high-strength PC and PP synthetic plastics combined with stainless steel components, this closure delivers superior mechanical resistance, thermal stability, and long-term durability. Its thickened outer shell (≥4mm) provides excellent flame resistance, corrosion protection, and aging resistance—ideal for harsh outdoor conditions.
Featuring a heat-shrinkable and sticky cincture sealing system, the FAB-OFC-BDH-E5 achieves IP68 protection, safeguarding the internal fiber infrastructure from dust, water, and external stress. The closure supports straight-through, branching, and connection applications, making it a versatile solution for FTTH, FTTB, and other optical passive networks.
With installation flexibility for direct burial, aerial hanging, or wall mounting, and equipped with comprehensive accessories, this model offers easy deployment and future scalability for fiber distribution expansion.
Features
Dome closure with 8 cable ports (Ø7–40 mm)
Supports up to 288 fiber splices (36 fibers × 8 trays)
IP68 sealing with heat-shrink technology
High-resistance PC/PP plastics and stainless steel
Shell thickness ≥4mm for enhanced durability
Suitable for straight-through and branching configurations
Flexible installation: buried, aerial, or wall-mounted
Operating temperature: -40°C to +60°C
Service life: up to 25 years
Technical Specifications
| Specification | Details |
|---|---|
| Model | FAB-OFC-BDH-E5 |
| Cable Ports | 8 |
| Cable Diameter | Ø7–Ø40 mm |
| Max Capacity | 288 fibers (36×8 trays) |
| Sealing Method | Heat-shrinkable |
| Dimensions | Ø250 mm × 620 mm |
| Weight | 4.5 kg |
| Service Life | 25 years |
| Operating Temp | -40°C to +60°C |
| IP Rating | IP68 |
| Impact Resistance | 1m/1.6kg steel ball, 3x |
| Bending | 150N / ±45° / 10 cycles |
| Torsion | 50N·m / ±90° / 10 cycles |
| Insulation Resistance | ≥20,000 MΩ @ 500V |
| Dielectric Strength | 15kV / 1 min / 10mA |
FAB-OFC-BDH-E5, Dome splice closure, fiber optic enclosure, 288-fiber splice box, IP68 closure, heat-shrink dome
