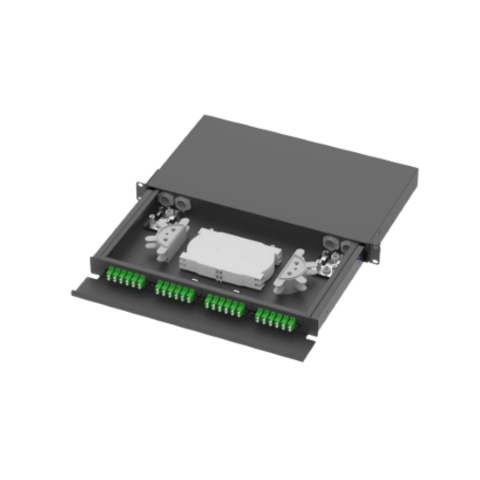

FAB-FPX-P1 Series Optical Distribution Frame
Fibramerica’s ODF is used as terminal equipment of fiber optic cable for optical fiber wiring, fixation, fusion and patching.
Question? Click hereTechnical Informations & PricesCompartilhe:
Description:
FAB-FPX-P1 Series ODF is used as terminal equipment of fiber optic cable for optical fiber wiring, fixation, fusion and patching.
Features:
• Cable clamping and strength member fixation system
• Universal adapter panel, suitable for SC, FC and LC adapters
• Clear fiber number marking on adapter panel and for pigtails
General Specifications:
| Applicable Adapter | SC, FC, duplex LC | |
| Capacity | 12 fibers, 24 fibers, 36 fibers, 48 fibers, 72 fibers, 96 fibers, 144 fibers etc | |
| Material | cold rolled steel | |
| Color | Black or grey | |
| Fiber Capacity | 482(W)*276(D)*44(H)mm | SC/FC: 12 fibers; LC: 24 fibers |
| 482(W)*276(D)*87(H)mm | SC/FC: 24 fibers; LC: 48 fibers | |
| 482(W)*276(D)*131.5(H)mm | SC/FC: 36 fibers; LC: 72 fibers | |
| 482(W)*276(D)*150(H)mm | SC/FC: 48 fibers; LC: 96 fibers | |
| 482(W)*276(D)*200(H)mm | SC/FC: 72 fibers; LC: 144 fibers | |
| Installation Method | 19” rack mount (21” rack mount is available) | |
| Splice Tray Capacity | 24 fibers/tray | |
How to order a ODF
Model Rules: FAB-FPX-P1-XX-XX-XX
Ordering Information:
|
Model |
Type | XX: Adapter | Fiber Capacity |
XX: Pigtail |
|
FPX |
P1 |
SC: SC/UPC
AS: SC/APC LC: LC/UPC AL: LC/APC |
12=12 fibers
24=24 fibers 48=48 fibers 72=72 fibers |
SC: SC/UPC
AS: SC/APC LC: LC/UPC AL: LC/APC |
