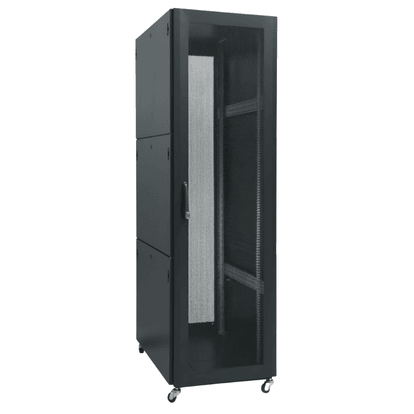

FAB-K3 Server Cabinet | Mod. FAB-K3

The FAB-K3 server cabinet is a high-capacity, professional-grade enclosure designed for 19” rack systems, offering excellent ventilation, wide configuration options, and static load capacity up to 1600 kg—ideal for enterprise networks, data centers, and telecom deployments.

Compartilhe:

  • Description
  • Features
  • Technical Specifications
Description

The FAB-K3 Server Cabinet by Fibramérica is a modular and robust rack solution engineered for high-performance IT and telecom infrastructure. Designed according to international standards (ANSI/EIA RS-310-D, IEC297-2, DIN41494), it ensures compatibility with global data center and telecom deployments.

Built with a nine-fold welded steel frame using SPCC cold-rolled steel, the cabinet features powder-coated panels, a front single-section perforated door, and double-opening rear mesh doors, all offering a 75% ventilation rate. The 487 mm internal width and adjustable mounting depth support a wide range of server and networking equipment, while side panels open in three independent quick-release sections for maintenance and cabling ease.

This unit offers static loading support of up to 1000 kg, extendable to 1600 kg with auxiliary mounting profiles. The advanced spring-lock system with a 120° opening angle and optional accessories—like fan units, PDUs, trays, and cable organizers—make the FAB-K3 an ideal solution for ISPs, data centers, enterprises, and FTTH applications.

Each cabinet can be selected in multiple sizes from 32U to 47U, with varying widths (600 or 800 mm) and depths (600–1200 mm). Color customization is available in RAL9004 (standard) and RAL7035 (optional), maintaining a professional aesthetic to suit any IT environment.

Features
  • Fully compliant with ANSI/EIA, IEC, DIN, ETSI standards

  • Nine-fold steel frame for enhanced structural strength

  • Adjustable 19” mounting depth with optional accessories

  • 75% airflow mesh front and rear doors for optimal ventilation

  • Triple-split quick-open side panels for cable access

  • Static load capacity: 1000 kg (up to 1600 kg with optional profiles)

  • High-strength advanced spring locks with 120° door opening

  • 487 mm wide internal mounting space

  • Customizable U-height: 32U to 47U

  • Optional trays, fans, PDUs, cable management accessories

  • Powder-coated SPCC cold-rolled steel finish

  • IP20 protection rating

Technical Specifications
SpecificationDetails
ModelFAB-K3
Standard Widths600 mm / 800 mm
Standard Depths600 mm / 800 mm / 1000 mm / 1200 mm
Height Range32U to 47U
Internal Width487 mm
VentilationFront/rear mesh doors, 75% ventilation rate
Side PanelsThree-section removable
Static Load Capacity1000 kg (1600 kg with auxiliary profile)
MaterialSPCC cold-rolled steel (1.2–1.5 mm)
Surface FinishDegreasing, phosphoric, silane, powder coated
Protection LevelIP20
Door Opening Angle≥ 120°
Optional AccessoriesFixed shelf, fan unit, PDU, cable management, tray
Color OptionsStandard RAL9004, Optional RAL7035
