FAB-OFC-BDH-C5 Dome Closure 288 cores
Fibramérica developed a complete family of horizontal and dome closures to meet the complex needs of today’s fiber optic networks.
Compartilhe:
Description:

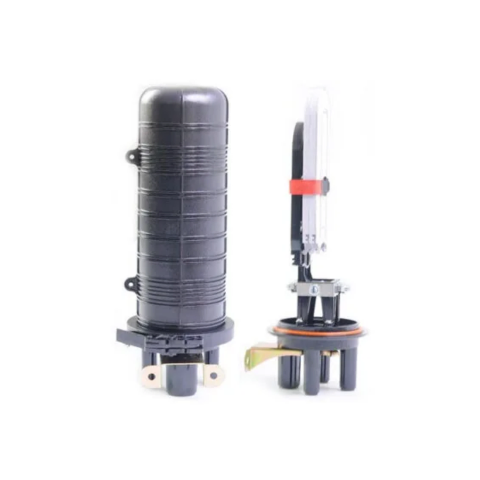

FAB-OFC-BDH-C5 Dome Type Heat Shrinkable Fiber Optic Splice Closure (OFC) is heat shrinkable sealing and suitable for uncut cables.
Specification:
| Model | FAB-OFC-BDH-C5 |
| Type | Dome type |
| Sealing Structure | Heat shrinkable |
| Number of Inlet/Outlet ports | 5 ports |
| Cable Diameter | 4 ports×22mm, 1 port×35mm |
| Maximum Capacity | Bunchy: 288 fibers; Ribbon: 432 fiber |
| Capacity per Splice Tray | Bunchy: single layer: 24 fibers; dual layers: 48 fibers; Ribbon: 6pcs.; max.: 12 pcs |
| Quantity of Splice Tray | 6pcs |
| Body Material | PC |
| Sealing Material | Thermoplastic rubber |
| Assembling method | Aerial, direct buried, pipelined, wall mounting, manhole |
| Dimension | 490(H)×220(D)mm |
| Net Weight | 3.0~3.6KG |
| Temperature | -40℃~65℃ |
