Description

Description

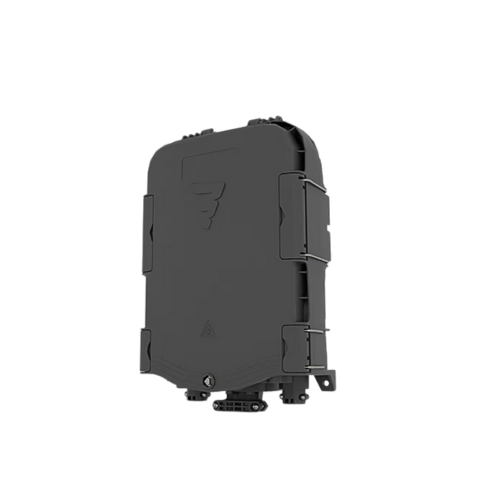

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.



Applications Environment

Item	Value
Operation temperature	-40 ºC～+65 ºC
Installation temperature	-5 ºC～+40 ºC
Storage temperature	-40ºC～+65 ºC
Atmospheric pressure	70～106Kpa
Relative humidity	≤93％(+40℃)



Characteristics

2.1.  Advanced structure design, easy operation and reasonable routing.

2.2.  Material: PP or PC+ABS.

2.3.  Moisture proof, waterproof, dust-proof, anti-aging.

2.4.  Protection level up to IP65.

2.5.  1 oval optical cable entry, 2 branch optical cable entries and  16pcs of household

2.6.  Installation method: pole-mounted, aerial-mounted, wall-mounted.

2.7. It can be equipped with drop cable storage tray to meet the storage of 50 meters 5mm round cable.



Specifications

3.1 Mechanical specifications

Item	Specifications	Remark
External dimension(mm)	319*200*97.5(A*B*C)
Installation hole position(mm)	52*166/166/282*180 (D*E/F/G*H)
Color	PANTONE 428C	Customizable
Size and quantity of optical cable hole	One pair of straight hole, 2 pcs of divergent hole and 16 pcs of household
Input type/type of output	SC adapter	16 PCS
Fusion capacity(Max)	48	Tray A ,12×4=48, 2 layers of heat-shrinkable splice protection sleeve.
	56	Tray B, 8×7=56, 1 layer of heat-shrinkable splice protection sleeve.
	84	Tray C, 12×7=84, 1 layer of heat-shrinkable splice protection sleeve.
	96	Tray D,Tray E, 24×4=96, 2 layers of heat-shrinkable splice protection sleeve.
Micro PLC Splitter	1×2	Splitter size：60x7x4mm. Can be installed in type A and type E splicing tray, 1 PC per splicing  tray.
	1×4
	1×8
	1*16	Splitter size：60x12x4mm. Can be installed in type A-1, and type E-1 splicing tray, 1 PC per splicing  tray.
Into the largest cable diameter (mm)	ᴓ8~18
Maximum size of branch hole(mm)	ᴓ16
Cable outlet size(mm)	2*3~ᴓ5
IP protection level	IP65
Flammability	HB(Conventional)	can be customized according to requirements
Neutral salt spray test (NSS)	48 h





Environmental characteristics

This product complies with the RoHS environmental protection directive, and the content of lead, cadmium, mercury, hexavalent chromium, polybrominated biphenyl (PBB)  and polybrominated diphenyl ether (PBDE) does not exceed the limit.
