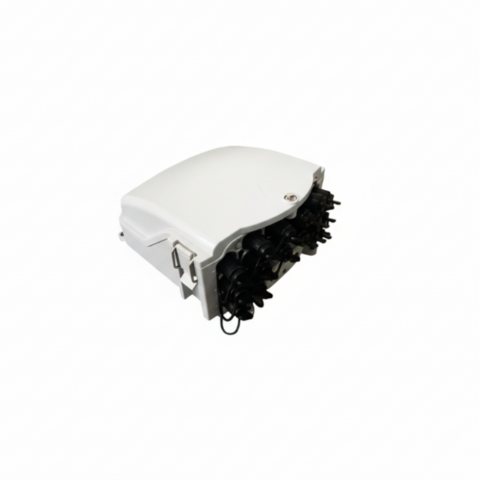

Fiber Termination Box FAB-HGT-8DY
Pre-connectorized optical distribution box as the most advanced FTTX network distribution node equipment, provide quick and reliable connection, good protection and management for the FTTX network.
Question? Click hereTechnical Informations & PricesCompartilhe:
Description
The FAB-HGT-8DY Pre-connectorized optical distribution box as the most advanced FTTX network distribution node equipment, provide quick and reliable connection, good protection and management for the FTTX network.
Compare traditional products, the FAB-HGT-8DY series of pre-connectorized optical distribution box Enclosure is easy to operate and has high compatibility. It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation. FTTX Enclosure not only used in FTTH field, but also used in FTTA or other harsh environment.
Applications Environment
| Item | Value |
| Operation temperature | -40 ºC～+65 ºC |
| Installation temperature | -5 ºC～+40 ºC |
| Storage temperature | -40ºC～+65 ºC |
| Atmospheric pressure | 70～106Kpa |
| Relative humidity | ≤93％(+40℃) |
Characteristics
2.1.The bottom shell and the upper cover are fixed with screws,removable.
2.2. Material: PP.
2.3. Moisture proof, waterproof, dust-proof, anti-aging.
2.4. Protection level up to IP68.
2.5. The interior is equipped with 1×2 FTB splitter+ 1×8 PLC splitter or 1×8 PLC splitter……
2.6. Installation method: pole-mounted, aerial-mounted, wall-mounted.
Specifications
| Item | Specifications | Remark |
| Material of housing | Modified PP plastic | |
| Material of internal components | PC+ABS/ABS | |
| Material of metal accessory | High-quality stainless steel | |
| External dimension(mm) | 264*100*66.5mm | |
| Color | Black | |
| Installation hole position(mm) | 270*83 | |
| Number of Pre-connectorized adaptors | 10 | FAB-HGT-8DY(1 red,1blue,1green,7 black) |
| 9 | FAB-HGT-8DY(1 red,8 black) | |
| 8 | FAB-HGT-8DY-1(8 black) | |
| 8 | FAB-HGT-8DY-2(8 black) | |
| Splitter | 1×2 FTB splitter+ 1×8 PLC splitter | FAB-HGT-8DY |
| 1×8 PLC splitter | FAB-HGT-8DY | |
| FAB-HGT-8DY-1 | ||
| FAB-HGT-8DY-2 | ||
| IP grade | IP68 | |
| Flammability | UL94-HB | Default |
| Neutral salt spray test (NSS) | 48h |
