Description

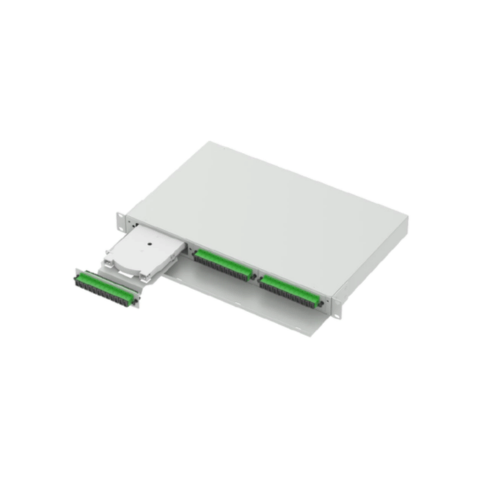

The FAB-S13-D-36 is a 36-core optic fiber patchpanel tailored for 19” rack mount systems. It provides a compact and durable solution for managing pre-connectorized optical couplers, splice trays, and adapter panels in structured fiber optic networks.

Its sliding drawer structure allows technicians to access patching areas and fiber trays without removing the unit from the rack. Each individual tray slides out to facilitate splicing, connector installation, and maintenance while protecting sensitive optical components.

This panel supports up to 3 internal trays, each accommodating 12 adapter ports and 24 splice cores, for a total capacity of 36 fibers. It is compatible with SC/APC pigtails (G.657A1, Ø0.9 mm, 1.5 m), offering flexibility across FTTH and enterprise applications.

Made from SPCC steel and finished in RAL 7035 gray, the panel offers mechanical strength, corrosion resistance, and a clean aesthetic fit for telecom racks and data cabinets.

Features

• Designed for 19” rack mounting (standard)

• Slide-out drawer structure for easy access

• 3 internal trays for 36 fiber cores

• 12 adapter ports per tray, SC, FC, LC compatible

• 24-core splicing capacity per tray

• Supports SC/APC pigtails (Ø0.9 mm, 1.5 m, G.657A1)

• Material: SPCC steel with gray RAL 7035 finish

• Dimensions: 44 × 482 × 350 mm

Technical Specifications

optic fiber patchpanel, rack mount fiber panel, FAB-S13-D-36~72, SC adapter patchpanel, fiber splice tray panel, FTTH distribution frame, 19-inch optical rack, preconnectorized patch panel
