SMALL BOX 16 Fiber Termination Box-16 Cores (NEW)

Compact 16-core IP65 fiber termination box, model FAB-HGT-16DG, with PLC splitter support for high-efficiency FTTH.

Compartilhe:

  • Description
  • Features
  • Technical Specifications
  • Video
Description

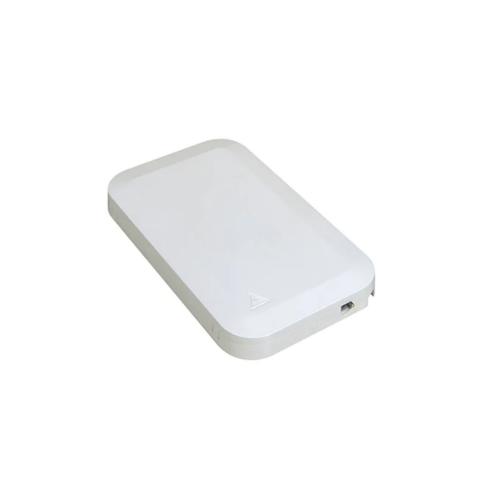

The FAB-HGT-16DG Fiber Termination Box from Fibramérica is the new generation of compact optical enclosures, combining high capacity with a space-saving design. Built for modern FTTx networks, it allows for organized termination, splicing, and distribution of up to 16 fibers in a robust, waterproof housing.

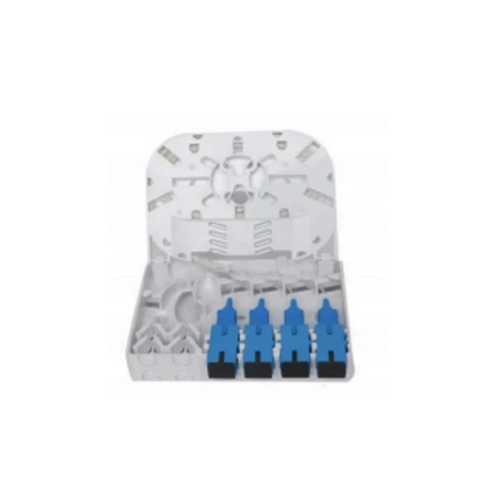

Constructed from durable PC+ABS material with UV protection and anti-aging properties, the FAB-HGT-16DG is IP65-rated, ensuring resistance to dust, moisture, and environmental degradation. Its design integrates a splice cassette and cable management system, providing fiber bend radius control above 40mm for optimal performance.

The unit supports both fusion and mechanical splicing, and can house either two 1×8 PLC splitters or one 1×16 PLC splitter for flexible network configurations. Available in black or white, it is suitable for wall-mounted or pole-mounted installations, making it ideal for residential, commercial, and small-scale ISP deployments.

Features
  • Compact waterproof IP65 design.

  • Supports up to 16 SC ports.

  • PC+ABS construction with UV resistance.

  • Integrated splice cassette and cable management.

  • Fiber bend radius control > 40mm.

  • Compatible with 2×1×8 or 1×1×16 PLC splitters.

  • Wall or pole mounting options.

  • Available in black and white.

Technical Specifications
SpecificationDetails
ModelFAB-HGT-16DG
MaterialPC+ABS
Dimensions (mm)250 × 200 × 72
Max Capacity16 SC ports
Max Input Cable Diameter2 × Φ18 mm
Max Output Cable Size16 × 2×3 mm
Splitter Support2 × 1×8 or 1 × 1×16 PLC
Protection LevelIP65
Fiber Bend Radius> 40 mm
Color OptionsBlack, White
Video

FAB-HGT-16DG, compact fiber termination box, IP65 fiber box, 16-core optical enclosure, PLC splitter termination box, FTTH wall mount fiber box
