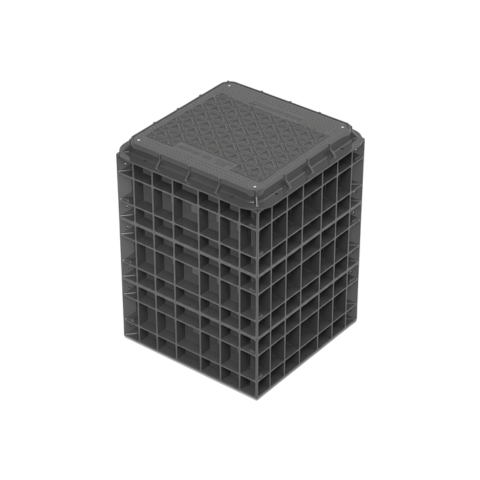

SMC Manhole Chamber 600×600 | Mod. FAB-MH600-B125C250D400
600×600 mm SMC Manhole Chamber with B125, C250 & D400 cover rating for secure and modular underground access.
- Description
- Features
- Technical Specifications
Description
The FAB-MH600-B125C250D400 is a high-capacity manhole chamber engineered to support rigorous urban and industrial environments. With a 600×600 mm clear opening and external dimensions of 760×760×900 mm, this unit is built entirely from SMC (Sheet Molding Compound), delivering excellent mechanical resistance, corrosion protection, and weight savings over traditional cast iron alternatives.
Certified for Class B125, C250, and D400 loading under BS EN124 standards, this chamber is suitable for use in heavy-duty vehicular traffic areas such as city streets, sidewalks, utility corridors, and telecom distribution zones. Its composite construction resists rust, UV degradation, and fuel or chemical exposure—while the anti-slip surface and locking system provide secure and safe access.
Modular and stackable by design, the FAB-MH600-B125C250D400 simplifies shipping and installation logistics. It is fully manually deployable, reducing total project cost and enabling use in locations where machinery access is limited.
This manhole chamber is an ideal choice for municipalities, utility companies, and telecom operators seeking long-term reliability in their underground infrastructure—engineered by Fibramérica for high-performance networks.
Features
Certified to EN124: B125, C250 & D400 classes
600×600 mm clear access opening
Full-size 760×760×900 mm structure
Composite locking cover for secure access
Full SMC construction: corrosion, UV and water resistant
Anti-slip textured surface for safety
Modular design for easy transport and stacking
Manual on-site assembly without heavy tools
Compatible with telecom, electrical and drainage systems
Available with customization upon request
Technical Specifications
| Specification | Details |
|---|---|
| Model | FAB-MH600-B125C250D400 |
| Material | Sheet Molding Compound (SMC) |
| Clear Opening | 600×600 mm |
| External Dimensions | 760×760×900 mm |
| Height | 900 mm |
| Load Class | B125 / C250 / D400 (EN124) |
| Cover | Lockable composite, anti-slip |
| Surface | Anti-slip, UV-protected |
| Installation | Manual on-site assembly |
| Customization | Available upon request |
