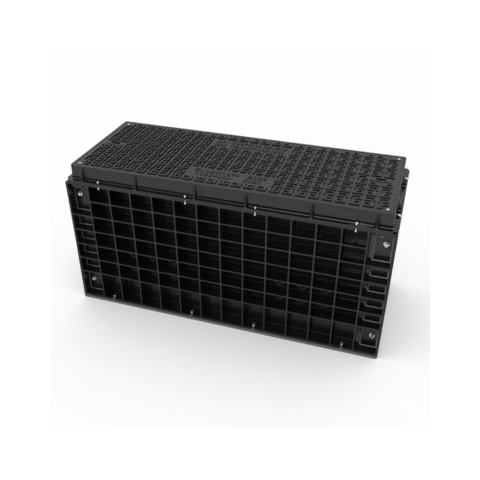

SMC Telecom Chamber 1180×400 | Mod. FAB-TC1180-B125C250
SMC Telecom Chamber 1180×400 mm with lockable Class B125/C250 cover, corrosion-proof and easy to assemble on site.
- Description
- Featuras
- Technical Specifications
Description
The FAB-TC1180-B125C250 is a mid-size modular telecom chamber designed with a 1180×400 mm clear opening and 1300×520 mm overall dimensions. Crafted from high-strength Sheet Molding Compound (SMC), it provides a lightweight, watertight, and corrosion-resistant solution for underground telecom, FTTH, and utility access points.
Unlike cast iron or brick structures, this composite chamber is theft-proof, UV-resistant, and non-conductive—ensuring durability even in harsh outdoor conditions. Its modular design and manual assembly capability make it an ideal option for fast installations where heavy machinery is unavailable.
Tested to BS EN124 standards, the unit supports both B125 and C250 load classes, making it suitable for areas with pedestrian traffic or light vehicle access. The anti-slip surface and lockable cover enhance operational safety and security for urban and industrial deployments.
Engineered by Fibramérica, the FAB-TC1180-B125C250 offers a modern, cost-efficient upgrade for traditional manhole installations with improved longevity and logistics efficiency.
Featuras
Compliant with BS EN124, Class B125 & C250
1180×400 mm internal clear opening
1300×520 mm external dimensions
Lockable composite lid for added security
UV-stabilized and anti-corrosive SMC body
Manual, tool-free on-site assembly
Anti-slip surface for worker safety
No metal parts — theft-proof design
Lightweight for low freight costs
Compatible with fiber, power, or utility networks
Technical Specifications
| Specification | Details |
|---|---|
| Model | FAB-TC1180-B125C250 |
| Material | Sheet Molding Compound (SMC) |
| Clear Opening | 1180×400 mm |
| External Dimensions | 1300×520×642 mm |
| Height | 651–701 mm |
| Load Class | B125 & C250 (EN124) |
| Cover | Composite, lockable |
| Surface | Anti-slip, UV-protected |
| Installation | Manual, on-site assembly |
| Customization | Available upon request |
