SMC Telecom Chamber 540×400 | Mod. FAB-TC540-B125C250
Compact 540×400 mm SMC Telecom Chamber with B125/C250 rated lockable cover for urban FTTH and utility access.
- Description
- Features
- Technical Specifications
Description

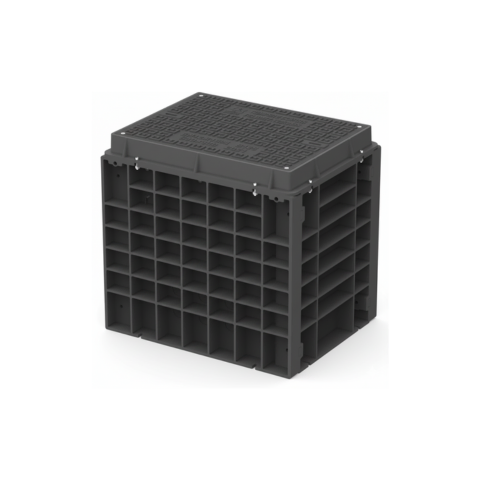

The FAB-TC540-B125C250 is a compact yet highly durable telecom chamber designed for tight-space installations, offering a 540×400 mm clear opening and overall dimensions of 660×520 mm. Manufactured using Sheet Molding Compound (SMC), this enclosure ensures exceptional resistance to corrosion, UV exposure, and moisture ingress.
With a modular construction that allows for easy stacking and transport, this chamber can be assembled manually on site—minimizing labor and eliminating the need for heavy machinery. Its robust locking composite cover is rated B125 and C250 according to BS EN124 standards, making it suitable for pedestrian zones and light traffic environments.
Ideal for FTTH projects, telecom networks, and electrical junctions in urban settings, the FAB-TC540-B125C250 combines anti-theft, anti-slip, and non-conductive properties in a lightweight, high-strength design. It is a modern replacement for legacy brick or cast iron solutions.
Fibramérica delivers high-performance access enclosures that meet the technical demands of modern infrastructure deployments.
Features
EN124 Class B125 & C250 compliant
540×400 mm internal clear opening
Total size: 660×520×642 mm
Full SMC body for corrosion and UV resistance
Lockable anti-slip composite cover
Lightweight for manual, tool-free assembly
Stackable for efficient transport
Secure design with no metal scrap value
Non-conductive and watertight
Designed for FTTH, telecom, and utility nodes
Technical Specifications
| Specification | Details |
|---|---|
| Model | FAB-TC540-B125C250 |
| Material | Sheet Molding Compound (SMC) |
| Clear Opening | 540×400 mm |
| External Dimensions | 660×520×642 mm |
| Height | 651–701 mm |
| Load Class | B125 & C250 (EN124) |
| Cover | Lockable composite cover |
| Surface | Skid-resistant, UV-stabilized |
| Installation | Manual on-site assembly |
| Customization | Available upon request |
