100G CFP4 Transceivers provide efficient 10km single-mode connectivity for high-speed Ethernet and OTU4 applications.
Need a custom spec or OEM branding on this product? Talk to our engineering team.
Every batch, before shipment
Manufacturing
Custom specs and branding
Americas, Europe and Africa

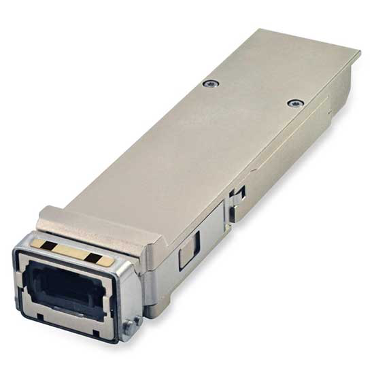

FIBRAMERICA’s 100G CFP4 Optical Transceivers are compact, high-performance modules designed for 100 Gigabit Ethernet and OTU4 transmission. Supporting data rates of up to 112Gbps, these modules provide robust connectivity over distances up to 10km using standard single-mode fiber (SMF G.652).
Fully compliant with the CFP4 MSA specification, the transceivers integrate a Duplex LC connector, operate with a single +3.3V power supply, and feature built-in digital diagnostic monitoring (DDM). This ensures precise control of key parameters for performance optimization and troubleshooting.
Ideal for high-capacity environments such as data centers, enterprise networks, and service provider infrastructures, the 100G CFP4 series offers a low-power, space-efficient solution for long-reach optical communications in temperature ranges from 0 to 70°C.
Supports 100/112Gbps data rates
Up to 10km over SMF G.652
Compliant with CFP4 MSA
Duplex LC optical interface
Integrated Digital Diagnostic Monitoring (DDM)
Single +3.3V power supply
Low power consumption
Operating temperature: 0 ~ 70°C
| Specification | Details |
|---|---|
| Model | 100G CFP4 Transceivers |
| Data Rate | 100/112Gbps |
| Transmission Distance | 10km |
| Fiber Type | Single-mode fiber (SMF, G.652) |
| Interface | Duplex LC |
| Compliance | CFP4 MSA |
| Digital Monitoring | Yes |
| Power Supply | +3.3V |
| Operating Temperature | 0 ~ 70°C |
100G CFP4 Transceivers, CFP4 MSA module, 100Gbps LR4 optics, Duplex LC transceiver, 10km single-mode 100G, FIBRAMERICA CFP4
Our engineering team can confirm compatibility, custom specs and OEM branding options.
