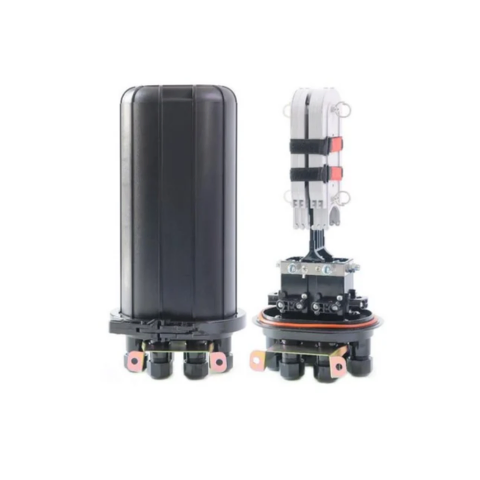

FAB-OFC-BDM-B4 Dome Closure 48 cores (Mechanical Sealing)
Fibramérica developed a complete family of horizontal and dome closures to meet the complex needs of today’s fiber optic networks.
Compartilhe:
Description:
FAB-OFC-BDM-B4 Dome Type Mechanical Sealing Fiber Optic Splice Closure (OFC) is mechanical sealing
Specification:
| Model | FAB-OFC-BDM-B4 |
| Type | Dome type |
| Sealing Structure | Mechanical |
| Number of Inlet/Outlet ports | 4 ports |
| Cable Diameter | 4 ports×16mm |
| Maximum Capacity | Bunchy: 48 fibers; Ribbon: 72 fibers |
| Capacity per Splice Tray | Bunchy: single layer: 6 fibers; dual layers: 12 fibers; Ribbon: 3pcs |
| Quantity of Splice Tray | 4pcs |
| Body Material | PC |
| Sealing Material | Thermoplastic rubber |
| Assembling method | Aerial, direct buried, pipelined, wall mounting, manhole |
| Dimension | 295(H)×190(D)mm |
| Net Weight | 1.8~1.91KG |
| Temperature | -40℃~65℃ |
Description:
FAB-OFC-BDM-B4 Dome Type Mechanical Sealing Fiber Optic Splice Closure (OFC) is mechanical sealing
Specification:
| Model | FAB-OFC-BDM-B4 |
| Type | Dome type |
| Sealing Structure | Mechanical |
| Number of Inlet/Outlet ports | 4 ports |
| Cable Diameter | 4 ports×16mm |
| Maximum Capacity | Bunchy: 48 fibers; Ribbon: 72 fibers |
| Capacity per Splice Tray | Bunchy: single layer: 6 fibers; dual layers: 12 fibers; Ribbon: 3pcs |
| Quantity of Splice Tray | 4pcs |
| Body Material | PC |
| Sealing Material | Thermoplastic rubber |
| Assembling method | Aerial, direct buried, pipelined, wall mounting, manhole |
| Dimension | 295(H)×190(D)mm |
| Net Weight | 1.8~1.91KG |
| Temperature | -40℃~65℃ |
