Description

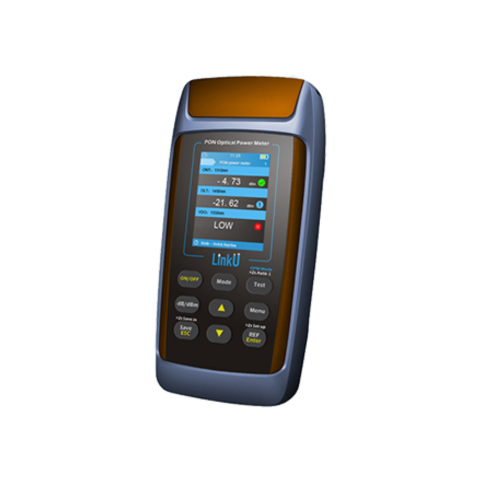

Optical Power Meter is used to test optical power, loss, continuity and faults on all types of fiber optic systems. LP-3 series OPM provides high accuracy and simplicity of test. Working with Linku’s LS-3 series OLS, it can automatically recognize the wavelength to be tested to reduce the possibility of wrong operation.
Features
- Auto-wavelengths recognition（working with LS-3 series OLS）
- Auto power-off , battery indicator
- LCD display with back-light
- Reference value setting
- Up to 1000 testing results storage
- USB port for data transmission (LP-3TV&3CV)
- Build-in 10mW VFL module(LP-3TV&3CV)
- Up to 160 hours continuous operation (Type)
Specification
| Model # | LP-3T | LP-3C | LP-3TV | LP-3CV | |
| Calibrated Wavelength | 850/980/1300/1310/1490/1550/1625 nm | ||||
| Detector Type | InGaAs | ||||
| Measuring Range | -70 to +10dBm @1550nm | -50 to +26dBm @1550nm | -70 to +10dBm @1550nm | -50 to +26dBm | |
| Resolution | 0.01dB(>-60dBm) | 0.01dB(>-40dBm) | 0.01dB(>-60dBm) | 0.01dB(>-40dBm) | |
| Accuracy* | ±0.2dB
±0.35db±10nW ±0.35db±1nW |
||||
| Connector | FC/PC &. 2.5mm universal | ||||
| Modulation Freq. Detection | 270Hz, 1KHz, 2KHz | ||||
| VFL Module | N/A | 650 nm ; 10mW ; CW&.2Hz | |||
| USB port for data transmission | N/A | Available | |||
| Operating/ Storage Temperature | -10℃ ~ 50℃ / -20℃ ~ 70℃ | ||||
| Power supply | 3 * AA batteries; AC/DC adaptor | ||||
| Dimension (mm) | 170*82*35 (L*W*H) | ||||
| Standard Accessories: | |||||
| FC/PC adapter, carrying bag, Manual | |||||
| Optional Items | |||||
| SC Adapter, ST Adapter, FC to LC Hybrid Adapter, AC/DC adapter | |||||
* @ 20+3°C, CW, FC/PC connector, -10dBm
