Compact FTTH fiber terminal box Mod. FAB-HGT-16LW-1 with 16 ports, IP65 protection, and support for 2×1:8 or 1×1:16 PLC splitters.
Need a custom spec or OEM branding on this product? Talk to our engineering team.
Every batch, before shipment
Manufacturing
Custom specs and branding
Americas, Europe and Africa

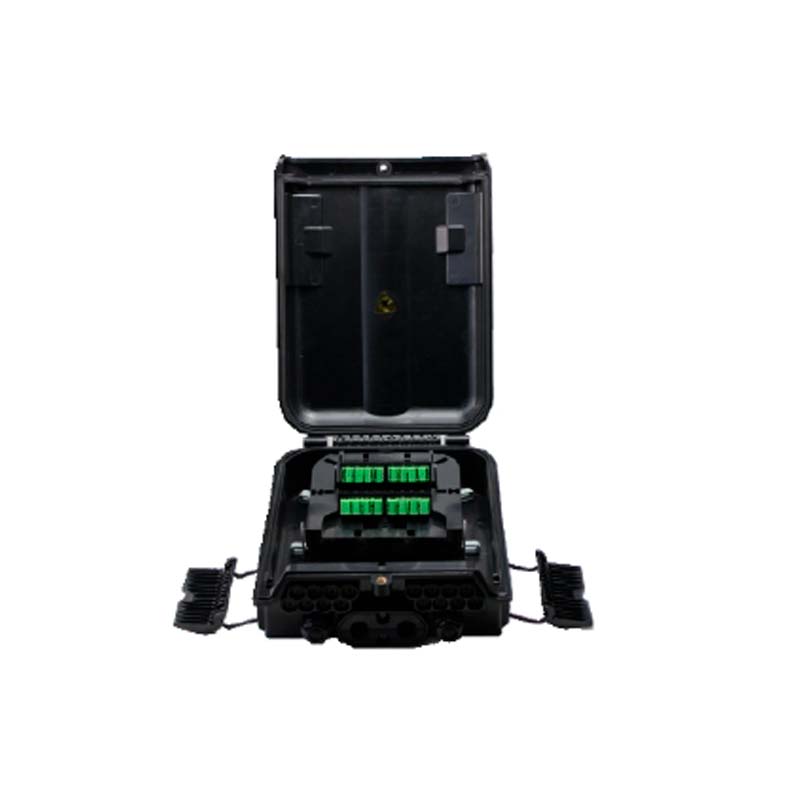

The FAB-HGT-16LW-1 is a compact fiber access termination box designed to serve up to 16 subscribers in FTTx network systems. It provides a complete solution for fiber splicing, splitting, distribution, and cable management within a robust outdoor enclosure.
Crafted from UV-resistant PC+ABS material, the box is suitable for pole, wall, or aerial mounting in harsh environments. It includes 1 mid-span cable port for uncut cable access and 2 additional ports for cable glands. Internally, the unit supports up to 16 fiber splices and accommodates 2×1×8 or 1×1×16 PLC splitters, with space for 16 SC/UPC or SC/APC adapters.
The two-step patch panel and 180° access design make cabling and maintenance efficient and organized. This product is ideal for residential or business FTTH installations where durability, protection, and compact design are essential.
Supports 2×1×8 or 1×1×16 PLC splitters
16 fiber splice capacity and 16 SC adapter ports
PC+ABS construction with UV resistance
IP65 protection rating
180° dual-lock access design
Two-step patch panel for clean cable management
Mid-span cable entrance (10–16.5 mm) + 2 reserved glands (8–13.5 mm)
Lightweight: 1.2 kg
| Specification | Details |
|---|---|
| Model | FAB-HGT-16LW-1 |
| Material | PC+ABS (UV Resistant) |
| Dimensions (A×B×C) | 290 × 210 × 78 mm |
| Max Splice Capacity | 16 fibers |
| Splitter Support | 2× 1×8 or 1× 1×16 PLC (SC) |
| Adapter Capacity | 16 SC/UPC or SC/APC |
| Mid-Span Cable Port | 1 (10–16.5 mm) |
| Reserved Cable Glands | 2 (8–13.5 mm) |
| Access Type | 180° with 2 buckled locks |
| Weight | 1.2 kg |
| Protection Level | IP65 |
| Color | Black |
