FAB-CPL-01 reusable Connector Protective Lock reinforces SC field-installable connectors on 2×3 mm FTTH drop cable with tool-free, reusable mechanical protection.
Need a custom spec or OEM branding on this product? Talk to our engineering team.
Every batch, before shipment
Manufacturing
Custom specs and branding
Americas, Europe and Africa
The Fibramérica FAB-CPL-01 Connector Protective Lock is a reusable mechanical housing designed to reinforce field-installable SC connectors assembled on 2 × 3 mm FTTH flat drop cable. Installed around the connector body and cable transition, it provides additional mechanical protection against pulling forces, bending stress, accidental unlocking, and handling during installation and maintenance.

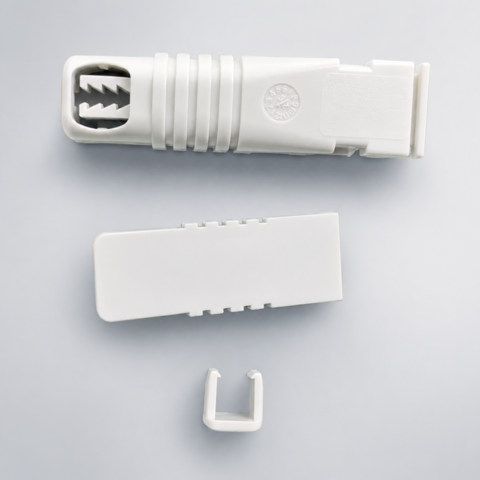

Its innovative two-piece snap-fit construction allows quick installation without adhesives or special tools. The housing can be reopened whenever inspection, connector replacement, or field retermination is required, making it an efficient solution for installers and maintenance teams while preserving the connector’s optical interface.
Unlike permanent protection methods, the FAB-CPL-01 provides a reusable solution that simplifies field operations and helps standardize connector installations across FTTH deployments. Because the protective housing remains external to the ferrule and optical mating surface, it does not interfere with optical performance when properly assembled.
Engineered by Fibramérica, this accessory is ideal for FTTH customer installations, ONU/ONT terminations, optical outlet connections, protected termination boxes, field repair activities, and large-scale connector standardization programs requiring consistent installation quality and long-term mechanical reliability.
| Specification | Details |
|---|---|
| Product Type | Reusable mechanical protective housing for field-installable SC connectors |
| Model | FAB-CPL-01 |
| Housing Material | PC/ABS |
| Compatible Connector Interface | SC/APC and SC/UPC field-installable connectors |
| Compatible Cable | 2 × 3 mm FTTH flat drop cable |
| Nominal Dimensions | 50 × 13 × 12 mm |
| Standard Color | White |
| Optional Customization | Color and logo, subject to technical review and minimum order quantity |
| Assembly Method | Two-piece housing with removable retention clips; no adhesive or special tools required |
| Serviceability | Reopenable and reusable for inspection or retermination |
| Nominal Axial Tensile Resistance | 80 N |
| Operating Temperature | −40°C to +70°C |
| Storage Humidity | 10% to 90% RH (non-condensing) |
| Optical Function | None; mechanical accessory external to the optical interface |
| Environmental Sealing | No independent IP rating; install within the environmental protection provided by the terminal, outlet or enclosure |
| Quality Management | Manufactured under Fibramérica quality-control procedures and ISO 9001 quality-management framework |
FAB-CPL-01, Connector Protective Lock, SC connector protector, SC/APC connector protection, SC/UPC connector protection, FTTH connector accessory, field installable SC connector, FTTH drop cable accessory, reusable connector housing, PC ABS connector housing, connector strain relief, SC connector protection, ONU connector accessory, optical outlet connector protector, fiber optic connector accessory
Our engineering team can confirm compatibility, custom specs and OEM branding options.
