Durable FTTH fiber box Mod. FAB-HGT-16LW-2 with 16 ports, 48F splice capacity, and dual PLC splitter support for outdoor installations.
Need a custom spec or OEM branding on this product? Talk to our engineering team.
Every batch, before shipment
Manufacturing
Custom specs and branding
Americas, Europe and Africa

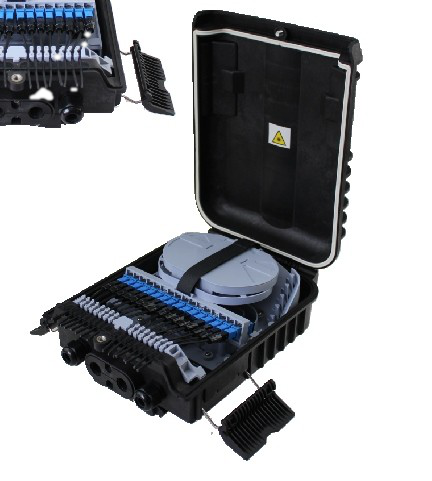

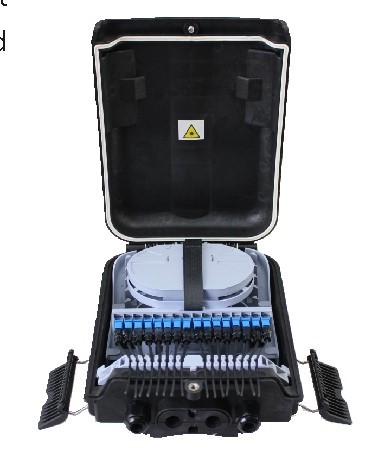

The FAB-HGT-16LW-2 is a robust and weather-resistant fiber termination box designed to connect feeder and drop cables in FTTx networks. Supporting up to 16 subscribers, it combines fiber splicing, splitting, and distribution in a compact IP65-rated enclosure ideal for outdoor, wall-mounted, pole-mounted, or aerial applications.
Constructed with industrial-grade PC+ABS material, the unit withstands UV exposure and harsh conditions. It offers a 48-fiber splice capacity across four trays and accommodates up to 2×1×8 PLC splitters with 16 SC adapter slots. A dual-lock system allows 180° access for easy installation and maintenance, while dedicated cable entrances support both uncut and distributed cable routing.
With a smart internal layout ensuring fiber bend control (>35mm), the FAB-HGT-16LW-2 is a reliable and scalable solution for last-mile fiber deployment.
48 fiber splice capacity (4 trays × 24F)
Supports 2×1×8 PLC splitters (SC)
16 SC/UPC or SC/APC adapter ports
180° opening with dual buckled lock
IP65-rated UV-resistant PC+ABS enclosure
1 mid-span port (10–16.5 mm) + 2 reserved glands (8–13.5 mm)
Bend radius control >35 mm
Easy for maintenance and expansion
Lightweight design (1.2 kg)
| Specification | Details |
|---|---|
| Model | FAB-HGT-16LW-2 |
| Material | PC+ABS (UV Resistant) |
| Dimensions (A×B×C) | 290 × 210 × 78 mm |
| Max Splice Capacity | 48 fibers (4 trays × 24F) |
| Splitter Support | 2× 1×8 PLC (SC) |
| Adapter Capacity | 16 SC/UPC or SC/APC |
| Mid-Span Cable Port | 1 (10–16.5 mm) |
| Reserved Cable Glands | 2 (8–13.5 mm) |
| Fiber Bend Radius | ≥ 35 mm |
| Access Type | 180° with 2 buckled locks |
| Weight | 1.2 kg |
| Protection Level | IP65 |
| Color | Black |
FAB-HGT-16LW-2, fiber termination box, 48F splice box, 16 port FTTH enclosure, IP65 fiber box, SC/APC fiber splitter box
