Compact 16-core fiber termination box with integrated splicing, splitter support, and optimized cable management. Model FAB-HGT-16ZT.
Need a custom spec or OEM branding on this product? Talk to our engineering team.
Every batch, before shipment
Manufacturing
Custom specs and branding
Americas, Europe and Africa
The FAB-HGT-16ZT Fiber Termination Box from Fibramérica offers a high-density, space-efficient solution for FTTX network terminations. Designed for wall-mounted installations, this compact yet versatile enclosure is ideal for managing fiber splicing, splitting, and distribution within limited spaces.
Manufactured from robust PC+ABS material and rated IP65, the FAB-HGT-16ZT is built to withstand outdoor conditions while protecting fiber connections from dust, moisture, and mechanical damage. Its design incorporates integrated splice cassettes, a cable management system, and bend radius control of over 40mm, ensuring network performance and reducing signal loss.

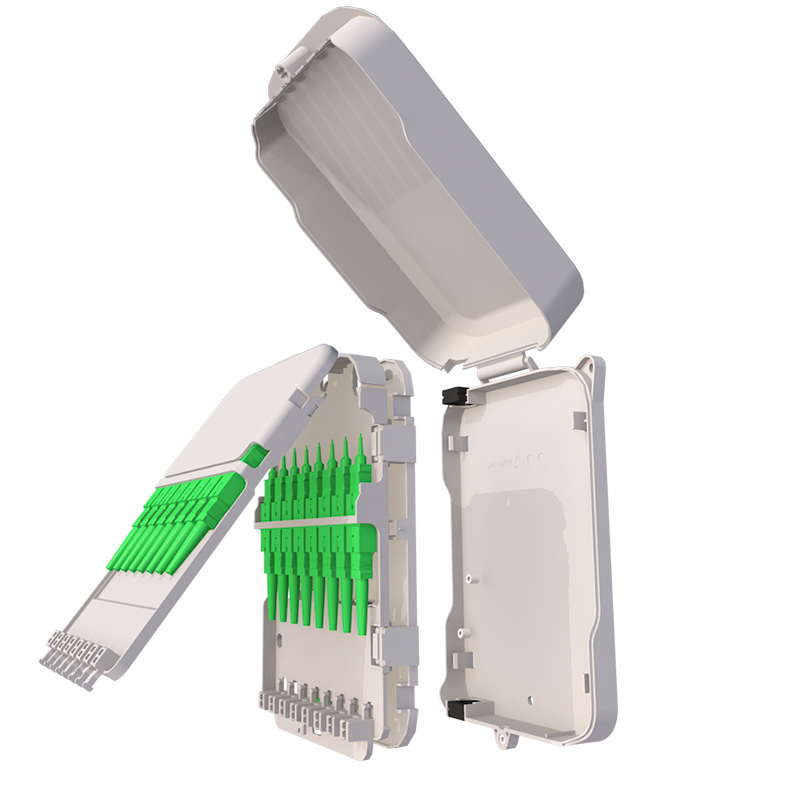

This model supports the installation of up to two 1×8 micro-type PLC splitters, making it highly adaptable for various network configurations. The splicing trays are designed for convenience, extending to a self-locking position of 120 degrees for easier access during installation and maintenance.
The FAB-HGT-16ZT is ideal for FTTH deployments, providing up to 16 ports for 2–5mm distribution cables and accommodating feeder cables up to 16mm in diameter. It’s a perfect choice for telecom operators, ISPs, and integrators seeking a compact, efficient, and reliable fiber management solution.
Supports up to 16 fiber terminations in a compact design
Integrated splice cassette and cable management system
Fiber bend radius control greater than 40mm
Compatible with up to 2× 1×8 micro-type PLC splitters

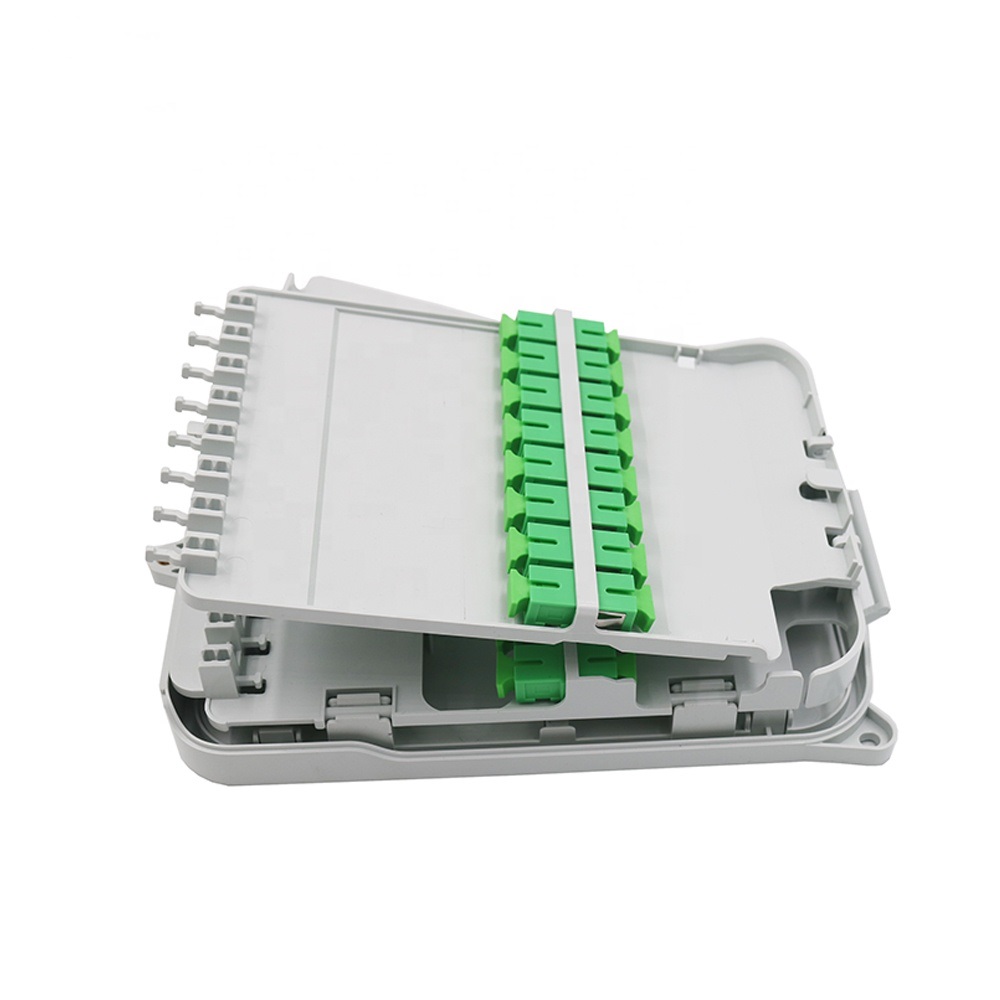

Splicing trays extend to a 120° self-locking position
Rotatable adapter for flexible cable routing

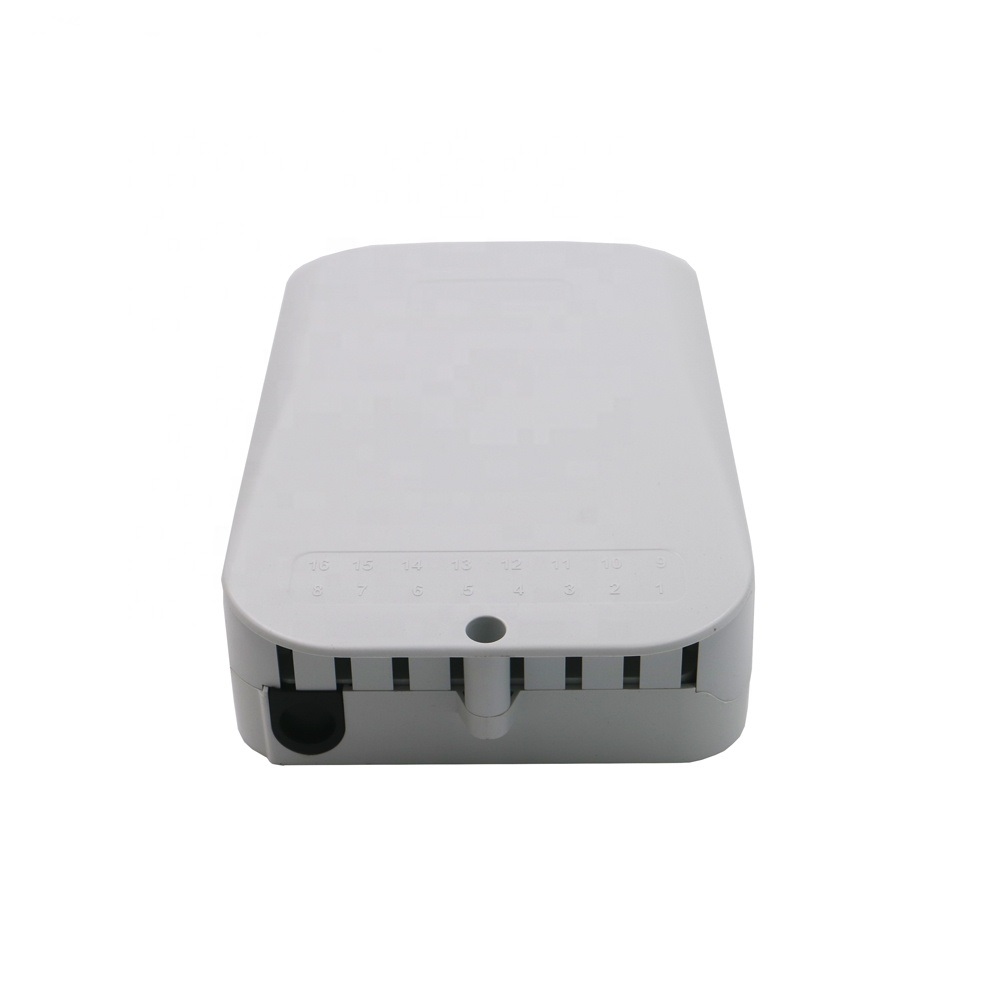

16 ports for 2–5mm drop cables and 2 inputs for Ø16mm feeder cables
IP65-rated PC+ABS construction for indoor/outdoor use

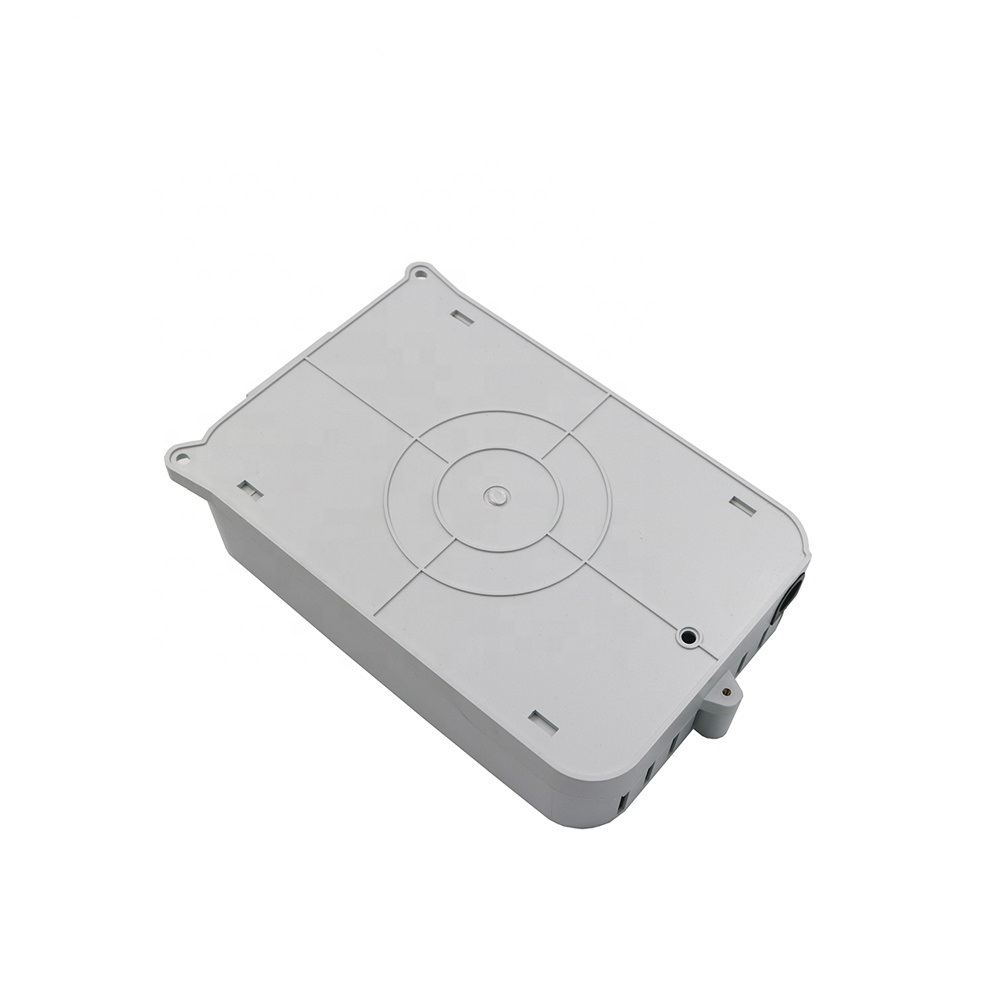

Optimized for wall-mounted installations
Durable and weather-resistant for long-term performance
| Specification | Details |
|---|---|
| Model | FAB-HGT-16ZT |
| Material | PC+ABS |
| Size (W×H×D) | 200 × 130 × 55 mm |
| Max Capacity Splicing | 16 cores |
| Max Output Cable Size | 16 × (2–5 mm) |
| Max Input Cable Size | 2 × Ø16 mm |
| PLC Splitter Support | 2 × 1×8 Micro-type |
| Bend Radius Control | >40 mm |
| Tray Opening Angle | 120° self-locking |
| IP Level | IP65 |
Our engineering team can confirm compatibility, custom specs and OEM branding options.
