The FIBRAMÉRICA FAB-HY-90 Fiber Optic Polishing Machine is a compact 3-in-1 solution for fiber connector polishing, UV curing and end-face inspection. Designed for SC, FC and LC connectors with UPC/APC configurations, it combines fast processing, 252× inspection and portable battery-powered operation for FTTH, data center, telecom and field maintenance applications.
Need a custom spec or OEM branding on this product? Talk to our engineering team.
Every batch, before shipment
Manufacturing
Custom specs and branding
Americas, Europe and Africa
The FIBRAMÉRICA FAB-HY-90 Fiber Optic Polishing Machine is a compact professional platform developed for the production, termination, inspection and repair of fiber optic connectors. By integrating polishing, UV curing and end-face inspection into a single unit, it centralizes the key stages of connector preparation and reduces the need for multiple standalone devices at the workstation or in the field.
Designed to work with SC, FC and LC connectors, the FAB-HY-90 supports both UPC and APC end-face configurations according to the installed fixture. Its standard operating cycle combines approximately 80 seconds of polishing, 12 seconds of UV curing and 252× optical inspection, providing technicians with a fast and structured workflow for connector processing.

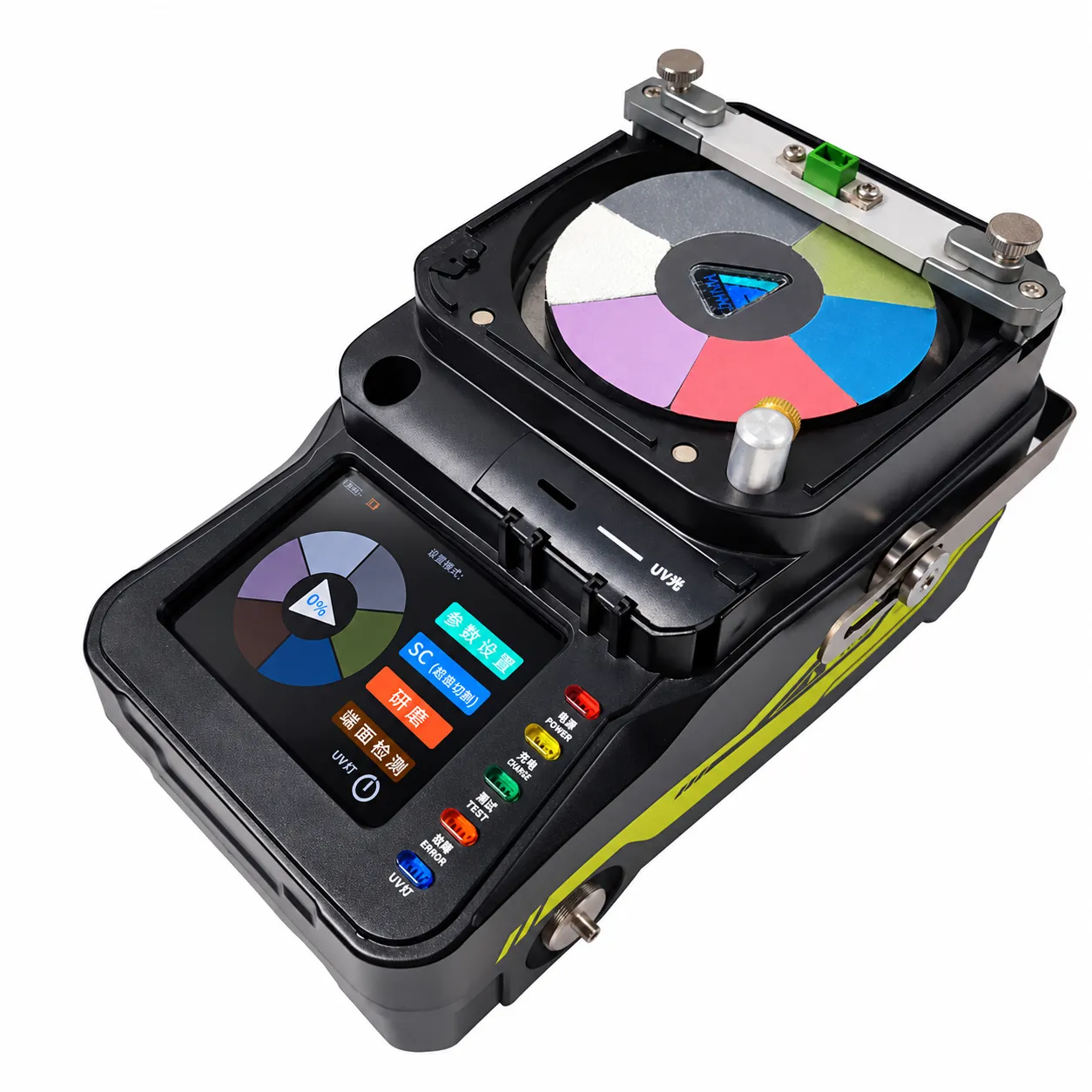

The integrated 3.5-inch IPS display and end-face detection system allow technicians to inspect the finished connector directly on the machine and adjust image focus when necessary. The equipment also incorporates replaceable connector clamps, a polishing disc, UV curing area, clean-water reservoir and waste-water collection system in a compact integrated architecture.
After polishing, the connector can be immediately inspected to verify the condition of the fiber end face. If the result is not satisfactory, the FAB-HY-90 includes a dedicated one-click repair function that allows the connector to be reprocessed without rebuilding it from the beginning, with an approximate repair cycle of 45 seconds.
The system is suitable for a wide range of professional fiber applications, including FTTH/FTTX deployment, data center rectification, 5G installation, patch cord preparation and general connector end-face repair. Standard configurations include SC-UPC, LC-UPC and FC-UPC clamps, while APC and ST fixtures are available as optional accessories for broader deployment requirements.
With dimensions of only 209 × 123 × 104 mm, a weight of approximately 2.3 kg and rechargeable battery operation, the FAB-HY-90 is designed for both workshop and field use. An internal battery is supplied as standard, while an optional external battery can extend operating autonomy for technicians working on installations where continuous access to AC power may be limited.
3-in-1 Fiber Processing Platform
Integrates fiber polishing, UV curing and end-face inspection in one compact professional system.

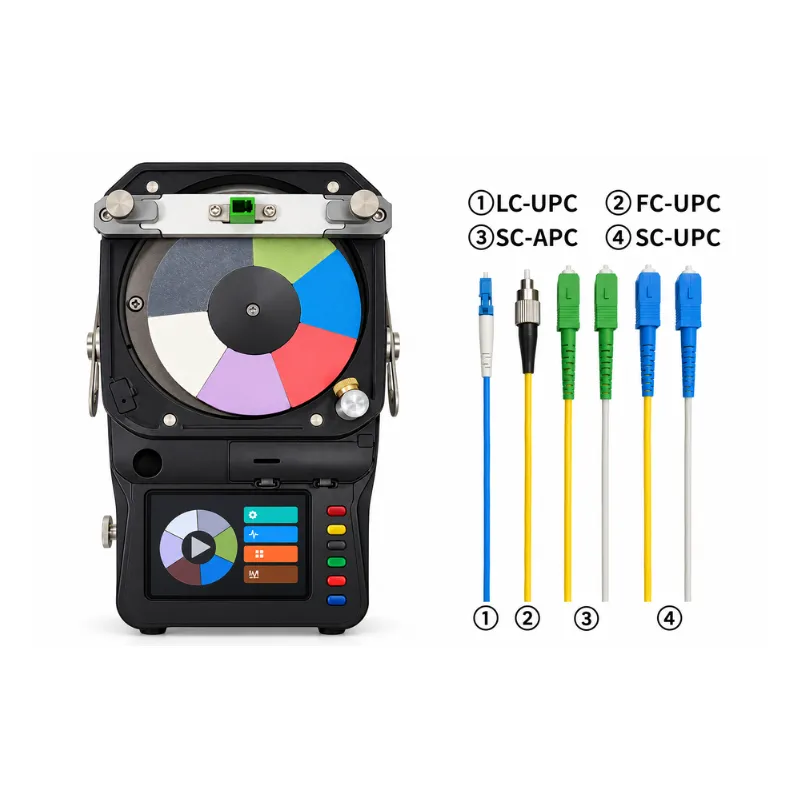

SC, FC & LC Connector Support
Compatible with SC, FC and LC polishing modes, using interchangeable fixtures for different connector configurations.
UPC & APC Polishing Capability
Supports both UPC and APC fiber connector end-face configurations according to the installed fixture.
Fast 80-Second Polishing Cycle
Designed for efficient connector processing with an approximate polishing time of 80 seconds.
Integrated 12-Second UV Curing
Built-in UV curing enables connector preparation without requiring a separate curing device.
252× End-Face Inspection
Integrated optical inspection with 252× magnification allows technicians to evaluate connector end-face quality directly on the machine.
One-Click End-Face Repair
Defective connector end faces can be reprocessed using the dedicated repair function, with an approximate 45-second repair cycle.
3.5-Inch IPS Display
Integrated display provides the operating interface and real-time visualization for fiber end-face inspection.
Integrated Water Management System
Separate clean-water and waste-water reservoirs support the polishing process and help maintain an organized working environment.
Portable Battery-Powered Operation
Compact 2.3 kg construction with an internal rechargeable battery and optional external battery for field and workshop use.
3.5” IPS screen with 340×240 resolution
Water tank system for automated cleaning (30ml/25ml)
Rugged, portable design with included carrying kit
| Specification | Details |
|---|---|
| General | |
| Model | FAB-HY-90 |
| Integrated Functions | Fiber polishing, UV curing and end-face inspection |
| Supported Connectors | SC / FC / LC |
| End-Face Types | UPC / APC |
| Processing Performance | |
| Polishing Time | Approx. 80 seconds |
| UV Curing Time | Approx. 12 seconds |
| End-Face Repair Time | Approx. 45 seconds |
| Abrasive Paper Life | ≥ 30 polishing cycles |
| Optical Performance & Inspection | |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 45 dB |
| Inspection Magnification | 252× |
| Inspection Focus | Adjustable focus control |
| Display & Interface | |
| Display | 3.5″ IPS |
| Screen Resolution | 340 × 240 |
| Power & Battery | |
| Internal Battery | 3,400 mAh rechargeable battery |
| External Battery | 7,800 mAh — Optional |
| Charger Input | AC 100–240 V, 50/60 Hz, 1.5 A |
| Charger Output | DC 12.6 V |
| Integrated Water System | |
| Clean Water Tank | 30 ml |
| Waste Water Tank | 25 ml |
| Connector Fixtures | |
| Standard Fixtures | SC-UPC / LC-UPC / FC-UPC |
| Optional Fixtures | SC-APC / LC-APC / FC-APC / ST |
| Environmental & Physical | |
| Operating Temperature | -15°C to +50°C |
| Dimensions | 209 × 123 × 104 mm |
| Weight | 2.3 kg |
