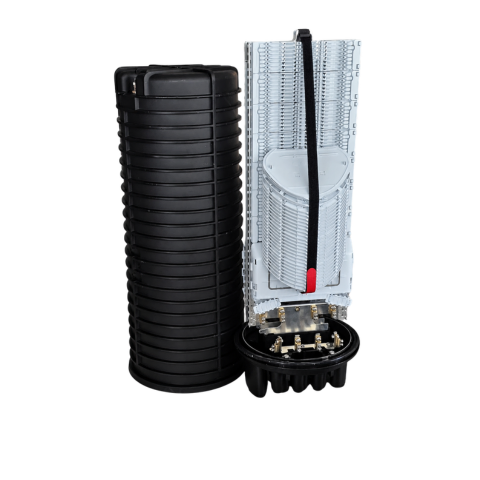

Fiber Joint Closure | Mod. FAB-OFC-M4AX-RI
FAB-OFC-M4AX-RI Fiber Joint Closure provides up to 672 fiber splices with rugged heat-shrink sealing for aerial, pole, pipeline, and direct-buried FTTH networks.
- Description
- Features
- Technical Specifications
Description
The FAB-OFC-M4AX-RI Fiber Joint Closure is engineered to provide reliable protection and organization for high-capacity optical fiber splicing in demanding outdoor telecommunications networks. Designed for aerial, pole-mounted, pipeline, wall-mounted, and direct-buried installations, it delivers dependable environmental sealing and long-term mechanical protection for backbone and distribution fiber cables.
Manufactured from high-strength polypropylene (PP) with UV-resistant and anti-aging additives, the enclosure withstands harsh environmental conditions while maintaining excellent structural integrity. Its single-ended dome design simplifies installation and maintenance, allowing repeated opening without requiring special tools. Heat-shrink cable sealing and a silicone rubber sealing ring provide dependable environmental protection against moisture and contaminants.
Supporting up to 672 fiber splices distributed across 12 splice trays, the FAB-OFC-M4AX-RI is well suited for high-density FTTH, FTTx, metropolitan, and backbone optical networks. The closure also incorporates robust mechanical performance, including resistance to tensile loads, vibration, impact, twisting, and bending, helping maintain optical performance under demanding field conditions.
As part of the Fibramérica portfolio, the FAB-OFC-M4AX-RI offers a dependable solution for network operators, contractors, and ISPs seeking durable fiber splice protection, simplified field maintenance, and scalable capacity for modern fiber optic deployments.
Features
- Supports up to 672 optical fibers
- Accommodates 12 splice trays
- High-strength UV-resistant polypropylene housing
- Heat-shrink cable sealing system
- Silicone rubber sealing ring
- Single-ended dome design for easy maintenance
- Suitable for aerial, pole, wall, pipeline and direct-buried installations
- Excellent mechanical impact and tensile resistance
- Re-openable design without special tools
- Designed for trunk and high-capacity fiber cable protection
Technical Specifications
| Specification | Details |
|---|---|
| Model | FAB-OFC-M4AX-RI |
| Product Type | Fiber Joint Closure |
| Dimensions (H × D) | 679 × 277 mm |
| Material | Polypropylene (PP) |
| Cable Ports | 1 Oval + 16 Round |
| Oval Port Size | 90 × 31 mm |
| Round Port Size | 21 mm / 16 mm |
| Maximum Splice Trays | 12 |
| Maximum Fiber Capacity | 672 Fibers |
| Sealing Method | Heat-shrink sealing |
| Installation | Wall, Pole, Aerial, Pipeline, Direct-buried |
| Operating Temperature | -40°C to +65°C |
| Atmospheric Pressure | 70–106 kPa |
| Fiber Curvature Radius | >30 mm |
| Additional Fiber Attenuation | ≤0.01 dB |
