The FAB‑Q9227I is a high-density GPON OLT with 16 PON ports, 4×10GE uplinks, and 148 Gbps switching capacity — ideal for FTTH, FTTB, and FTTO network solutions.
Need a custom spec or OEM branding on this product? Talk to our engineering team.
Every batch, before shipment
Manufacturing
Custom specs and branding
Americas, Europe and Africa

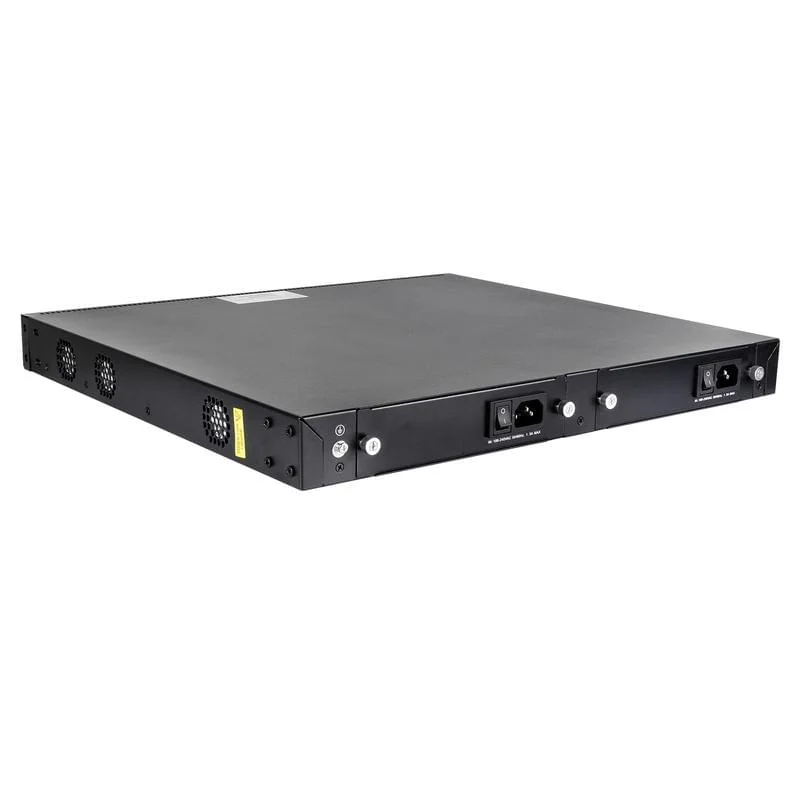

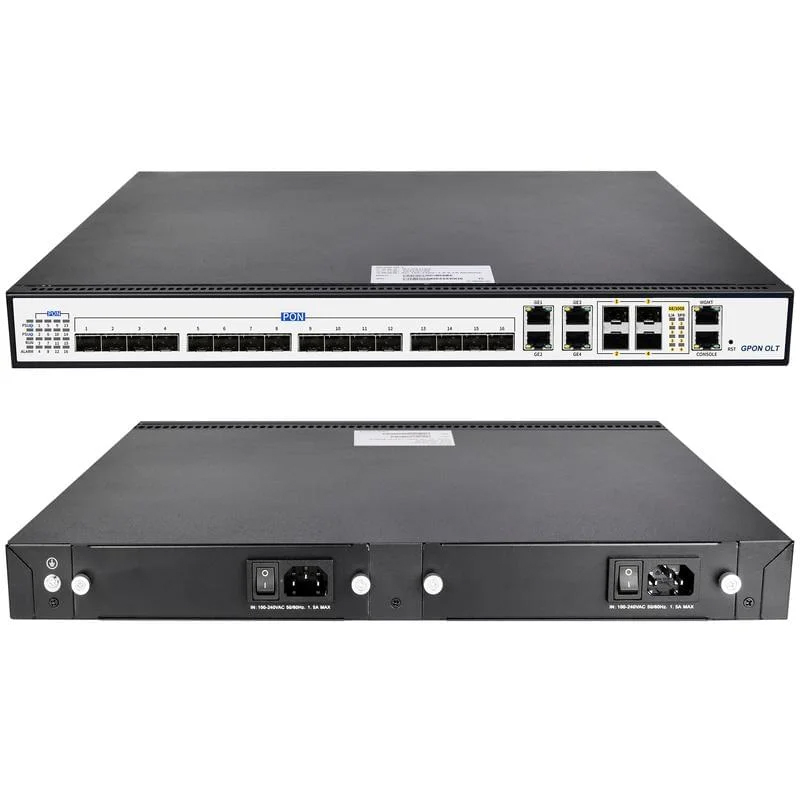

The FAB‑Q9227I is a compact and flexible GPON OLT designed for large-scale FTTH, FTTB, and FTTO deployments. With a 19-inch 1U rack-mounted form factor, it offers high port density and energy-efficient performance, delivering up to 148 Gbps switching capacity.
This model features 16× GPON ports (1.25/2.5 Gbps), 4× 10GE SFP+ uplink ports, and 4× 1GE RJ45 uplinks. It supports a 1:128 split ratio, enabling connection of up to 2048 ONU users simultaneously. Its hybrid compatibility with various ONU types makes it ideal for triple-play services, corporate LANs, surveillance, and IoT scenarios.
Advanced features include full Layer 2 and Layer 3 routing, BGP, MPLS, RIP, and IPv4/IPv6 dual-stack support. It offers extensive security, QoS, multicast, and VLAN capabilities along with multiple redundancy options (dual AC, dual DC, AC+DC). Remote management is supported via CLI, SNMP v1/v2/v3, Telnet, Web, and NMS2000.
16× GPON ports (ITU-T G.984.x compliant)
4× 10GE SFP+ uplinks + 4× 1GE RJ45 ports
148 Gbps switching capacity
Supports 1:128 split ratio, up to 2048 ONUs
Dual AC/DC pluggable power supply options
BGP, MPLS, RIP routing protocols
4K VLANs, QinQ, MAC/IP/VLAN/Port binding
IGMP v1/v2/v3 snooping, proxy, filtering
Full QoS with SP/WRR scheduling, 802.1P, DSCP
Security: DoS protection, ARP defense, ACL filtering
Remote management via CLI, Telnet, Web, SNMP, NMS2000
| Specification | Details |
|---|---|
| Model | FAB‑Q9227I |
| GPON Ports | 16× SC/PC (1.25G up / 2.5G down) |
| Uplink Ports | 4× 10GE SFP+ + 4× 1GE RJ45 |
| Split Ratio | 1:128 |
| Max ONU Support | 2048 ONUs |
| Switching Capacity | 148 Gbps |
| Redundancy | Dual AC/DC/AC+DC (pluggable) |
| VLAN | 4K VLANs, QinQ, Selective QinQ |
| Routing | BGP, RIP, MPLS, static routing |
| Multicast | IGMP v1/v2/v3, snooping, proxy |
| QoS | 802.1P, DSCP, PQ, WRR, CAR |
| Security | DoS, ARP spoofing/flooding defense, MAC/IP/VLAN binding |
| Management | CLI, Telnet, Web, SNMP v1/v2/v3, NMS2000 |
| Power Input | 100–240 VAC, 36–75 VDC (optional) |
| Power Consumption | <84 W |
| Dimensions | 440 × 400 × 44 mm |
| Weight | <6.5 kg |
| Operating Temp. | 0 °C to +45 °C | RH 10%–90% |
| Storage Temp. | –10 °C to +70 °C | RH 10%–90% |
