The FAB‑H432AX is a 1GE + 3FE XPON ONU with VoIP, 2.4 GHz Wi-Fi, and advanced Layer 2/3 functions — ideal for cost-effective FTTH deployments.
Need a custom spec or OEM branding on this product? Talk to our engineering team.
Every batch, before shipment
Manufacturing
Custom specs and branding
Americas, Europe and Africa
The FAB‑H432AX is a compact and efficient XPON ONU designed for FTTH applications requiring balanced performance, low power consumption, and comprehensive triple-play support. It is compatible with both GPON and EPON networks, switching modes automatically based on OLT detection.
Equipped with 1 Gigabit + 3 Fast Ethernet ports, a 2.4 GHz Wi-Fi interface, VoIP port, and USB, the FAB‑H432AX supports wireless speeds up to 300 Mbps, broadcast of up to 4 SSIDs, and a wide range of Layer 2/3 features including NAT, routing, firewall, VLAN, IGMP snooping, and QoS scheduling.

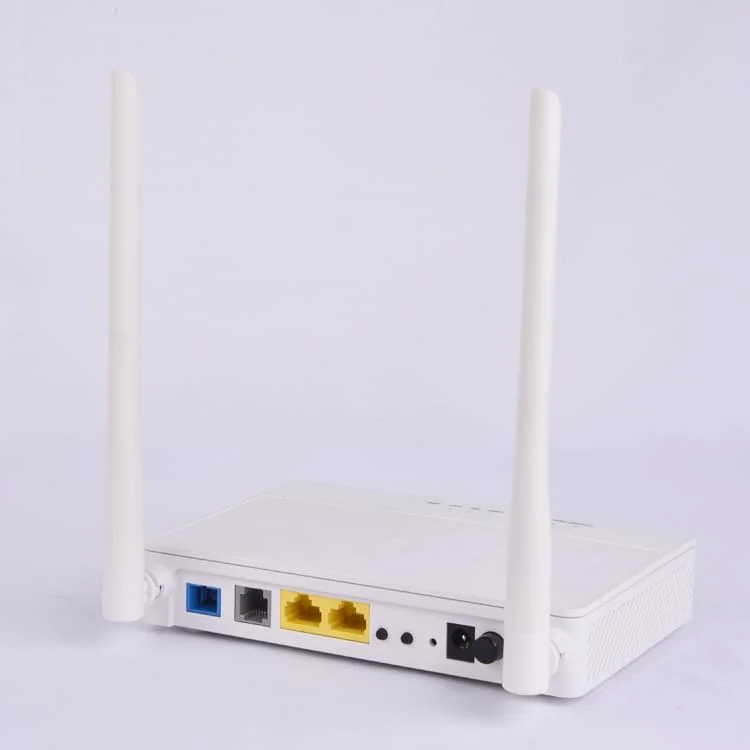

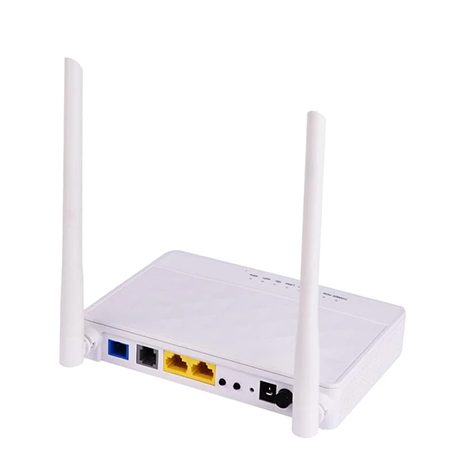

The device supports TR-069, OMCI, and OAM remote management, making it easy to configure and monitor. Its external 5 dBi 2×2T2R antennas provide solid signal coverage for home and office environments, while its plastic casing ensures lightweight deployment.
XPON (GPON/EPON) auto-detection
1GE + 3FE LAN ports, 1 VoIP port, 1 USB
2.4 GHz Wi-Fi up to 300 Mbps, 2× external 5 dBi antennas
SIP VoIP with full codec support and GR-909 compliance
NAT, Bridge, Static IP, PPPoE, DHCP
Layer 2 switching: VLAN 802.1Q, 802.1P QoS, Spanning Tree
Multicast: IGMP proxy/snooping, MLD support
Dual-stack IPv4/IPv6 routing
Remote management: TR-069, OMCI, OAM
Dimensions: 192 × 148 × 35 mm | Power <10 W
| Specification | Details |
|---|---|
| Model | FAB‑H432AX |
| PON Interface | 1× SC/APC (XPON) |
| Transmission Rate | GPON: 2.488 Gbps down / 1.244 Gbps up | EPON: 1.244 Gbps symmetric |
| LAN Ports | 1× GE + 3× FE RJ45 |
| VoIP | 1× RJ11 (SIP, GR-909) |
| Wi-Fi | 2.4 GHz IEEE 802.11 b/g/n |
| Wi-Fi Speed | 300 Mbps (2T2R, 2 external 5 dBi antennas) |
| SSID Support | Up to 4 SSIDs |
| Management | TR-069, OMCI, OAM, HTTP, Telnet |
| QoS | PQ, WRR, CAR queue scheduling |
| Power Supply | 12V DC, 1.5A |
| Power Consumption | <10 W |
| Dimensions | 192 × 148 × 35 mm |
| Operating Temp. | –10 °C to +45 °C | RH 5%–95% |
