Round preconnectorized cable

Fibramérica’s 5mm SC/APC preconnectorized drop cable offers IP-rated, tool-free FTTH/FTTx deployment up to 80 meters.

Need a custom spec or OEM branding on this product? Talk to our engineering team.

Factory Tested

Every batch, before shipment

ISO-9001

Manufacturing

OEM Available

Custom specs and branding

Global Delivery

Americas, Europe and Africa

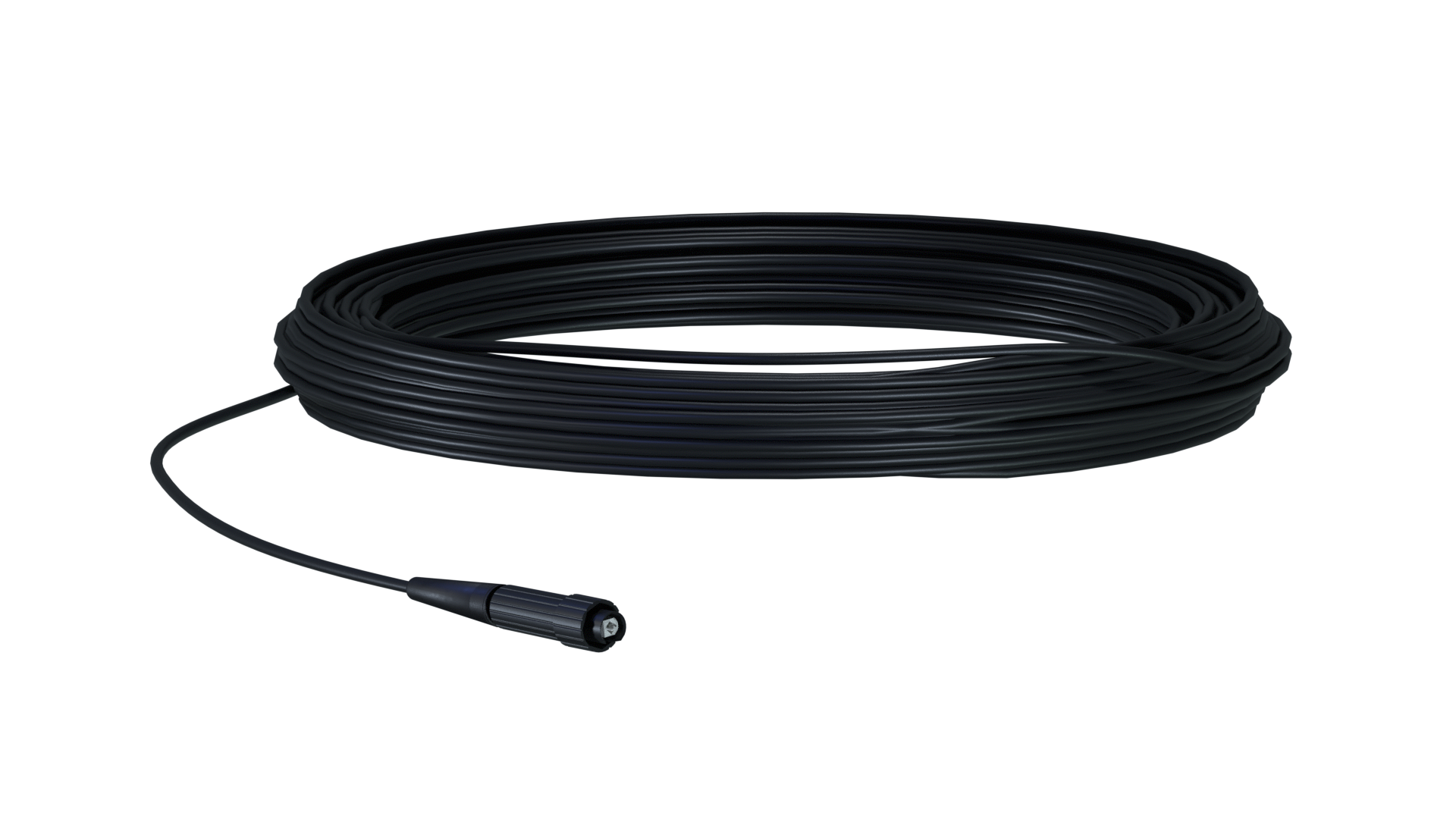

Fibramérica’s 5mm Preconnectorized Optical Fiber Cable redefines speed, safety, and flexibility in fiber deployments. Designed for the most demanding FTTx and FTTH network environments, this factory-terminated round cable integrates SC/APC connectors on one or both ends, allowing for plug-and-play installation without opening terminal boxes or requiring splicing.

Its robust structure includes a UV-resistant HDPE outer jacket, thermally stable dielectric materials, and an internal gel barrier for moisture resistance—making it perfect for aerial, conduit, or duct applications. Internally, aramid yarn and FRP rods provide superior tensile and crush resistance while maintaining lightweight flexibility.

This cable is available in G657A1 or G657A2 fiber configurations, providing outstanding bend tolerance and signal integrity. With length options up to 80 meters, it supports quick activation, easy network upgrades, and reduced operational costs.

Eco-conscious and safety-compliant, the inner LSZH (Low Smoke Zero Halogen) layer ensures performance both indoors and outdoors, while reinforced SC/APC connectors ensure stability and optimal optical return loss under harsh conditions.

  • Preassembled SC/APC connectors for plug-and-play deployment

  • Supports aerial, duct, and conduit installations

  • Max span: 80 meters with rugged, moisture-blocking gel core

  • Dual fiber configuration: G657A1 or G657A2

  • LSZH inner jacket for indoor/outdoor safety compliance

  • Reinforced with FRP rods and aramid yarn for mechanical strength

  • UV-stable HDPE jacket for long-term outdoor use

  • Operational temperature: -20°C to +60°C

  • Custom lengths and connector options available

Specification Details
Model FAB-PCBL-5MM
Fiber Type G657A1 / G657A2
Connector Type SC/APC (IEC 61754-4 compliant)
Outer Jacket UV-resistant HDPE
Inner Jacket LSZH
Cable Diameter 5mm
Maximum Length 80 meters (customizable)
Reinforcement FRP + Aramid Yarn
Operating Temperature -20°C to +60°C
Environmental Protection Moisture-blocking gel, UV-proof
Compliance IEC Standards, LSZH certified
