Compact IP65-rated FTTH box Mod. FAB-HGT-6B with 6 pre-connected ports and 12-core splice capacity for indoor/outdoor fiber terminations.
Need a custom spec or OEM branding on this product? Talk to our engineering team.
Every batch, before shipment
Manufacturing
Custom specs and branding
Americas, Europe and Africa

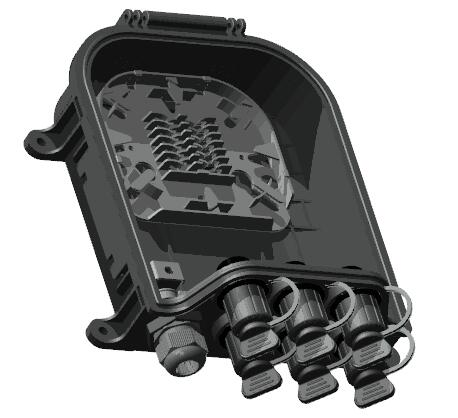

The FAB-HGT-6B from Fibramérica is a compact preconnectorized FTTH box designed to deliver efficient fiber splicing and distribution for modern FTTX networks. Ideal for confined spaces, this enclosure supports 6 SC/APC ports and accommodates up to 12 fusion splices, making it a practical solution for residential and small-scale commercial deployments.
Made from high-resistance PP or PC+ABS, the FAB-HGT-6B features an IP65-rated design that offers reliable protection against water and dust ingress. It is suitable for wall, pole, or aerial mounting, providing flexibility for indoor and outdoor environments.

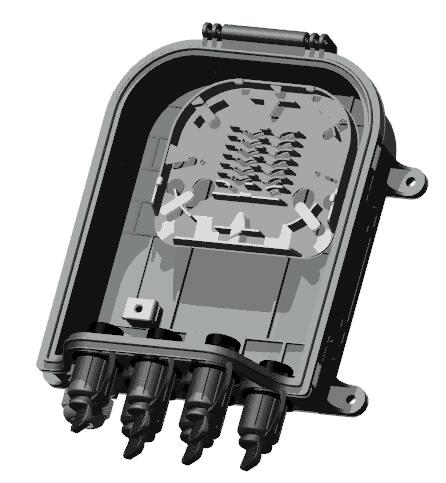

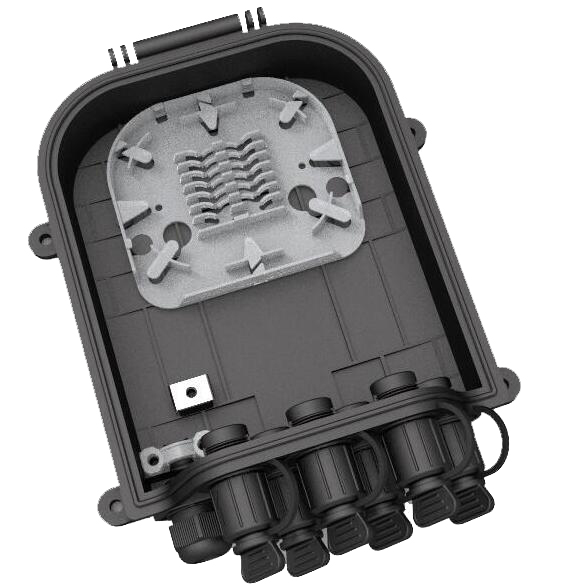

Internally, the box integrates a cable routing system that maintains a bend radius greater than 40 mm, and ensures optimal optical performance with insertion loss ≤0.2 dB and high return losses (≥50 dB UPC, ≥60 dB APC). With a tested mechanical lifespan of over 1,000 connection cycles, the FAB-HGT-6B provides long-term stability and easy field maintenance.
Its lightweight construction (0.3 kg) and dimensions (198 × 168 × 78 mm) make it ideal for installations where space is at a premium but reliability and quality cannot be compromised.
IP65-rated for protection against water and dust
Compact design: 198 × 168 × 78 mm
Supports 6 SC/APC preconnectorized ports
Up to 12-core fusion splicing capacity
High mechanical life: >1000 insertion/extraction cycles
Insertion loss ≤0.2 dB; return loss ≥50 dB (UPC), ≥60 dB (APC)
Maintains fiber bend radius > 40 mm
Lightweight: only 0.3 kg
Suitable for wall, pole, and aerial mounting
Ideal for FTTH network terminations
| Specification | Details |
|---|---|
| Model | FAB-HGT-6B |
| Material | PP or PC+ABS |
| Dimensions | 198 × 168 × 78 mm |
| Splicing Capacity | 12 cores |
| Ports | 6 SC/APC preconnectorized |
| Bend Radius | > 40 mm |
| Insertion Loss | ≤0.2 dB |
| Return Loss | ≥50 dB (UPC), ≥60 dB (APC) |
| Protection Level | IP65 |
| Weight | 0.3 kg |
| Installation | Wall, Pole, Aerial |
FAB-HGT-6B, 6-port FTTH box, IP65 fiber termination box, compact optical splitter box, preconnectorized SC box, mini fiber enclosure, FTTX distribution
