Fibramérica’s FAB‑GJYFXTH_G is a dielectric access fiber optic cable designed for outdoor deployments where flame retardancy and safe installation are priorities. Featuring Ø250 µm fibers in a loose tube filled with waterproof compound, it ensures fiber protection and signal integrity under varying environmental conditions.

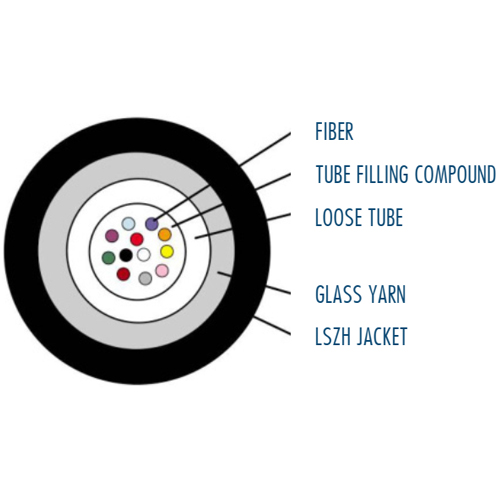

Its construction is fully non-metallic, using glass yarns as strength members and an LSZH (Low Smoke Zero Halogen) outer sheath that enhances fire safety without compromising mechanical performance. This makes it an excellent choice for FTTH access networks, outdoor ducts, and building entry points.
The cable’s reduced weight, flexibility, and small diameter allow for faster and more efficient installations. Its resistance to crush, tensile stress, and moisture makes it a reliable solution for modern telecommunications networks requiring high safety and performance standards.
Compliant with global certifications and built for long delivery lengths, the FAB‑GJYFXTH_G combines safety, durability, and ease of deployment.
All-dielectric design with glass yarn reinforcement
Flame-retardant LSZH outer sheath for fire safety
Ø250 µm fibers in hydrolysis-resistant loose tube
Water-blocking compound for moisture protection
Lightweight and compact for easy outdoor installation
Crush resistance and tensile durability
Ideal for FTTH, building access, and outdoor duct applications
Fully compliant with international fiber optic standards
| Specification | Details |
|---|---|
| Model | FAB‑GJYFXTH_G |
| Fiber Count | 2–24 fibers |
| Cable Diameter | 6.0–6.5 ± 0.3 mm |
| Cable Weight | 43–48 kg/km |
| Tensile Strength | 200/660 N (2–12F), 400/1320 N (14–24F) |
| Crush Resistance | 300/1000 N/100mm |
| Bending Radius | 10D/20D (Dynamic/Static) |
| Operating Temperature | −20°C to +60°C |
| Installation Temperature | −50°C to +50°C |
| Standards | YD/T1258.4, ICEA-596, GR-409, IEC 60794, IEC 332-1/3C |
