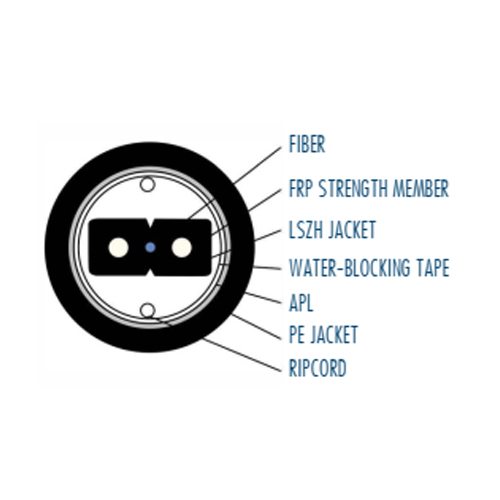

The FAB-GJXFHA bow-type drop cable is a robust and highly practical fiber optic cable designed for duct installations in outdoor environments. Its central optical fiber unit is reinforced with two parallel Fiber Reinforced Plastics (FRP), providing outstanding mechanical protection and crush resistance.
Engineered with a special low-bend-sensitivity fiber, this cable delivers high bandwidth and ensures stable communication transmission, making it ideal for high-performance networks. Its light weight and simple structure contribute to easier handling, stripping, and splicing, significantly simplifying installation and maintenance.

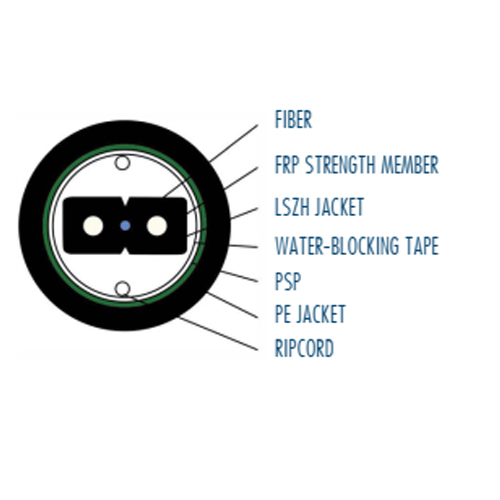

The LSZH (Low Smoke Zero Halogen) sheath not only enhances safety by reducing toxic emissions in case of fire but also offers flame retardant capabilities. The inclusion of APL and PSP layers further boosts moisture resistance, extending the lifespan of the cable under harsh conditions.
Ideal for FTTH networks, last-mile deployments, and outdoor ISP infrastructures, the FAB-GJXFHA is a reliable choice for delivering fiber connectivity in environments where duct-based routing is essential.
• Low-bend-sensitivity fiber for high bandwidth and signal quality
• Dual FRP strength members for enhanced crush resistance
• Lightweight and practical structure for easy handling
• Innovative flute design simplifies stripping and splicing
• LSZH flame-retardant and non-toxic sheath
• APL and PSP layers for superior moisture protection
• Compliant with YD/T1997-2009, ICEA-596, GR-409, IEC60794 standards
| Specification | Details |
|---|---|
| Model | FAB-GJXFHA |
| Fiber Count | 1 / 2 / 4 / 6 |
| Cable Size | Ø7.0 mm |
| Cable Weight | 49 kg/km |
| Tensile Strength | 300N (long term) / 600N (short term) |
| Crush Resistance | 1000N (long term) / 2200N (short term) |
| Bending Radius | 10D (dynamic) / 20D (static) |
| Outer Sheath | LSZH (black or colored) |
| Standards | YD/T1997-2009, ICEA-596, GR-409, IEC60794 |
