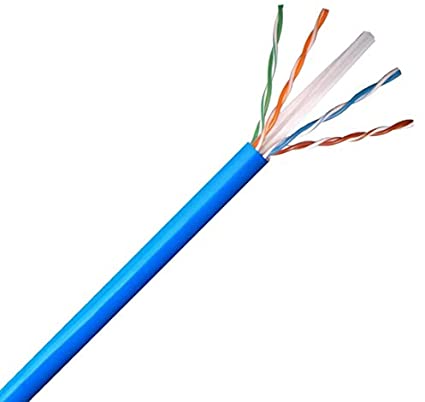

The CAT6 FTP LAN Cable is engineered for high-performance Ethernet networks, delivering superior bandwidth and minimal interference for demanding applications. Built with AWG 23 bare copper conductors and 4 twisted pairs, this cable ensures exceptional conductivity, low DC resistance, and optimal signal quality across long distances.
Its construction features PE insulation with a precision PE cross separator, AL shielding, and a robust PVC jacket for enhanced durability. The FTP (Foil Twisted Pair) design significantly reduces electromagnetic interference (EMI) and crosstalk, meeting IEC 61156-6 standards for CAT6 cables. This ensures excellent NEXT, PS NEXT, ELFEXT, and PS ELFEXT performance in network environments up to 250 MHz.
With a nominal outer diameter of 7.2 mm, this cable offers strong mechanical protection without compromising flexibility. It is ideal for use in structured cabling systems for offices, data centers, and industrial applications where consistent performance and reliability are critical.
The CAT6 FTP LAN Cable delivers stable impedance, high insulation resistance, and superior propagation delay performance, making it the go-to solution for high-speed data transmission, VoIP, and video streaming over Ethernet.
Category 6 FTP (Foil Twisted Pair) cable
Bare copper conductor, AWG 23 (0.57 mm)
4 twisted pairs with PE insulation and cross separator
AL shielding for enhanced EMI protection
PVC jacket for durability
Frequency range up to 250 MHz
Meets IEC 61156-6 CAT6 performance standards
High insulation resistance and low DC resistance
Suitable for structured cabling in offices, data centers, and industrial networks
| Specification | Details |
|---|---|
| Model | cat6-ftp-lan-cable |
| Category | CAT6 FTP |
| Conductor | Bare Copper, AWG 23 (0.57 mm) |
| Pairs | 4 twisted pairs (8 cores) |
| Insulation | PE, 0.305 mm thickness, diameter 1.16–1.18 mm |
| Separator | PE Cross |
| Shield/Braid | AL/16/5/0.12T |
| Overlap | 25% / 60% |
| Drain Wire | 1/0.5T |
| Jacket | PVC, 0.6 mm thickness |
| Outer Diameter | 7.2 mm ±0.2 |
| Max DC Resistance | 138 Ω/km |
| Min Insulation Resistance | 100 MΩ/km |
| Dielectric Strength | AC 500V/1 min, no breakdown |
| DC Resistance Unbalance | Max 2% |
| Capacitance Unbalance | Max 330 pF/100 m |
| Characteristic Impedance | 100 ±15 Ω (4–100 MHz), 100 ±22 Ω (100–250 MHz) |
| Nominal Velocity of Propagation | 68 ±2% |
| Propagation Delay @100 MHz | ≥537.6 ns/100 m |
| Delay Skew | Max ≥45 ns/100 m |
| Frequency Range | Up to 250 MHz |
| Color Code | P1: Blue & White, P2: Orange & White, P3: Green & White, P4: Brown & White |
