The FAB‑829YS is a dual-band XPON ONT with 2GE, VoIP, CATV, and Wi-Fi AC1200 — ideal for residential FTTH triple-play applications.
Need a custom spec or OEM branding on this product? Talk to our engineering team.
Every batch, before shipment
Manufacturing
Custom specs and branding
Americas, Europe and Africa

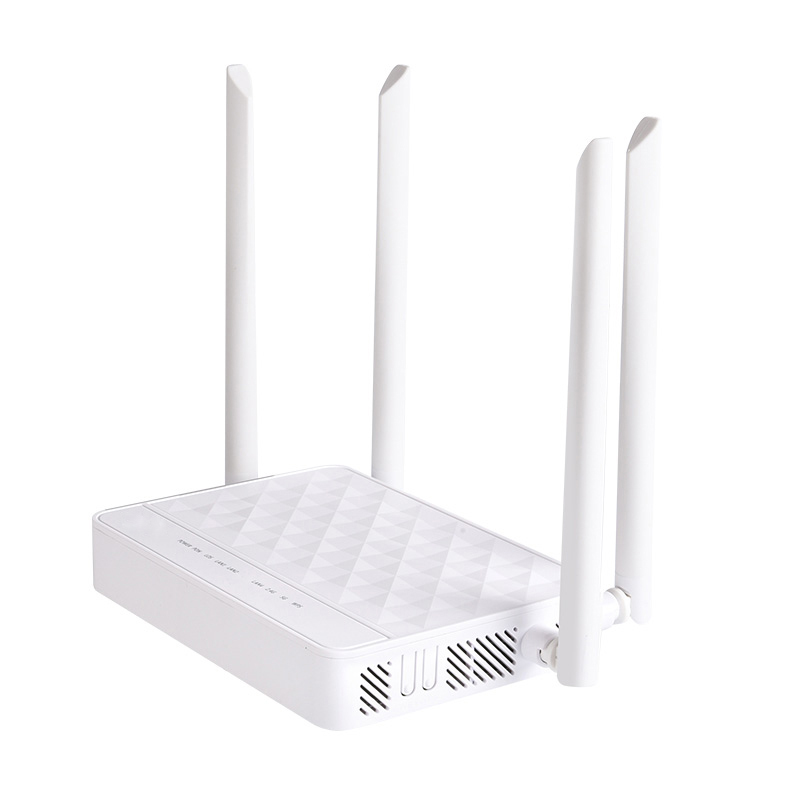

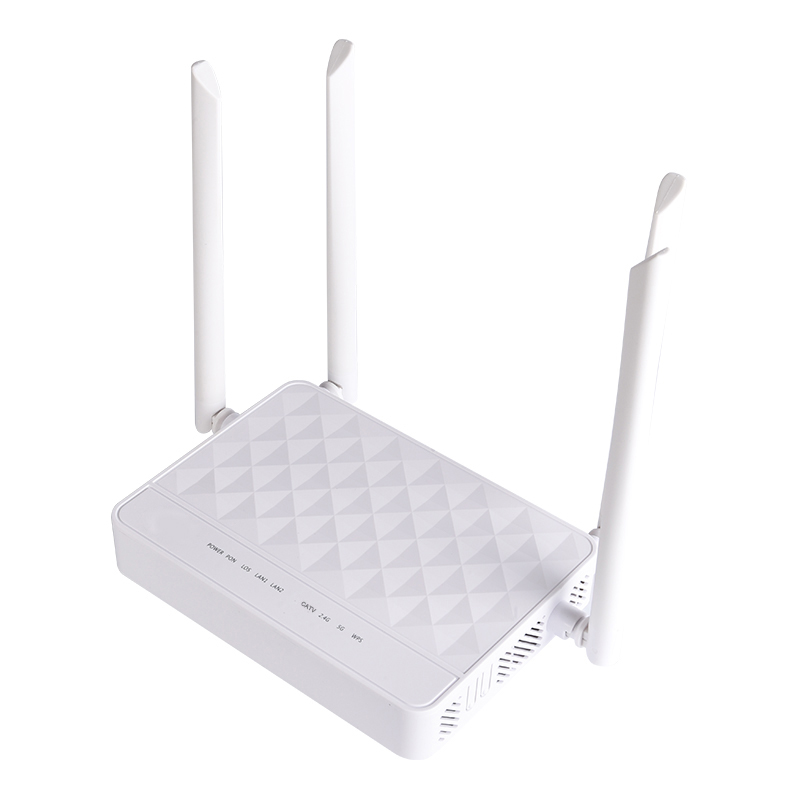

The FAB‑829YS is a high-performance XPON ONT equipped with dual-band Wi-Fi AC1200, 2 Gigabit Ethernet ports, a CATV interface, and routing capabilities, making it ideal for FTTH deployments offering triple-play services: internet, video, and voice.
Compatible with both GPON and EPON networks, this model supports automatic switching, allowing for seamless operation with most third-party OLTs, including Huawei, ZTE, and Fiberhome. It integrates Layer 2 switching and Layer 3 routing, plus support for PPPoE, DHCP, Static IP, and Bridge mode.
Wi-Fi AC1200 offers speeds up to 300 Mbps on 2.4 GHz and 866 Mbps on 5.8 GHz, supported by 2 external 5 dBi antennas and up to 4 SSIDs. The CATV port provides high-quality video output with AGC, RF level at 78 dBuV, and MER ≥ 32 dB, enabling remote video control via OLT.
It includes advanced firewall, multicast, IGMP/MLD snooping, and VLAN/QoS functions, making the FAB‑829YS a reliable and flexible CPE for residential fiber installations.
XPON ONU compatible with EPON/GPON auto-detection
2× GE LAN ports + CATV port for triple-play services
Dual-band Wi-Fi AC1200: 300 Mbps (2.4G) + 866 Mbps (5G)
External 2T2R antennas with 5 dBi gain
Supports up to 4 SSIDs, WPS, and dual-band operation
CATV RF output: 78 dBuV, AGC, MER ≥ 32 dB
Layer 2 & 3 support: NAT, Bridge, Routing, VLAN
TR-069, OMCI/OAM remote configuration
Full firewall, QoS, IGMP multicast features
Compact design: 160 × 115 × 28 mm | Power <10 W
| Specification | Details |
|---|---|
| Model | FAB‑829YS |
| PON Mode | XPON (EPON/GPON auto-switch) |
| LAN Ports | 2× RJ45 GE (10/100/1000 Mbps) |
| CATV | RF output: 78 dBuV | AGC | 47–1000 MHz | MER ≥ 32 dB |
| Wi-Fi | AC1200 (300 Mbps @2.4 GHz + 866 Mbps @5.8 GHz) |
| Antennas | 2× 5 dBi external (2T2R) |
| SSID | Supports up to 4 SSIDs |
| Routing | NAT, PPPoE, DHCP, Static IP, Bridge mode |
| QoS & VLAN | PQ, WRR, CAR, 802.1Q VLAN, Spanning Tree |
| Security | Firewall, URL/MAC/IP filtering, DoS protection |
| Management | TR-069, OMCI, OAM |
| Power Supply | 12V DC, 1.5A |
| Power Consumption | <10 W |
| Dimensions | 160 × 115 × 28 mm |
| Operating Temp. | –10 °C to +45 °C |
| Humidity | 5%–95% (non-condensing) |
