Outdoor fiber cabinet with 288-core capacity, SMC shell, and integrated splitter/splice system | Mod. FAB-FDT-288
Need a custom spec or OEM branding on this product? Talk to our engineering team.
Every batch, before shipment
Manufacturing
Custom specs and branding
Americas, Europe and Africa

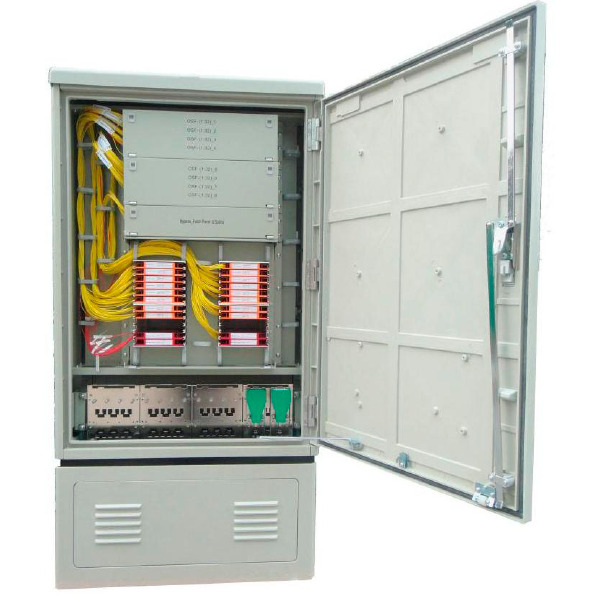

The FAB-FDT-288 is a robust outdoor fiber distribution cabinet designed to centralize, protect, and manage optical cable connections in FTTH and telecom networks. Made of high-strength SMC plastic, this weather-resistant enclosure supports splicing, distribution, and splitter integration in a compact and durable format.
The cabinet’s layout is thoughtfully divided into zones for optical splitting (OSF), fiber fusion, pigtail storage, and cable fixation. It accommodates up to 9 splitter trays for 1×32 or 2×32 PLC splitters and 4 fusion blocks, each with 6 slide-out trays supporting 24 fiber splices—totaling a fusion capacity of 576 fibers. All trays use interchangeable rail systems for flexible management.
It provides 34 LC (17 SC) output ports, a secure grounding system with high insulation and voltage endurance, and 18 positions for fixing cables. The door opens over 90° for easy front access, and pedestal mounting is supported for stability in outdoor deployments. Included are pre-installed feeder and distribution cables: one 12FO feeder (30m) and two 144FO distribution cables (30m each).
The FAB-FDT-288 is an ideal solution for ground-mounted fiber distribution in FTTH access networks, telecom systems, and local area infrastructures requiring high density and modular expansion.
SMC plastic construction with IP55 protection
Capacity for 9 PLC splitter trays (1×32 or 2×32)
4 fusion blocks with 6 trays each (576F splice capacity)
34 LC / 17 SC port capacity
Interchangeable splice/storage tray rail system
Includes 12FO feeder + 2×144FO distribution cables (30m each)
18 cable fixing positions + robust grounding system
Front door with >90° opening angle
Pedestal mount ready with accessory kits
| Specification | Details |
|---|---|
| Model | FAB-FDT-288 |
| Material | SMC Plastic |
| Splitter Capacity | 9 trays for 1×32 or 2×32 PLC |
| Fusion Capacity | 576 fibers (24×6 trays ×4 blocks) |
| Output Ports | 34 LC / 17 SC |
| Cable Fixing Positions | 18 |
| Grounding Resistance | ≥1000 MΩ / 500V DC |
| Voltage Endurance | ≥3000V / 1 min |
| Door Access | Front, >90° opening |
| Feeder Cable Included | 1 × 12FO (30m) |
| Distribution Cables | 2 × 144FO (30m each) |
| Installation | Ground-mounted with pedestal |
