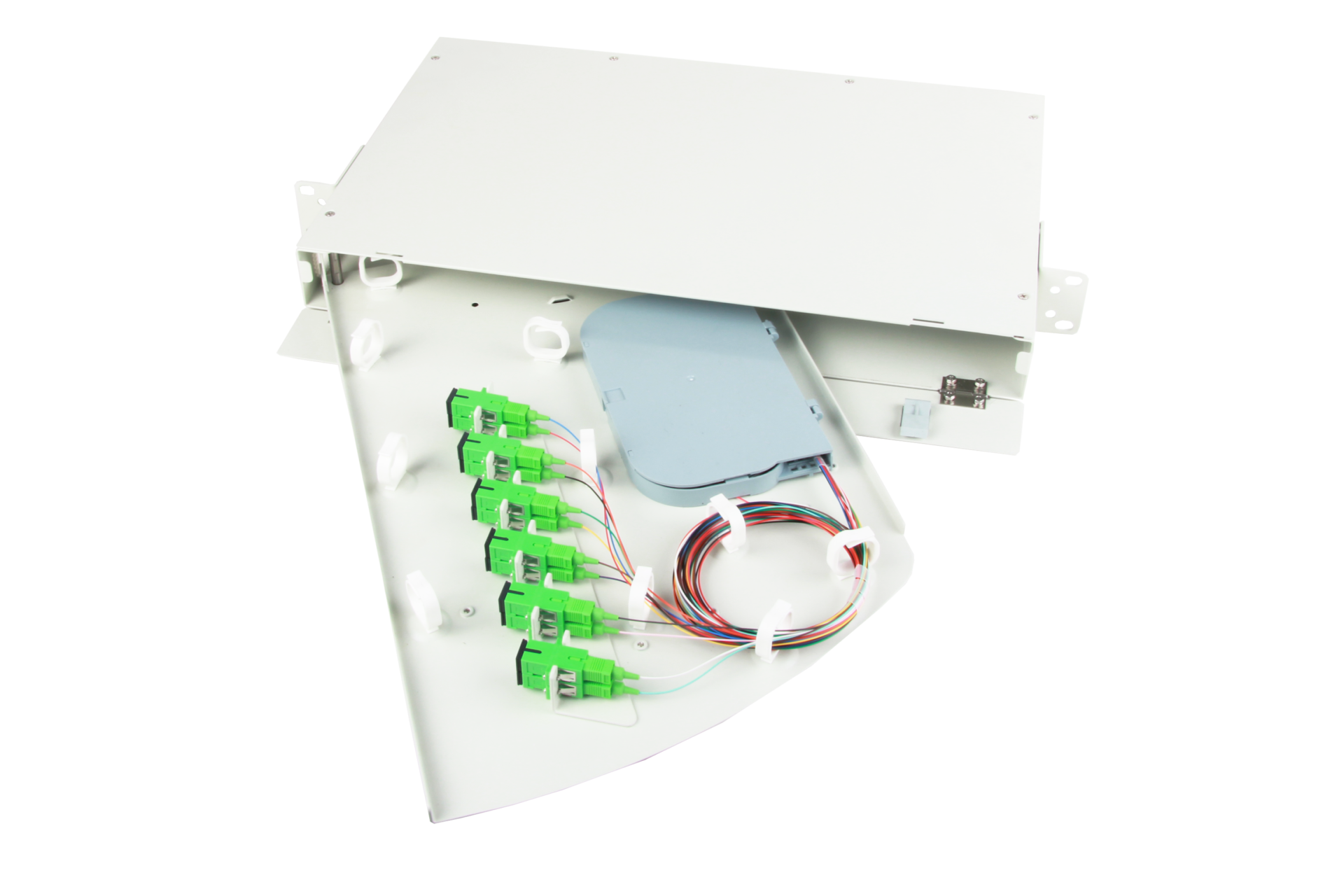

The FAB-FPX-P15 Series Fiber Optic Distribution Frame (ODF) is designed for terminating, securing, splicing, and patching fiber optic cables in professional networking environments. With its sliding-type design, it offers technicians easy access during installation and maintenance, ensuring optimal cable management and protection.

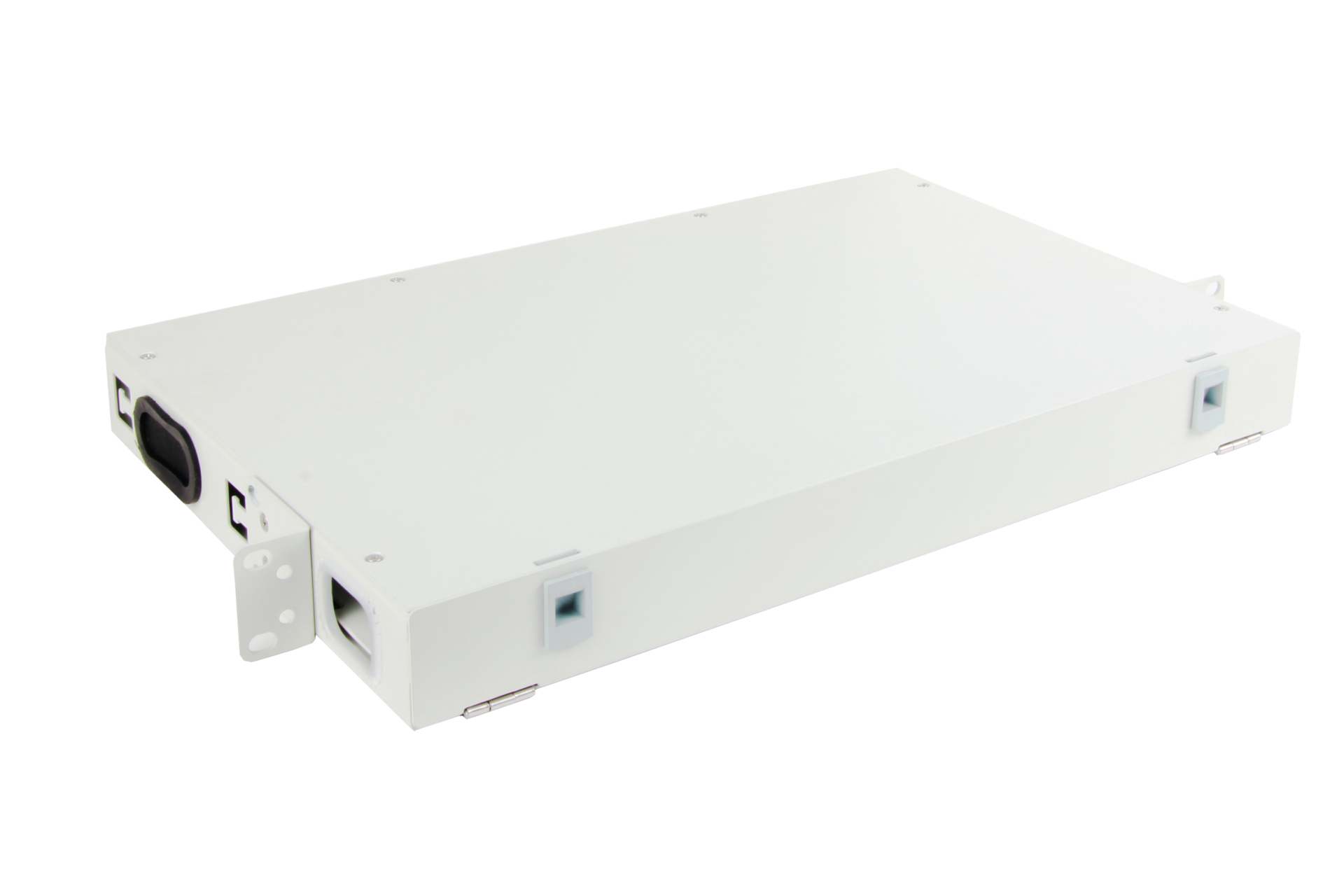

Built from cold-rolled steel with a durable grey finish, the FAB-FPX-P15 supports capacities from 12 to 72 fibers, accommodating SC, FC, and LC adapter types in both UPC and APC configurations. Adapters are installed at an angle to prevent direct laser exposure, enhancing operational safety. The ODF allows cable entry from the left side and rear for greater installation flexibility.
This ODF is compatible with both 19” and 21” rack mounts, making it suitable for server rooms, data centers, and telecom environments. Each splice tray supports up to 16 fibers, ensuring organized and secure splicing. Its robust build and ergonomic design make it ideal for high-density fiber optic terminations, offering reliability in both small-scale and large-scale deployments.
The FAB-FPX-P15 Series combines functionality, safety, and durability, making it an essential component for modern optical networks.
Sliding-type design for easy access and maintenance
Available capacities: 12, 36, and 72 fibers
Supports SC, FC, and LC adapters in UPC and APC versions
Adapters mounted at an angle to avoid direct laser beam exposure
Cold-rolled steel construction with grey finish
Cable entry from left side and rear
Compatible with 19” and 21” rack mounts
Splice tray capacity: 16 fibers per tray
Suitable for high-density fiber terminations
| Specification | Details |
|---|---|
| Model | FAB-FPX-P15 |
| Applicable Adapter | SC, FC, LC (UPC/APC) |
| Fiber Capacity | 12, 36, 72 fibers |
| Material | Cold rolled steel |
| Color | Grey |
| Dimensions | 12 fibers: 482.6 × 270 × 44 mm (1U) 72 fibers: 482.6 × 270 × 108 mm |
| Net Weight | 12 fibers: 4.3 kg 72 fibers: 7.4 kg |
| Installation Method | 19” and 21” rack mount |
| Splice Tray Capacity | 16 fibers/tray |
| Cable Entry | Left side and rear |
