Rugged FTTH Termination Box Mod. FAB-HGT-16F-3, IP68-rated for extreme environments with 16 ports and splitter support.
Need a custom spec or OEM branding on this product? Talk to our engineering team.
Every batch, before shipment
Manufacturing
Custom specs and branding
Americas, Europe and Africa
The FTTH Termination Box Mod. FAB-HGT-16F-3 is a highly durable fiber optic splice and splitter closure, designed to meet the rigorous demands of outdoor and underground fiber network deployments. With IP68-rated water and dust resistance, this model ensures long-term reliability even in extreme environmental conditions such as moisture, vibration, and temperature fluctuations.

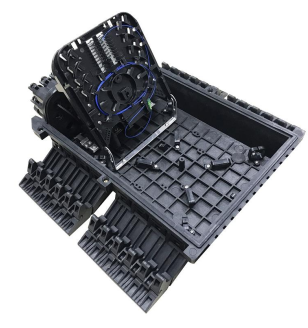

Its robust construction features a mechanical sealing structure and IK10 impact resistance, providing exceptional protection for fiber splicing and splitter operations. The unit supports up to 16 fiber splices and can accommodate either two 1×8 PLC splitters or one 1×16 PLC splitter in insertion type.
This model is compatible with various cable types including 2*3mm indoor FTTH drop cables, outdoor Figure 8 drop cables, and up to 7mm cables, making it versatile for different FTTH configurations. The humanized design enhances the user experience and offers a safer installation and operation process.
Ideal for wall-mounted, pole-mounted, or underground installations, the FAB-HGT-16F-3 is a perfect choice for ISPs, network operators, and FTTH deployments demanding superior performance and protection.
IP68 water-proof and dust-proof protection

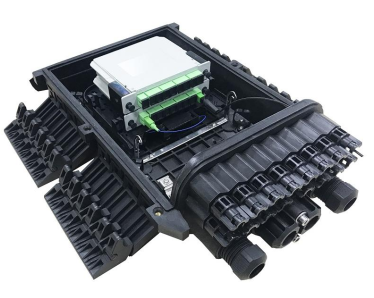

Supports 2x 1×8 or 1x 1×16 PLC splitters (insertion type)
16 fiber splice capacity
Mechanical sealing structure
Midspan cable entry supported
Compatible with 2*3mm, 4mm, and 7mm cables
Pole, wall, and underground installation
High impact resistance (IK10)
18 SC adapter positions
Lightweight, durable polymer plastic material
| Specification | Details |
|---|---|
| Model | FAB-HGT-16F-3 |
| Adapter | 18 pcs of SC |

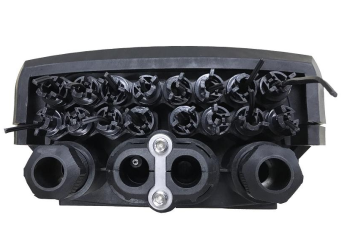

| Cable Ports | 1 oval uncut, 2 round ports |
| Applicable Cable Diameter | 10~16mm (main), 8~16mm (derivation) |
| Drop Cable Ports | 16 ports |
| Applicable Drop Cable | 2*3mm FTTH, 4mm or 7mm |
| Dimension | 385 x 245 x 130 mm |
| Material | Modified polymer plastic |
| Sealing Structure | Mechanical sealing |
| Color | Black |
| Maximum Splicing Capacity | 16 fibers |
| Applicable Splitter | 2x 1×8 or 1x 1×16 PLC (Insertion type) |
| Sealing | IP68 |
| Impact Test | IK10 |
| Pull Force | 100N |
| Midspan Entry | Yes |
| Storage (Tube/Micro Cable) | Yes |
| Net Weight | 4 kg |
| Gross Weight | 5 kg |
Our engineering team can confirm compatibility, custom specs and OEM branding options.
