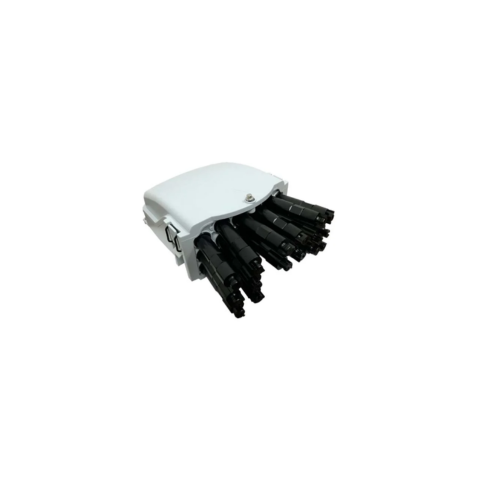

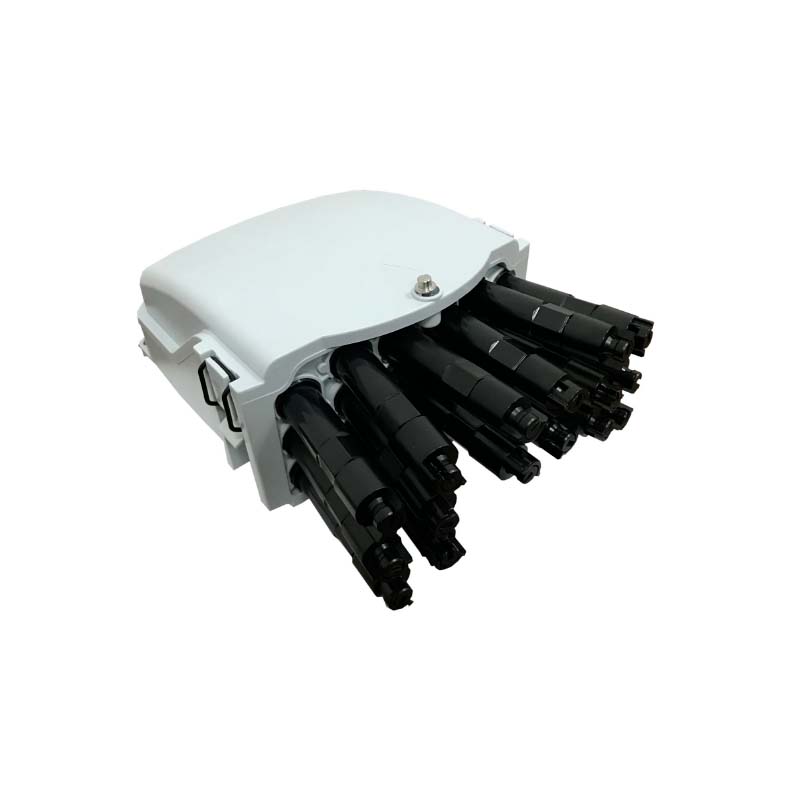

Fibramérica’s  FAB-HGT-16YXL is a compact fiber splitter and termination box developed for FTTH deployments in high-density scenarios. Its space-efficient design is tailored to enable fiber management, splicing, and signal distribution in residential and urban applications, supporting wall or pole mounting.

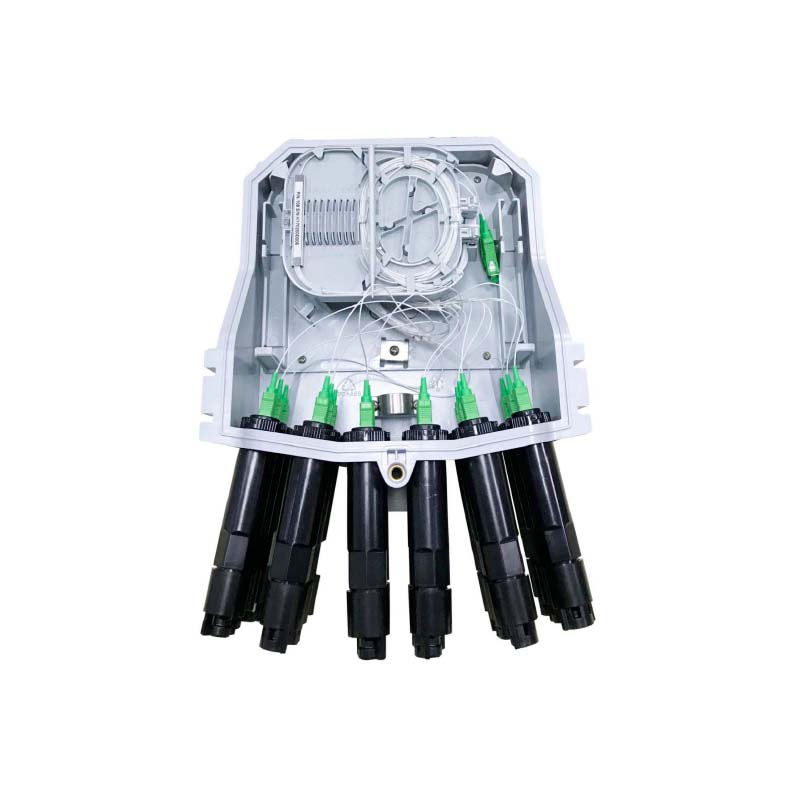

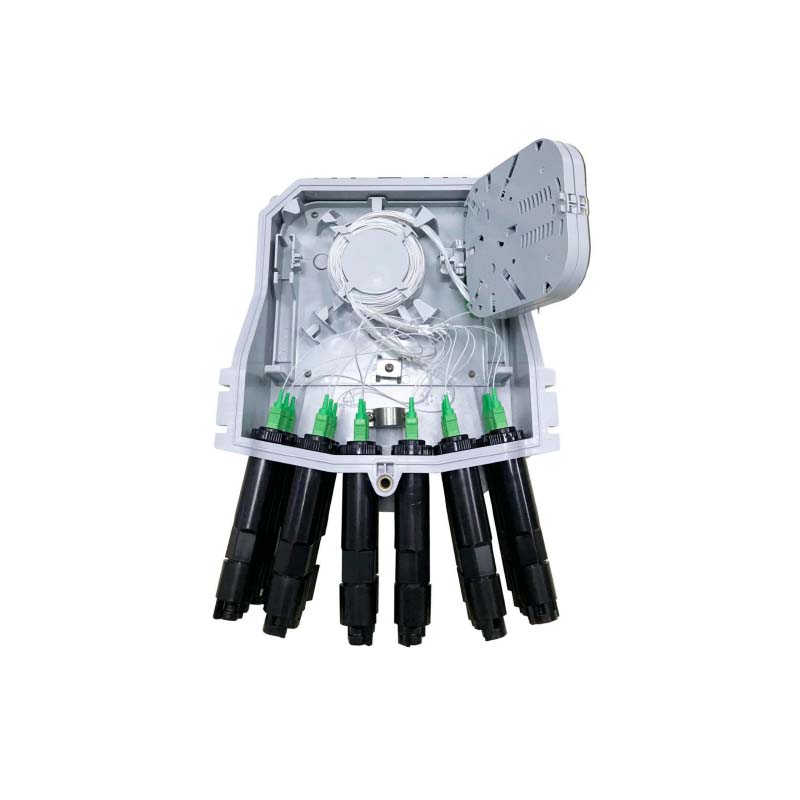

Constructed from high-grade PC+ABS with stainless steel fittings, this box is IP65-rated for reliable protection against water, dust, and environmental elements. Designed for long-term outdoor or indoor performance, it integrates two internal splice trays—each capable of holding 8 fiber cores—allowing a total of 16 splices.

The box supports up to 16 Mini SC Huawei adapters and accommodates two 1×8 PLC splitters, one per tray. Input capacity includes two Φ14 mm cables, offering flexibility for feeder cable integration. With its bend radius control above 40 mm and optimized cable layout, the box ensures signal integrity and efficient installation.

Weighing only 1.053 kg and with compact dimensions (208 × 241 × 117 mm), the FAB-FTB16-MSC is ideal for installations where both performance and space efficiency are critical.
