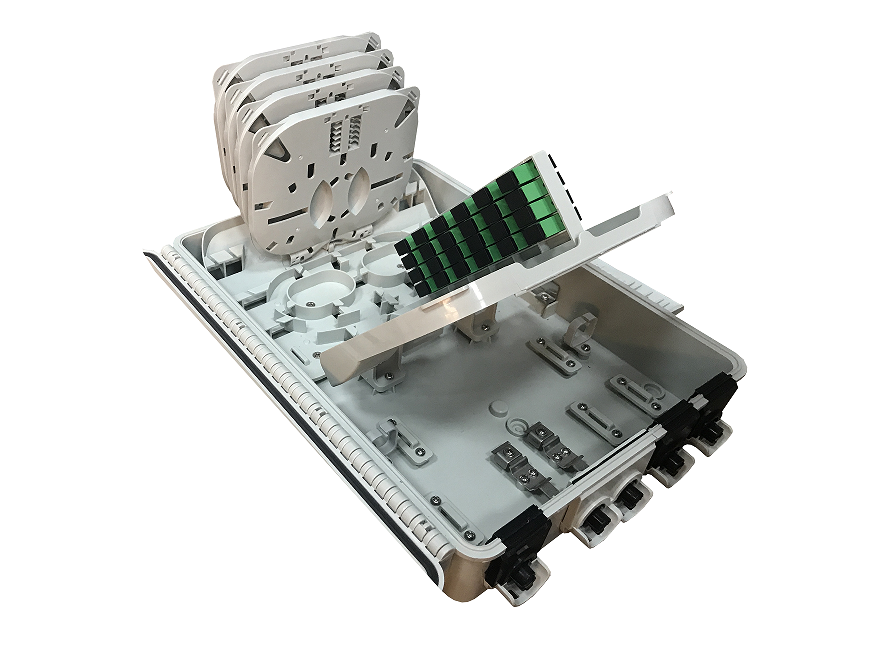

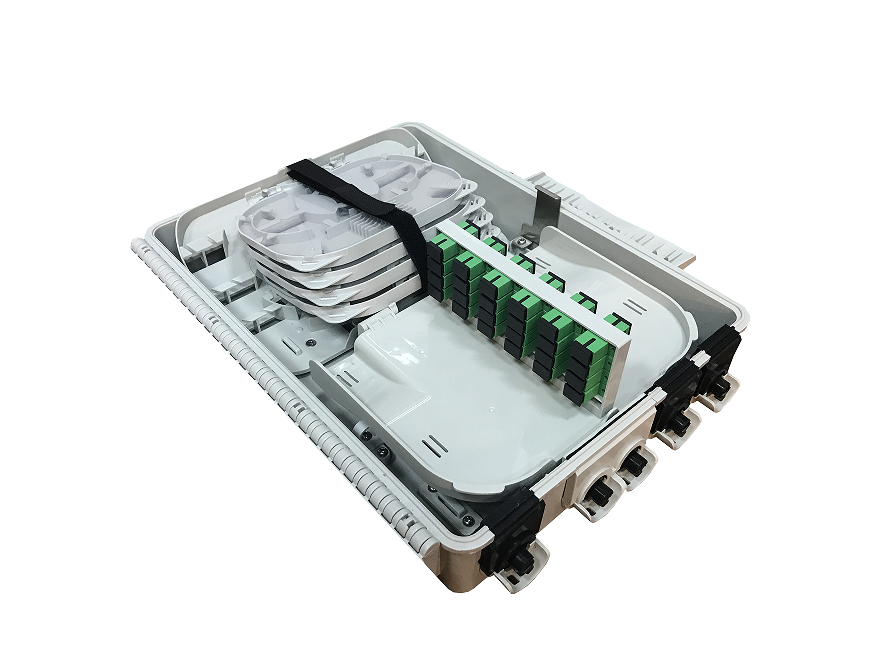

Fibramérica’s FAB-HGT-24H-1 Fiber Termination Box is designed for high-capacity fiber management in FTTx networks, serving as a secure termination point between feeder cables and drop cables. Capable of accommodating up to 48 cores, it supports splicing, splitting, and distribution functions within a single, compact enclosure.

Built from durable ABS or PC+ABS material, the FAB-HGT-24H-1 provides IP65-rated protection against dust, water, and environmental wear, ensuring reliable performance in both indoor and outdoor installations. It includes an integrated splice cassette and organized cable routing system to maintain a fiber bend radius greater than 40mm, reducing optical loss.

The unit supports fusion and mechanical splicing and delivers high optical performance, with insertion loss ≤0.2 dB, UPC return loss ≥50 dB, and APC return loss ≥60 dB. Engineered for longevity, it withstands over 1000 mating cycles and performs reliably in temperatures from -40°C to +85°C.

Lightweight at just 2.0 kg and compatible with wall, pole, or aerial mounting, the FAB-HGT-24H-1 is ideal for ISPs, telecom operators, and enterprise fiber networks seeking a balance of capacity, durability, and performance.
