IP65-rated 24-core fiber termination box for indoor/outdoor FTTx, with SC adapter support and high-performance optical specs.
Need a custom spec or OEM branding on this product? Talk to our engineering team.
Every batch, before shipment
Manufacturing
Custom specs and branding
Americas, Europe and Africa

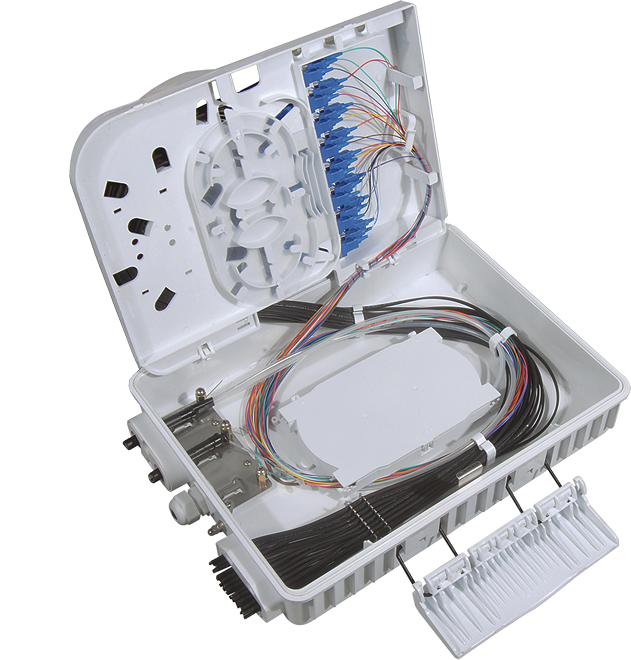

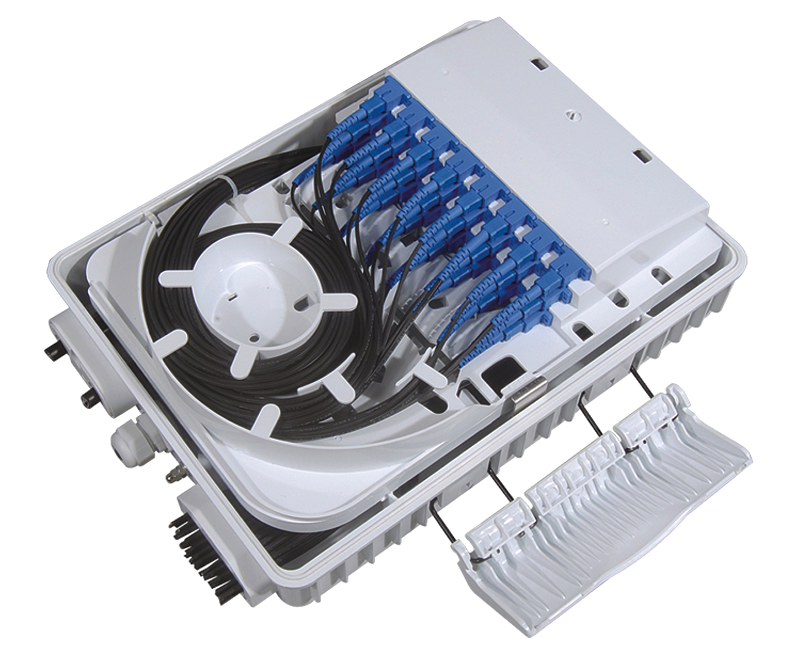

Fibramérica’s FAB-HGT-24H Fiber Termination Box is designed for secure, high-density fiber termination in FTTx networks, providing reliable performance in both indoor and outdoor environments. It serves as a termination point for feeder cables to connect with drop cables, supporting splicing, splitting, and distribution in one robust unit.
Constructed from ABS or PC+ABS, this enclosure delivers IP65-rated protection, ensuring resistance to dust, water, and environmental wear. It integrates a splice cassette and efficient cable management system to maintain a fiber bend radius greater than 40mm, ensuring signal integrity. With a maximum splicing capacity of 24 cores, it is suitable for both residential and commercial fiber deployments.
The FAB-HGT-24H supports fusion and mechanical splicing, with performance-optimized optical interfaces offering ≤0.2dB insertion loss, UPC return loss ≥50dB, and APC return loss ≥60dB. Designed for long-term durability, the unit withstands over 1000 mating cycles and operates in temperatures from -40°C to +85°C.
Its flexible mounting options, including wall, pole, and aerial installations, make it an excellent choice for ISPs, telecom providers, and enterprise fiber networks.
Supports 24-core fiber termination
ABS or PC+ABS construction with IP65 protection
Suitable for indoor and outdoor installations
Integrated splice cassette and cable management system
Fiber bend radius control > 40mm
Supports fusion and mechanical splicing
Optical performance: ≤0.2dB insertion loss, UPC ≥50dB, APC ≥60dB
Operating temperature: -40°C to +85°C
Over 1000 mating cycles durability
| Specification | Details |
|---|---|
| Model | FAB-HGT-24H |
| Material | ABS or PC+ABS |
| Dimensions | 340 × 250 × 110 mm |
| Weight | 2.4 kg |
| Max Splicing Capacity | 24 cores |
| Protection Level | IP65 |
| Operating Temperature | -40°C to +85°C |
| Relative Humidity | ≤85% (+30°C) |
| Atmospheric Pressure | 70 kPa – 106 kPa |
| Insertion Loss | ≤0.2 dB |
| UPC Return Loss | ≥50 dB |
| APC Return Loss | ≥60 dB |
| Mating Cycles | > 1000 times |
| Installation | Wall, Pole, Aerial Mounting |
FAB-HGT-24H, 24-core fiber termination box, IP65 fiber enclosure, SC adapter fiber box, FTTH termination unit, outdoor fiber splice and distribution box
