8-core FTTH termination box Mod. FAB-HGT-8ZT-1 with integrated splice trays, splitter support, and wall-mounted design.
Need a custom spec or OEM branding on this product? Talk to our engineering team.
Every batch, before shipment
Manufacturing
Custom specs and branding
Americas, Europe and Africa

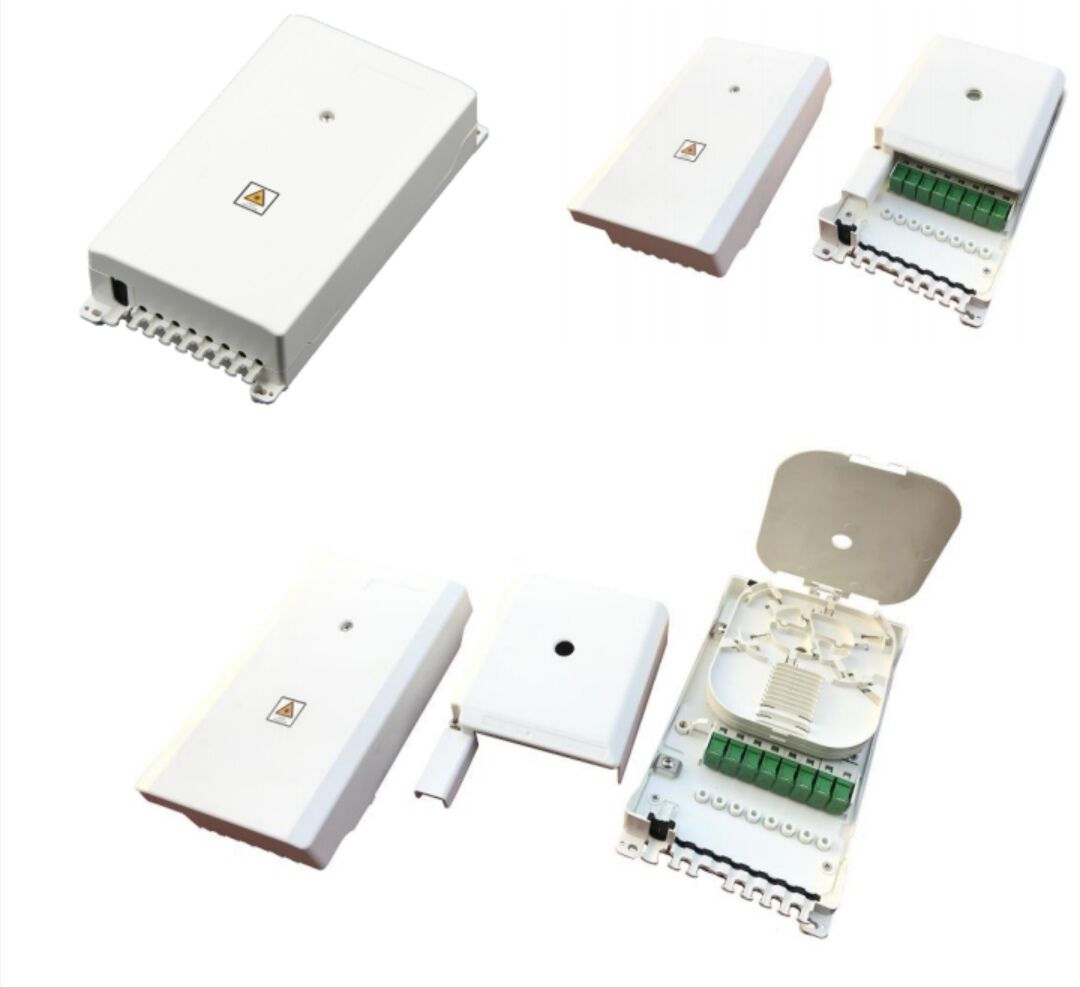

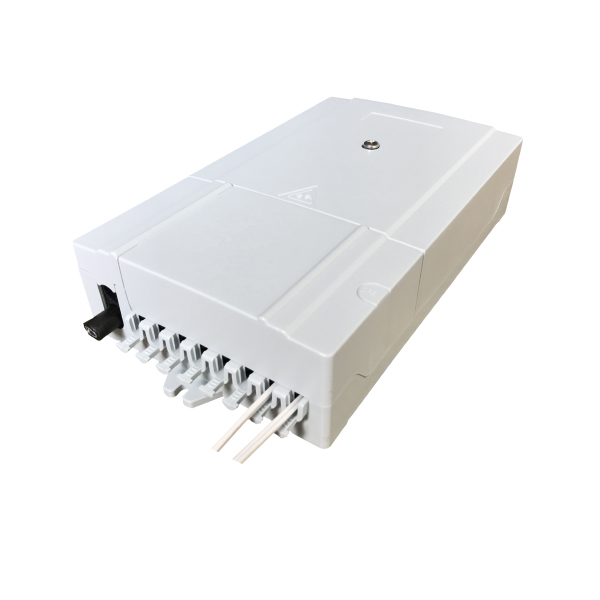

The FAB-HGT-8ZT-1 Fiber Termination Box by Fibramérica offers a compact and highly functional wall-mounted solution for managing fiber terminations in FTTH networks. Designed to maximize space efficiency, this enclosure integrates fiber routing, splicing, and optional splitter installation into a single streamlined unit.
This model is equipped with an internal splice cassette and cable management system that controls fiber bend radius above 40mm, ensuring optimal signal integrity. It supports the installation of a 1×8 micro PLC splitter and includes flexible splicing trays that extend up to 120 degrees for convenient access during installation and maintenance.
The adapter area is rotatable, allowing for ergonomic fiber management, while its 8-port design supports a mix of 2×3 mm FTTH drop cables and 3 mm armored distribution cables. This makes the FAB-HGT-8ZT-1 ideal for both indoor wall-mounted deployments and structured fiber terminations in residential or small business settings.
8 SC port FTTH termination box
Integrated splice cassette with 120° self-locking trays
Supports 1×8 micro PLC splitter
Fiber bend radius control >40 mm
Rotatable adapter installation area
8 ports for drop cable: 2×3 mm and 3 mm armored supported
Compact wall-mount design with organized fiber routing
| Specification | Details |
|---|---|
| Model | FAB-HGT-8ZT-1 |
| Installation | Wall-mounted |
| Port Capacity | 8 SC ports |
| Splitter Support | 1×8 micro PLC |
| Splice Trays | Extendable to 120° self-locking position |
| Adapter Angle | Rotatable |
| Cable Entry Options | 2×3 mm FTTH drop / 3 mm armored |
| Fiber Bend Radius | > 40 mm |
FAB-HGT-8ZT-1, 8-port fiber box, FTTH wall termination, splitter-compatible fiber box, drop cable fiber enclosure
