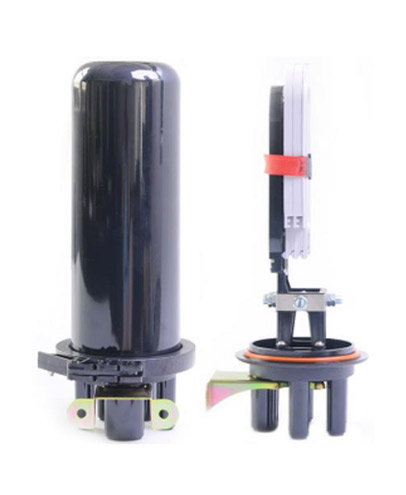

The FAB-OFC-BDH-B5 is a dome-type fiber optic splice closure built to offer secure, high-capacity fiber management for modern FTTx infrastructure. With a 5-port configuration and support for both bunchy and ribbon fibers, this model ensures flexible deployment and efficient splicing in complex fiber networks.
Featuring heat-shrinkable sealing, the closure is optimized for environments where watertightness and dust protection are critical. Its strong PC (polycarbonate) body and thermoplastic rubber sealing materials provide a durable and resilient structure that resists mechanical stress and extreme weather.
It supports up to 96 fibers (bunchy) or 288 fibers (ribbon), with four internal splice trays that allow dual-layer or ribbon configurations. The design is compatible with aerial, buried, wall-mounted, manhole, and pipelined installations, offering total deployment versatility.
As part of Fibramérica’s dome enclosure line, the B5 model is designed to meet the growing demand for efficient, adaptable, and long-lasting fiber protection solutions.
• Dome-type design with 5 heat-shrink sealed ports
• 96-fiber bunchy or 288-fiber ribbon capacity
• 4 splice trays with dual-layer and ribbon compatibility
• Cable diameter support: 4×16mm, 1×25mm
• PC housing and thermoplastic rubber sealing
• Suitable for aerial, underground, wall-mount, pipeline, and manhole use
• Stable performance from -40°C to +65°C
• Compact and field-proven design
| Specification | Details |
|---|---|
| Model | FAB-OFC-BDH-B5 |
| Type | Dome type |
| Sealing Structure | Heat shrinkable |
| Ports | 5 ports (4×16mm, 1×25mm) |
| Max Capacity | 96 fibers (bunchy), 288 fibers (ribbon) |
| Splice Tray Capacity | 12 (single), 24 (dual), 6 (ribbon) |
| Number of Splice Trays | 4 pcs |
| Body Material | PC (Polycarbonate) |
| Sealing Material | Thermoplastic rubber |
| Installation Methods | Aerial, buried, pipelined, wall-mount, manhole |
| Dimensions | 440(H) × 190(D) mm |
| Net Weight | 2.35 – 2.6 kg |
| Temperature Range | -40°C to +65°C |
