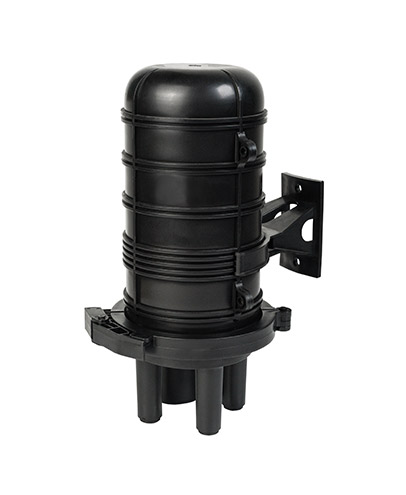

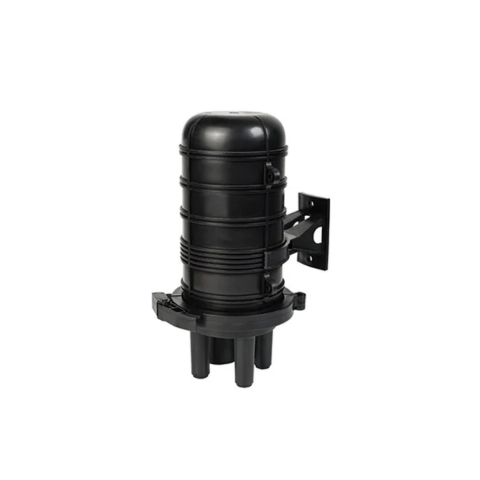

The FAB-OFC-BDH-J4 is a dome-type heat-shrinkable fiber optic splice closure designed to provide reliable sealing and high-capacity splicing in FTTx and backbone optical networks. Engineered for uncut cable applications, this closure is compatible with aerial, underground (direct buried or pipelined), wall-mounted, and manhole installations.
Constructed with a durable PC dome body and sealed with thermoplastic rubber, the unit offers long-lasting protection against moisture, dust, and environmental stress. It features 4 cable ports (3×16 mm, 1×25 mm), supporting flexible cable routing for varied network topologies.
Internally, the closure accommodates up to 48 bunchy fibers or 72 ribbon fibers across 4 splice trays. Each tray supports 6 fibers (single layer) or 12 fibers (dual layer) in bunchy configurations, with ribbon support up to 3 pieces per tray — offering ample flexibility for network expansions.
With its compact size and adaptable mounting methods, the FAB-OFC-BDH-J4 is ideal for high-reliability applications in telecom, CATV, and broadband infrastructure requiring robust splice protection.
Dome-type design with heat-shrinkable sealing structure
Supports up to 48 bunchy or 72 ribbon fibers
4 cable ports: 3×16 mm + 1×25 mm
4 internal splice trays included
PC dome housing with thermoplastic rubber seal
Multi-installation: aerial, wall, pipeline, buried, or manhole
Compact dimensions: 310 × 190 mm
Operating temperature: -40°C to +65°C
Lightweight: 1.55–1.74 kg
Ideal for uncut cable splicing
| Specification | Details |
|---|---|
| Model | FAB-OFC-BDH-J4 |
| Type | Dome type |
| Sealing Structure | Heat shrinkable |
| Ports | 4 (3×16 mm, 1×25 mm) |
| Splice Tray Capacity | 4 trays |
| Max Capacity | 48 bunchy / 72 ribbon fibers |
| Tray Support | Bunchy: 6/12 fibers; Ribbon: 3 pcs |
| Body Material | PC (Polycarbonate) |
| Sealing Material | Thermoplastic rubber |
| Installation Method | Aerial, buried, pipelined, wall, manhole |
| Dimensions (mm) | 310 (H) × 190 (D) |
| Weight | 1.55 – 1.74 kg |
| Temperature Range | -40°C ~ +65°C |
