MPPT solar charge controller series with 10A–40A model options, LCD display, three-stage charging, multiple battery configuration options and built-in electrical protection functions.
Need a custom spec or OEM branding on this product? Talk to our engineering team.
Every batch, before shipment
Manufacturing
Custom specs and branding
Americas, Europe and Africa

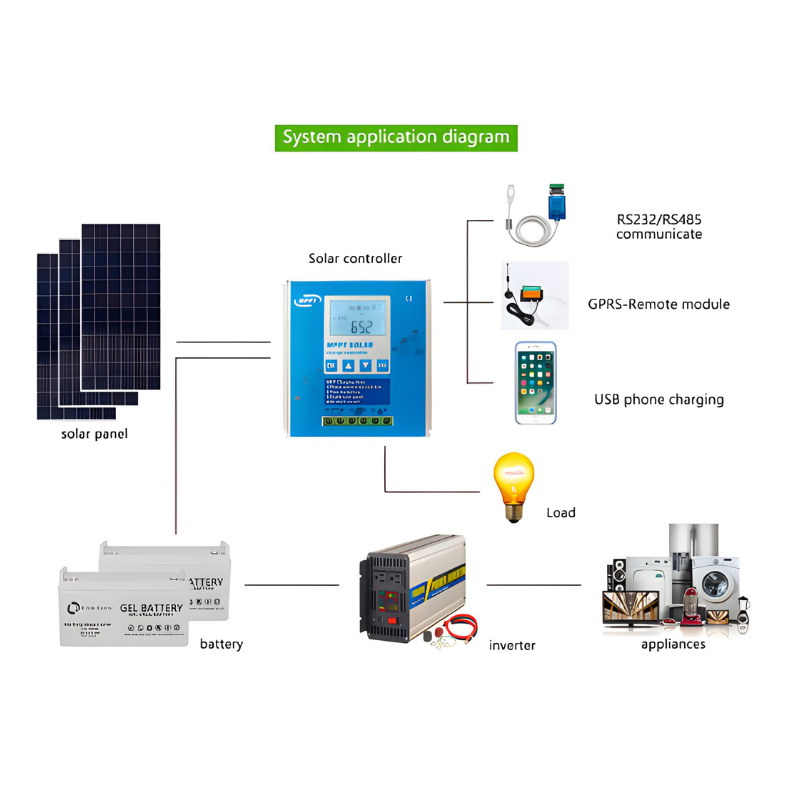

The Fibramérica FAB-QYGD-SECM Series comprises MPPT solar charge controllers for photovoltaic battery-charging systems. The controllers use maximum power point tracking to regulate charging from solar panels, and include an LCD display for operating information and configuration.
The series is listed with 10A, 20A, 30A and 40A current ratings, depending on the model. The manufacturer’s catalog describes three-stage charging, support for several battery chemistries and built-in electrical protection functions. Optional USB charging and communication interfaces depend on the selected configuration.
Refer to the technical specifications to select the appropriate controller according to the photovoltaic array and battery system. Voltage and power ratings must be checked for the specific variant before ordering.
| Parameter | Manufacturer catalog value |
|---|---|
| Series reference | FAB-QYGD-SECM |
| Original model family | QYGD-SECM |
| Controller technology | MPPT |
| Current ratings | 10A / 20A / 30A / 40A (depending on variant) |
| Manufacturer-listed system voltages | 12V / 24V / automatic 12V–24V; 48V appears in the tracking-range data and requires model confirmation |
| Max. solar input voltage (80V group) | 80V |
| Max. solar input voltage (150V group) | 150V |
| 80V group – max. solar power at 12V (10A / 20A / 30A / 40A) | 130W / 260W / 390W / 520W |
| 80V group – max. solar power at 24V (10A / 20A / 30A / 40A) | 260W / 520W / 780W / 1040W |
| 150V group – max. solar power at 24V (10A / 20A / 30A) | 260W / 520W / 780W |
| 150V group – max. solar power at 48V (10A / 20A / 30A) | 520W / 1040W / 1560W |
| MPPT tracking range | 12V system: 15–80V; 24V system: 30–80V; 48V system: 60–150V (as listed; verify model association) |
| Floating charge voltage | 13.8V per 12V lead-acid battery |
| Equalization voltage | 14.2V per 12V lead-acid battery |
| Charge protection voltage | 15V per 12V lead-acid battery |
| Boost recovery voltage | 13.8V per 12V lead-acid battery |
| Low-voltage recovery/disconnect | 12.5V / 10.5V per 12V lead-acid battery |
| Charging stages | Constant current / constant voltage / float charge |
| Conversion efficiency | >98% (manufacturer-stated) |
| MPPT tracking efficiency | >99% (manufacturer-stated) |
| Display | LCD |
| Cooling | Intelligent forced-air cooling |
| Ingress protection | IP20 |
| Operating temperature | −15°C to +50°C |
| Storage temperature | −20°C to +60°C |
| Net / gross weight | 0.8kg / 1kg |
| Dimensions (device / package) | 131.9 × 145.5 × 61.8mm / 196 × 180 × 109mm |
| Altitude | 5000m; derating specified above 2000m |
| Relative humidity | 5–95%, non-condensing |
| Communication options | Mobile app (Wi-Fi or GPRS monitoring) / RS485 (as listed; optional functions require confirmation) |
Important: the supplier table mixes 80V and 150V groups and is unclear about the correspondence between some battery-voltage options and individual models. Confirm electrical configuration before quoting or specifying a particular variant.
