51.2V wall-mounted LiFePO4 battery series with 5.12–14.336 kWh options, intelligent BMS, ≥6,000 cycles (25°C, 80% DOD) and support for up to 15 units in parallel.
Need a custom spec or OEM branding on this product? Talk to our engineering team.
Every batch, before shipment
Manufacturing
Custom specs and branding
Americas, Europe and Africa

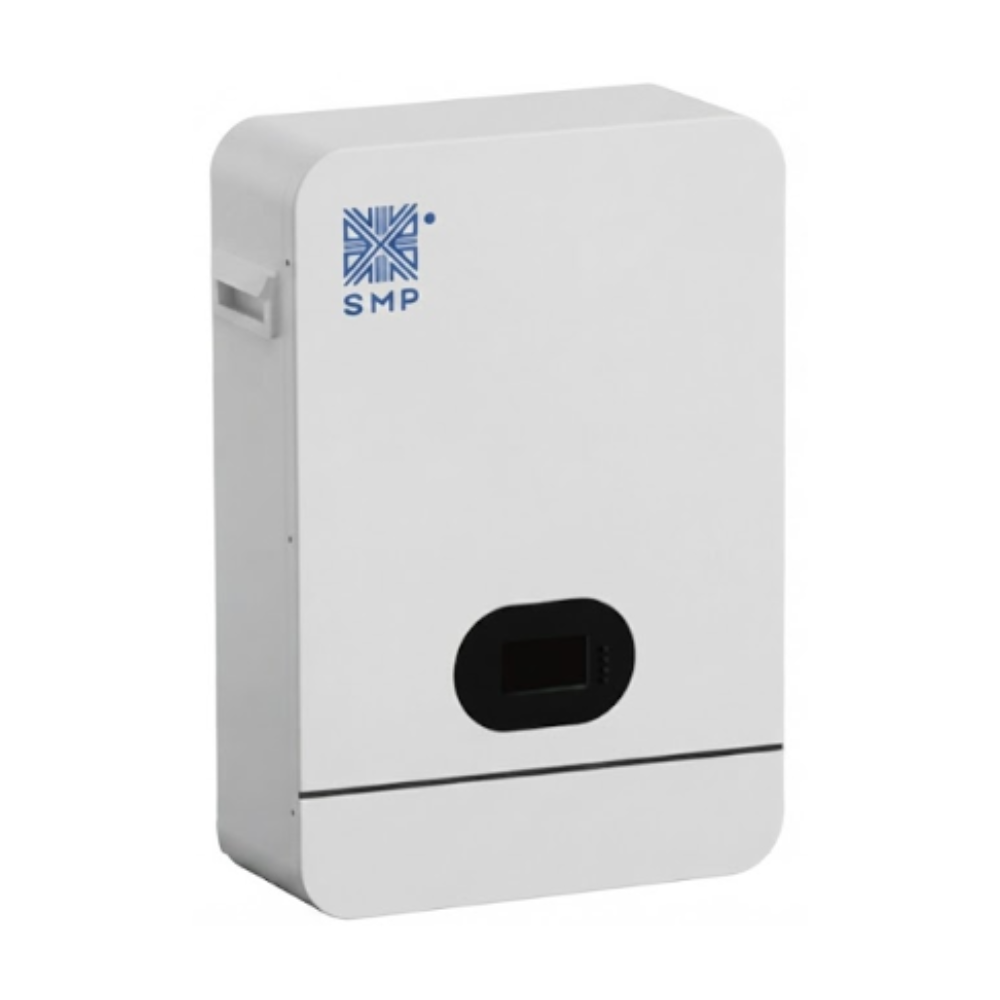

The Fibramérica FAB-SMP Series is a range of wall-mounted, low-voltage lithium iron phosphate (LiFePO4) batteries for modular energy storage. Operating at 51.2 VDC nominal, the four available models provide capacities from 100 Ah to 280 Ah and rated energy from 5.12 kWh to 14.336 kWh.
The series uses new Grade A LiFePO4 cells and integrates an intelligent battery management system (BMS) for safety management. Its specified cycle life is at least 6,000 cycles at 25°C and 80% depth of discharge (DOD), with a listed DOD of 90%.
Designed for scalable installations, the FAB-SMP Series supports operation of up to 15 battery units in parallel. Communication interfaces listed in the technical datasheet include CAN, RS485, RS232, Wi-Fi and Bluetooth.
Wall-mounted installation helps organize the energy storage system. Each model differs in capacity, rated energy, dimensions, net weight and maximum charge/discharge current. Review the technical specifications to identify the most suitable configuration.
For a project-specific quotation, please indicate the required model (FAB-SMP-AU004, AU005, AU006 or AU007), quantity and intended application. Confirm the applicable IP20/IP54 configuration and integration requirements with our technical team before ordering.
| Specification | FAB-SMP-AU004 | FAB-SMP-AU005 | FAB-SMP-AU006 | FAB-SMP-AU007 |
|---|---|---|---|---|
| Nominal voltage | 51.2 VDC | 51.2 VDC | 51.2 VDC | 51.2 VDC |
| Voltage range | 43.2–57.6 VDC | 43.2–57.6 VDC | 43.2–57.6 VDC | 43.2–57.6 VDC |
| Nominal capacity | 100 Ah | 150 Ah | 200 Ah | 280 Ah |
| Rated energy | 5.12 kWh | 7.68 kWh | 10.24 kWh | 14.336 kWh |
| Communication protocols | CAN / RS485 / RS232 / Wi-Fi / Bluetooth | CAN / RS485 / RS232 / Wi-Fi / Bluetooth | CAN / RS485 / RS232 / Wi-Fi / Bluetooth | CAN / RS485 / RS232 / Wi-Fi / Bluetooth |
| Self-discharge rate | < 5% / month | < 5% / month | < 5% / month | < 5% / month |
| Parallel operation | 1–15 units | 1–15 units | 1–15 units | 1–15 units |
| Depth of discharge (DOD) | 90% | 90% | 90% | 90% |
| Cycle life | ≥ 6,000 cycles at 25°C, 80% DOD | ≥ 6,000 cycles at 25°C, 80% DOD | ≥ 6,000 cycles at 25°C, 80% DOD | ≥ 6,000 cycles at 25°C, 80% DOD |
| Max. charge/discharge current | 100 A | 100 A | 100 A | 200 A |
| Ingress protection | IP20 (IP54 option; confirm configuration) | IP20 (IP54 option; confirm configuration) | IP20 (IP54 option; confirm configuration) | IP20 (IP54 option; confirm configuration) |
| Installation | Wall-mounted | Wall-mounted | Wall-mounted | Wall-mounted |
| Operating temperature | 0–55°C | 0–55°C | 0–55°C | 0–55°C |
| Storage temperature | −20–55°C | −20–55°C | −20–55°C | −20–55°C |
| Relative humidity | ≤ 80% | ≤ 80% | ≤ 80% | ≤ 80% |
| Product dimensions (mm) | 426 × 590 × 160 | 705 × 530 × 247 | 576 × 820 × 200 | 530 × 800 × 267 |
| Package dimensions (mm) | 495 × 680 × 280 | 770 × 630 × 325 | 630 × 1160 × 405 | 630 × 900 × 510 |
| Net weight | 44 kg | 84 kg | 96 kg | 125 kg |
Our engineering team can confirm compatibility, custom specs and OEM branding options.
