SC/APC & SC/UPC Field Connector | Pre-terminated fast connector for FTTH with quick assembly and high reliability.
Need a custom spec or OEM branding on this product? Talk to our engineering team.
Every batch, before shipment
Manufacturing
Custom specs and branding
Americas, Europe and Africa

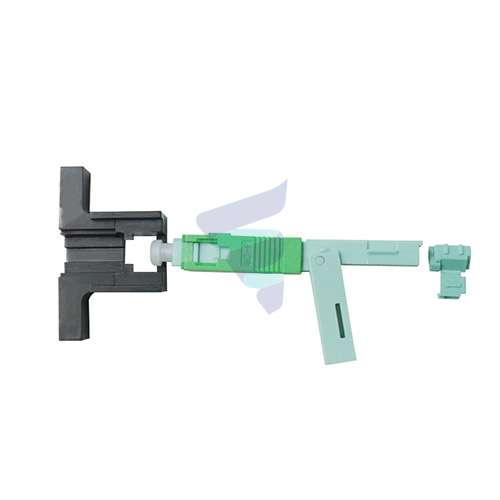

The FAB-SC-04 Series Field Assembly Optical Connector from Fibramérica is a next-generation fiber solution specifically designed for FTTH applications. This fast connector comes pre-terminated with fiber in the ferrule, eliminating the need for epoxy, curing, or polishing—ensuring a faster and cleaner installation process.
Its innovative crimping structure provides solid mechanical and optical performance, compatible with both single-mode and multimode fibers. Supporting rubber-insulated 2x cable and 3.0 mm fiber, this connector is ideal for field environments where precision, ease of use, and speed are critical.
With installation times under 40 seconds and a >99% success rate in the field, the FAB-SC-04 excels in time-sensitive deployments. It delivers low insertion loss (≤0.5 dB typical) and a high return loss average of 50 dB, making it ideal for high-quality signal transmission.
Designed to withstand tough environmental conditions, this connector supports more than 50 reuse cycles and offers a 30-year service life, making it an efficient, long-term solution for FTTH drop connections, LAN terminations, and patch panel integration.
Pre-terminated ferrule with no epoxy or polishing
≤40 seconds installation time
High field success rate (≥99%)
Insertion loss ≤0.5 dB (typical ≤0.8 dB)
Return loss average 50 dB
Compatible with 2x rubber-insulated wire and 3.0 mm fiber
Reusable ≥50 times
Threaded joint for secure cable fixing
Long service life: up to 30 years
Designed for SM and MM fiber types
| Specification | Details |
|---|---|
| Model | FAB-SC-APC&UPC-04 |
| Connector Type | SC/UPC, SC/APC |
| Applicable Cable | 2x rubber-insulated wire, Φ3.0 mm fiber |
| Fiber Type | Single-mode or Multimode |
| Installation Time | ≤ 40 seconds |
| Field Success Rate | ≥ 99% |
| Insertion Loss | ≤ 0.5 dB (typical ≤ 0.8 dB) |
| Return Loss | Average 50 dB |
| Tensile Strength | > 30 N |
| Reusability | ≥ 50 times |
| Service Life | 30 years |
| Operating Temperature | -40°C to +70°C |
