SC/APC & SC/UPC Fast Connector | Ultra-fast field assembly for FTTH, LAN, and telecom with no polishing or gluing.
Need a custom spec or OEM branding on this product? Talk to our engineering team.
Every batch, before shipment
Manufacturing
Custom specs and branding
Americas, Europe and Africa

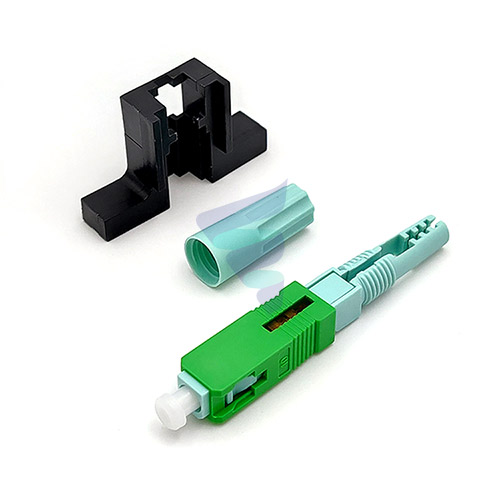

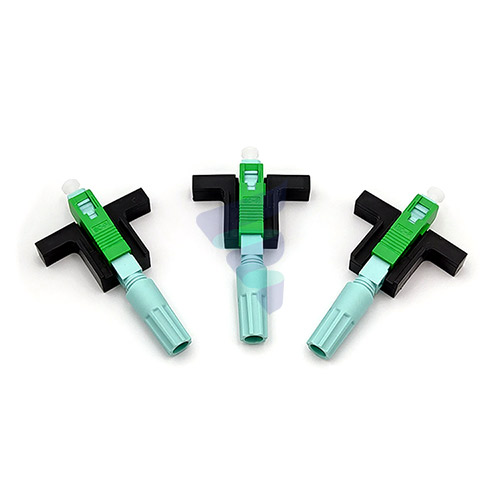

The FAB-SC-05 Series Field Assembly Fast Connector by Fibramérica is designed to deliver rapid and dependable terminations in fiber optic installations. This quick-assembly connector is ideal for FTTH, LAN, and telecom networks where speed, performance, and reliability are essential.
With no need for epoxy, polishing, or fusion splicing, this SC connector enables technicians to complete fiber terminations directly in the field in just minutes—using only basic tools and without the need for specialized equipment. The installation process can be learned in under 30 seconds, making it highly user-friendly and perfect for fast-paced deployments.
The connector system ensures high performance with low insertion loss and high return loss, and is engineered for excellent thermal stability and sealing performance, even under demanding environmental conditions.
Compatible with standard SC/APC and SC/UPC formats, the FAB-SC-05 connector is suitable for a wide range of applications including distribution frames, patch panels, CATV, CCTV, and test equipment, offering consistent signal quality and long-term reliability.
No special tools or gluing required
No epoxy or polishing needed
Field-termination in minutes
Easy installation process (learn in 30 seconds)
Low insertion loss, high return loss
Excellent temperature resistance and sealing
Suitable for SC/UPC and SC/APC formats
Fast and clean on-site installation
Ideal for telecom, FTTH, and data networks
| Specification | Details |
|---|---|
| Model | FAB-SC-APC&UPC-05 |
| Connector Type | SC/UPC, SC/APC |
| Assembly Time | Under 2 minutes |
| Polishing Required | No |
| Epoxy Required | No |
| Insertion Loss | Low (typical ≤ 0.3 dB) |
| Return Loss | High (≥ 50 dB UPC / ≥ 55 dB APC) |
| Operating Temperature | -40°C to +85°C |
| Applications | FTTH, LAN, CATV, CCTV, Telecom, Patch Panels |
FAB-SC-APC&UPC-05, SC fast connector, quick assembly SC connector, no epoxy SC connector, FTTH fiber connector, field installable SC connector, SC/UPC connector, SC/APC connector
Our engineering team can confirm compatibility, custom specs and OEM branding options.
