FAB-WF-10R Thermal Stripper | Precision heating stripper for ribbon and single fiber, ideal for FTTH and fiber prep workflows.
Need a custom spec or OEM branding on this product? Talk to our engineering team.
Every batch, before shipment
Manufacturing
Custom specs and branding
Americas, Europe and Africa
The FAB-WF-10R Heating Strip Fiber Optic Stripping Pliers are designed for precise and controlled thermal stripping of both single-core and ribbon fiber. With adjustable temperatures and automated heating cycles, this tool enables clean and efficient removal of fiber coating without damaging the glass cladding.
Engineered for high-reliability environments like FTTH deployment, fiber splicing, and ODN construction, it supports multiple fiber types and holder formats including 250μm, 900μm, and 2–12 ribbon fibers. Its built-in lithium battery enables over 300 cycles per charge, making it highly suitable for field and laboratory use.
The thermal stripper automatically activates a short heating cycle once the main cover is closed, signaling completion with a steady green indicator. Designed for ease of use, it ensures consistent stripping lengths up to 30mm, minimizing residue and maximizing splicing success rates.

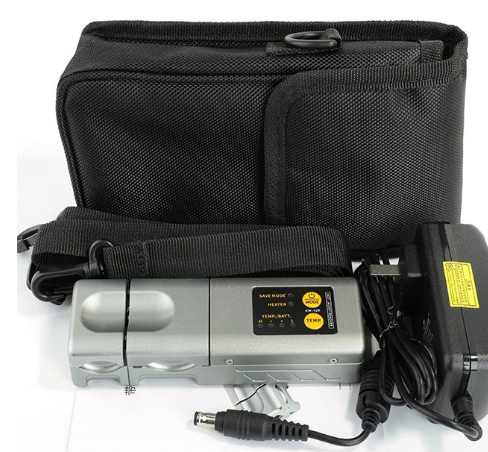

Compact, lightweight, and rechargeable, the FAB-WF-10R enhances technician productivity while maintaining fiber integrity.
Supports single-core and 2–12 ribbon fibers
Thermal stripping with set temperatures (80°C to 140°C)

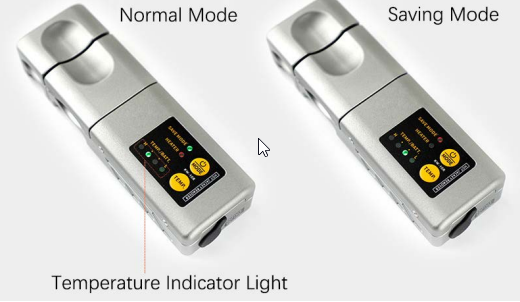

Automatic heat cycle with indicator light
Coating diameter: 0.25–0.4mm
Max stripping length: 30mm
Compatible with multiple fiber holders (FH-2 to FH-12, FH-250/900/U)
Lithium battery supports 300+ cycles
Compact and lightweight: 300g with battery
Ideal for FTTH, splicing, and field fiber prep
One-year warranty included
| Specification | Details |
|---|---|
| Model | FAB-WF-10R |
| Product Name | Heating Strip Fiber Optic Stripping Pliers |
| Fiber Type | Single fiber, Ribbon fiber (2–12 cores) |
| Cladding Diameter | 125μm |
| Coating Diameter | 0.25–0.4mm |
| Stripping Length | Max 30mm |
| Temperature Settings | 80°C, 100°C, 120°C, 140°C |
| Battery | 800mAh Li-ion, >300 stripping cycles |
| Dimensions | 138×44×28 mm |
| Weight | 300 g (including battery) |
| Warranty | 1 year |
FAB-WF-10R, thermal fiber stripper, hot jacket stripper, ribbon fiber stripper, FTTH stripping tool, fiber optic thermal tool, precision fiber stripper
Our engineering team can confirm compatibility, custom specs and OEM branding options.
