FAST SIMPRECON preconnectorized SC/APC system delivers IP65/IP68 protection and ultra-low loss for rapid FTTH field installs.
Need a custom spec or OEM branding on this product? Talk to our engineering team.
Every batch, before shipment
Manufacturing
Custom specs and branding
Americas, Europe and Africa

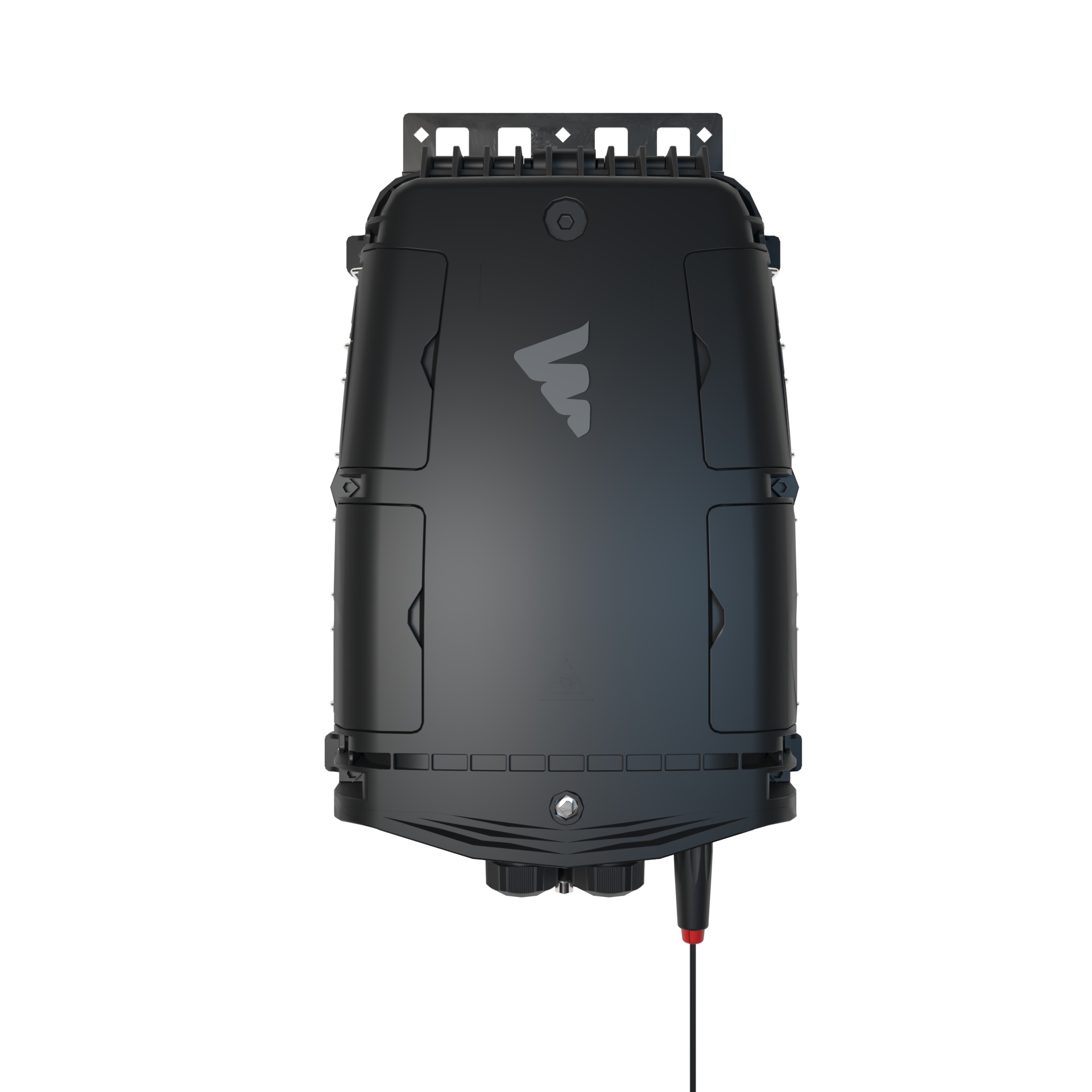

The FAST SIMPRECON solution from Fibramérica redefines fiber optic preconnectorization, combining advanced engineering, universal compatibility, and maximum operational efficiency. Designed as an open system for FTTH/FTTx networks, it eliminates dependency on proprietary platforms while offering superior optical performance, high mechanical durability, and protection against extreme environments.

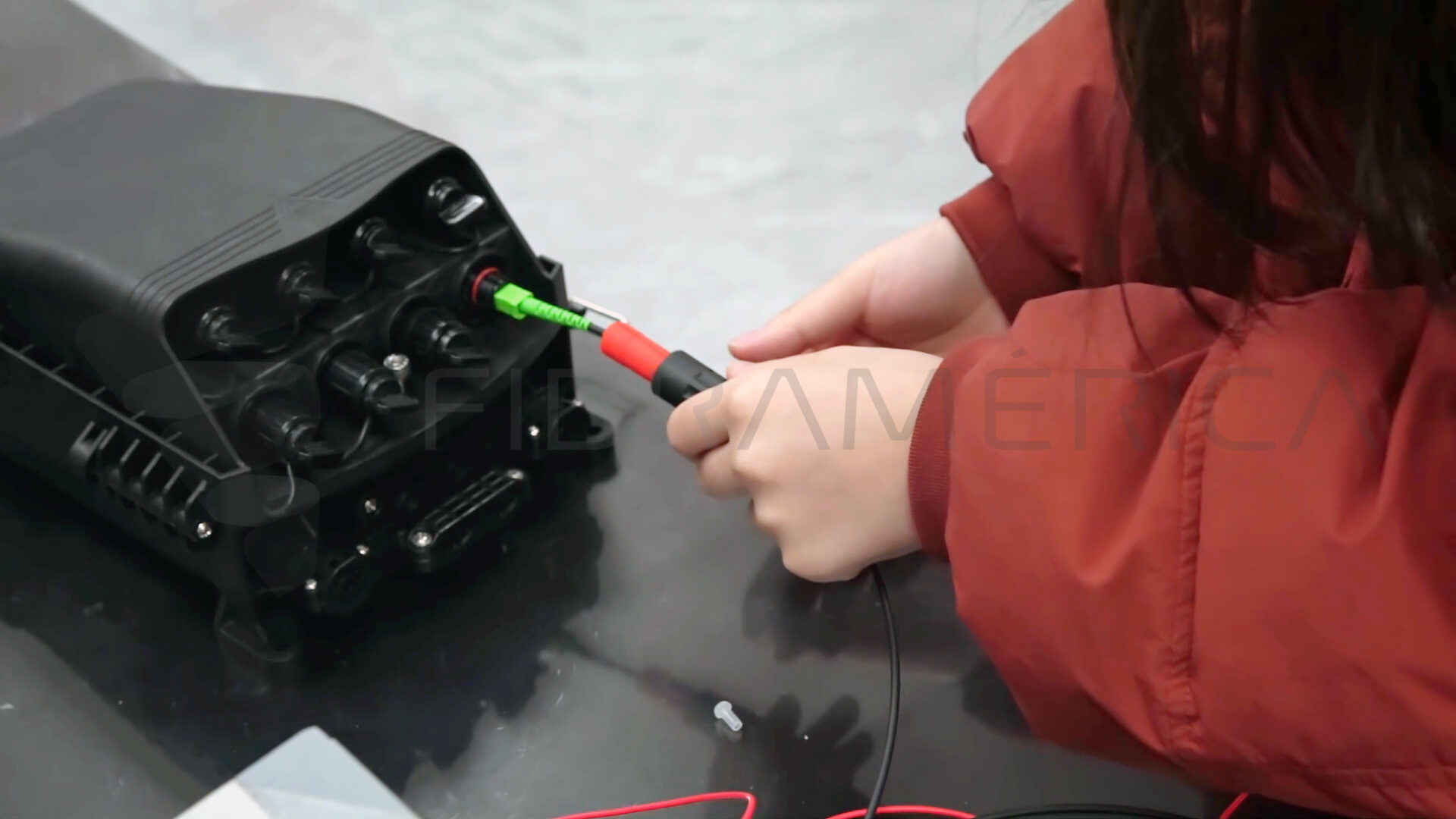

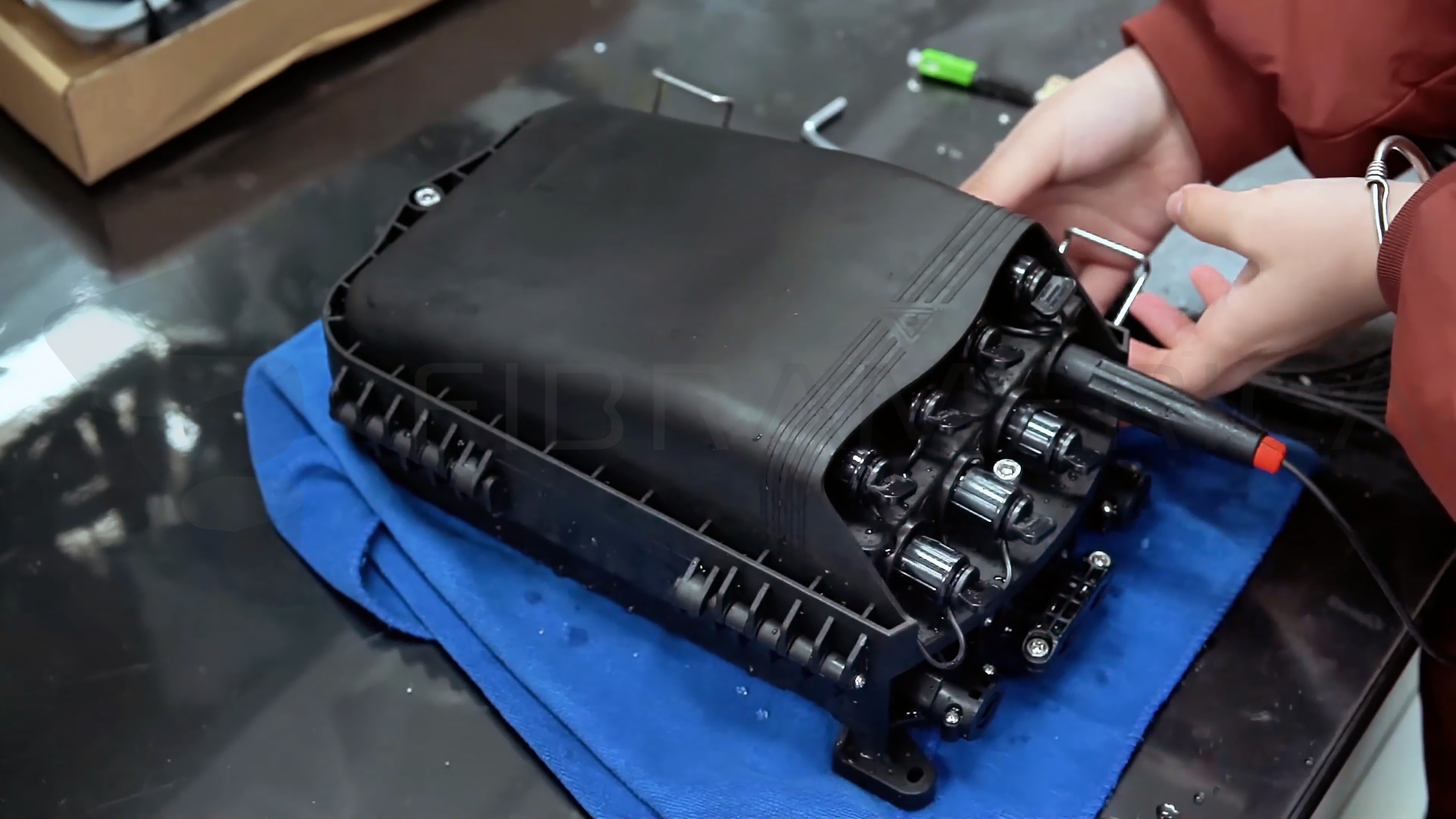

FAST SIMPRECON consists of three essential components: a reinforced SC/APC adapter, a high-resistance threaded plastic cover, and a silicone grommet, together forming a robust, easy-to-install, and highly resilient solution. The system supports SC/APC mechanical connectors installed directly in the field or pre-assembled, allowing fast deployment without opening distribution boxes.
With a typical insertion loss of 0.1dB, protection ratings of IP65 or IP68, and compatibility with flat and round cables (2x5mm, 3mm, 5mm), FAST SIMPRECON ensures reliable, long-lasting connectivity across residential, commercial, and outdoor networks, even under challenging environmental conditions.
Universal SC/APC compatibility — no proprietary restrictions
Reinforced adapter with threaded connection for secure and stable joints
Ultra-low insertion loss: typical 0.1dB, maximum 0.3dB
Durability >1000 connection/disconnection cycles
Versions available with IP65 and IP68 protection ratings
Suitable for flat (2x5mm) and round (3mm, 5mm) cables
Compatible with fast connectors and preconnectorized cables
High mechanical traction resistance: 75N (IP65) and 125–150N (IP68)
Extended operating temperature: -20°C to +70°C
Rapid and simplified installation without needing fusion splicing
| Item | Specification |
|---|---|
| Applicable Connector | SC/APC Standard |
| Fiber Type | Singlemode |
| Test Wavelength | 1310nm, 1550nm |
| Insertion Loss (Typical) | ≤ 0.10dB |
| Insertion Loss (Maximum) | ≤ 0.20dB–0.30dB |
| Repeatability | ≤ 0.10dB |
| Durability | >1000 cycles |
| Frame Material | High-Strength PP Plastic |
| Internal Sleeve Material | Ceramic |
| Protection Level | IP65 or IP68 |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Cable Compatibility | 2x5mm flat, 3mm round, 5mm round cables |
Our engineering team can confirm compatibility, custom specs and OEM branding options.
