Compact FTTH indoor socket with 2-port SC/LC support | Mod. FAB-FFS-2-C – Simple, reliable, and easy to install.
Need a custom spec or OEM branding on this product? Talk to our engineering team.
Every batch, before shipment
Manufacturing
Custom specs and branding
Americas, Europe and Africa

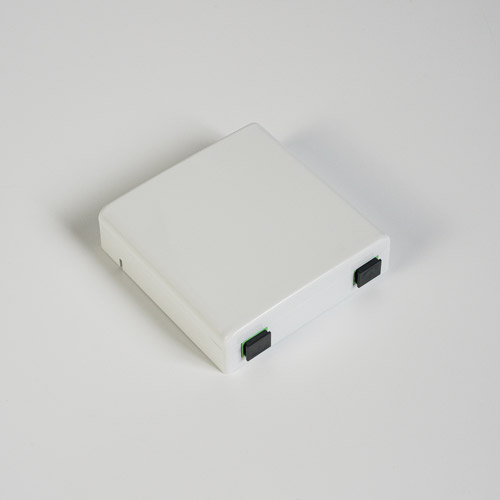

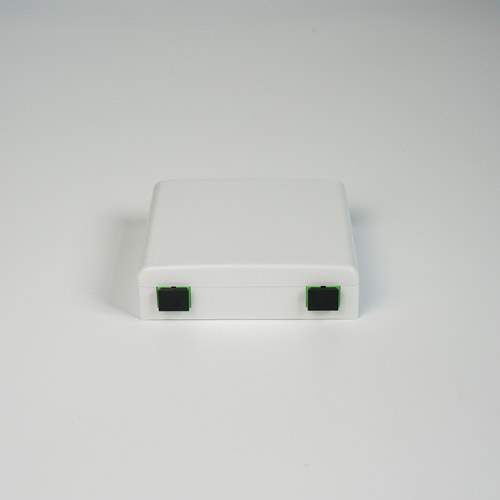

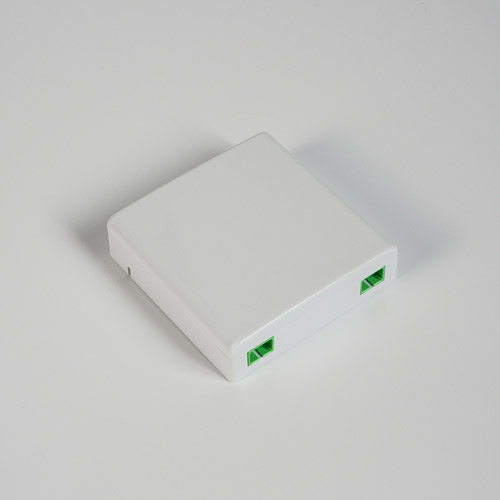

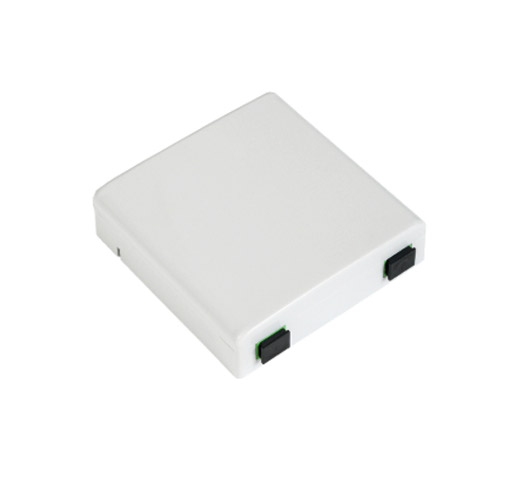

The FAB-FFS-2-C is a compact and efficient FTTH fiber socket designed for indoor applications in fiber-to-the-home networks. It serves as a convenient and aesthetic termination point for optical drop cables, allowing seamless SC or LC fiber connections inside residential and office spaces.
This socket is designed for quick wall-mounting and supports up to 2 fiber ports, with a flexible internal layout that makes installation and maintenance simple. Made from high-quality materials, it offers durability, clean appearance, and good tensile strength, ensuring long-term performance even in frequently accessed locations.
Ideal for telecommunication networks, CATV systems, and data communications, this socket enables tidy and secure fiber terminations while maintaining low insertion loss (≤0.2dB). It includes optional accessories such as metal blocks, pigtails, and adapters, making it a versatile solution adaptable to multiple installation scenarios.
Lightweight and compact (only 86×86×27mm), the FAB-FFS-2-C is the go-to choice for clean and efficient fiber terminations in modern FTTH deployments.
Indoor FTTH socket for SC/LC adapters
Supports up to 2 fiber outputs

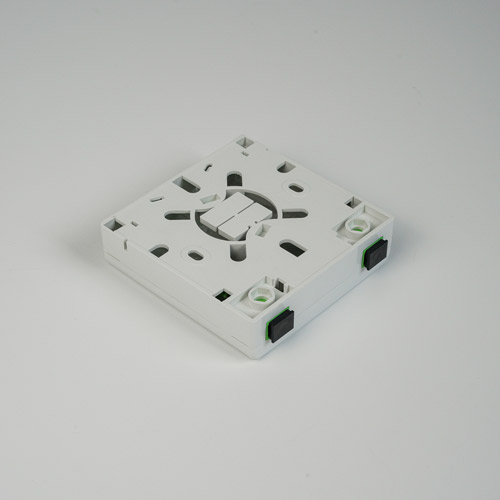

Compact wall-mounted design (86×86×27mm)

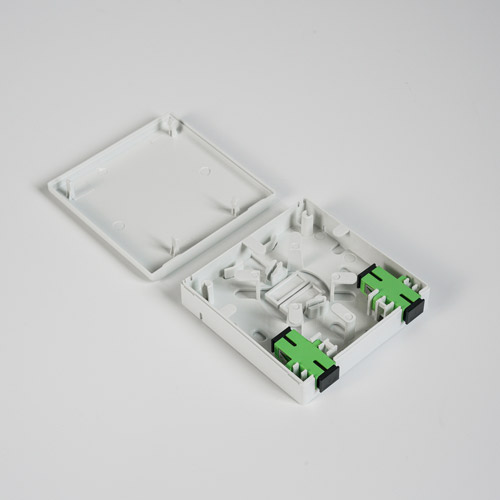

Flexible cable routing and internal layout
High-quality material ensures tensile durability
Compatible with 3.1×2.0mm drop cables
Insertion loss ≤ 0.2dB @1310/1550nm

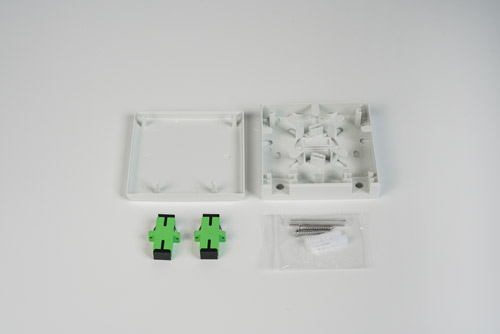

Includes optional accessories: adapter, pigtail, splice tube
| Specification | Details |
|---|---|
| Model | FAB-FFS-2-C |
| Application | FTTH Indoor |
| Supported Cable | 3.1×2.0mm drop / indoor cable |
| Fiber Diameter | 125μm (G652, G657) |
| Tight Buffer Diameter | 250μm / 900μm |
| Tensile Strength | > 50N |
| Operating Temperature | -40°C ~ +75°C |
| Adapter Type | SC or LC duplex |
| Insertion Loss | ≤0.2dB (1310nm & 1550nm) |
| Port Output | 2 |
| Dimensions | 86 × 86 × 27 mm |
| Weight | 0.06 ~ 0.1 kg |
| Accessories | Screws, Cable tie, Optional adapter, pigtail, splice tube |
FAB-FFS-2-C, FTTH socket, indoor fiber outlet, 2-port fiber socket, SC LC wall box, fiber terminal outlet, compact fiber socket
Our engineering team can confirm compatibility, custom specs and OEM branding options.
