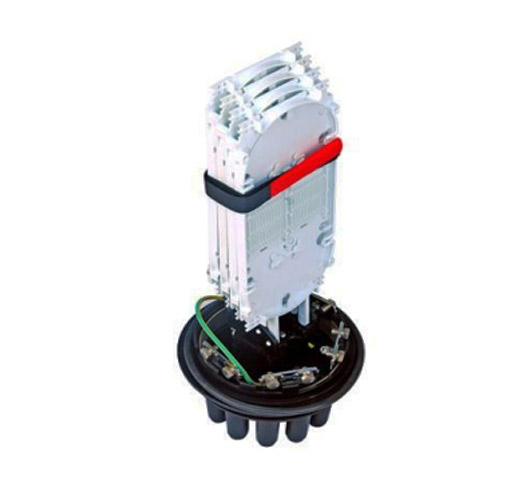

The FAB-OFC-BDH-A9 is a heat-shrinkable dome-type fiber optic splice closure designed to meet the rigorous demands of modern FTTH networks. Supporting up to 144 fiber splices, this closure provides a reliable and high-capacity solution for a wide range of splicing applications including express, tap-off, branch, and repair.
Engineered with a total of 9 ports—8 round and 1 oval—it accommodates various cable structures such as loose tube, ribbon, and central core configurations. The heat-shrinkable sealing ensures protection against environmental factors, making it suitable for aerial, pedestal, buried, handhole, and manhole installations.
Its compact design (42 cm height and 16 cm base diameter) does not compromise performance. The closure supports robust mechanical and environmental protection while enabling easy access and fiber management for technicians. It’s a dependable, flexible, and scalable solution for high-density outdoor network deployments.
Supports up to 144 fiber splices
Dome-type structure with heat-shrinkable sealing
9 ports: 8 round (Φ6–12mm) + 1 oval (Φ10–25mm)
Compatible with ribbon, loose tube, and central core cables
Ideal for aerial, pedestal, underground, or handhole use
Compact dimensions for space-constrained installations
Durable design with strong cable retention and sealing
Reliable for FTTH, FTTB, and network expansion projects
| Specification | Details |
|---|---|
| Model | FAB-OFC-BDH-A9 |
| Type | Dome Type |
| Sealing Method | Heat Shrinkable |
| Number of Ports | 8 round + 1 oval (total 9) |
| Cable Diameter (Oval Port) | Φ10–25 mm |
| Cable Diameter (Round Ports) | Φ6–12 mm |
| Max Capacity | 144 fibers |
| Height | 42 cm |
| Base Diameter | 16 cm |
| Oval Hole Size | 6 × 4 cm (major × minor axis) |
