IP68 inline splice closure with 288-fiber capacity and versatile port configuration | Mod. FAB-OFC-BIM-K288S24-A
Need a custom spec or OEM branding on this product? Talk to our engineering team.
Every batch, before shipment
Manufacturing
Custom specs and branding
Americas, Europe and Africa

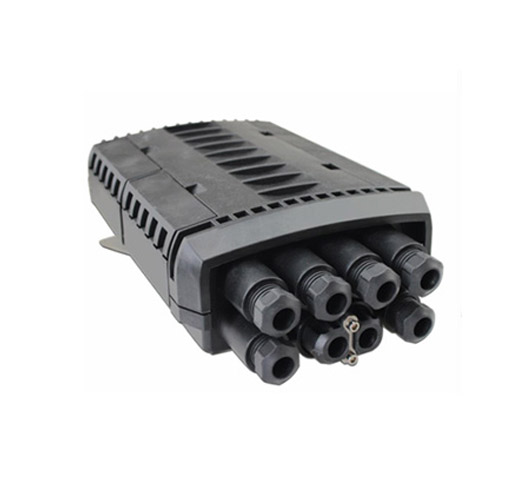

The FAB-OFC-BIM-K288S24-A is an inline type fiber optic splice closure developed for long-lasting protection of fiber splicing points in FTTx, backbone, and outdoor optical networks. Built with reusable mechanical sealing, this closure has been rigorously tested under extreme conditions of humidity, vibration, and temperature to guarantee stable and reliable operation.

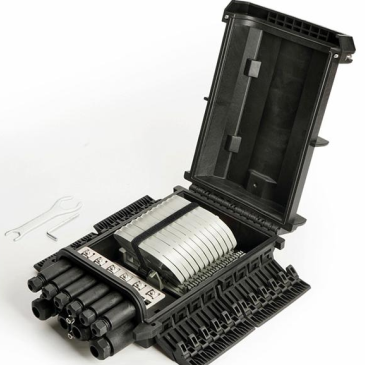

With a maximum capacity of 288 fibers, the closure integrates 12 splice trays (24 splices each) and supports 1×4 and 1×8 PLC splitters, offering scalability and flexibility for fiber optic deployments. Its port configuration includes 6 round ports, 2 tap ports, and 1 oval port, making it adaptable to various cable types and installation scenarios.
Constructed from PP+GF material, the FAB-OFC-BIM-K288S24-A ensures IP68 waterproofing and IK10 impact resistance, making it a highly resistant solution for the most demanding outdoor environments. Its ergonomic design improves handling and installation efficiency, providing a safer working environment for technicians.
Ideal for telecom operators, ISPs, and network integrators, this closure offers an optimal balance between cost and durability for high-capacity fiber networks.
Inline type mechanical splice closure
Supports up to 288 fibers
12 splice trays with 24 splices each
Compatible with 1×4 and 1×8 PLC splitters
Port configuration: 6 round ports (6–8 mm), 2 tap ports (10–17.5 mm), 1 oval port
IP68-rated waterproof and dustproof
IK10 impact resistance
Material: PP+GF for durability
Dimension: 388(H)×242(W)×128(D) mm
Reusable sealing design for long-term installations
| Specification | Details |
|---|---|
| Model | FAB-OFC-BIM-K288S24-A |
| Type | Inline Splice Closure |
| Ports | 6 round (6–8 mm), 2 tap (10–17.5 mm), 1 oval |
| Max Fiber Capacity | 288 fibers |
| Number of Trays | 12 trays (24 splices each) |
| Splitter Support | 1×4 and 1×8 PLC splitters |
| Material | PP+GF |
| Protection Level | IP68 |
| Impact Resistance | IK10 |
| Dimensions | 388(H) × 242(W) × 128(D) mm |
| Sealing | Mechanical, reusable |
FAB-OFC-BIM-K288S24-A, inline splice closure, IP68 fiber splice box, 288 fiber optical closure, FTTx closure, PLC splitter enclosure, IK10 splice closure
