LP-3PX XG-PON Optical Power Meter

Pass-through PON power meter for B-PON, E-PON, G-PON and next-generation 10G PON networks including XG-PON and 10G-EPON. Measures multiple upstream and downstream wavelengths while supporting ONU/OLT verification, configurable Pass/Fail thresholds, USB data transfer and storage of up to 1000 test records.

Need a custom spec or OEM branding on this product? Talk to our engineering team.

Factory Tested

Every batch, before shipment

ISO-9001

Manufacturing

OEM Available

Custom specs and branding

Global Delivery

Americas, Europe and Africa

PON power testing for GPON, XG-PON and 10G access networks

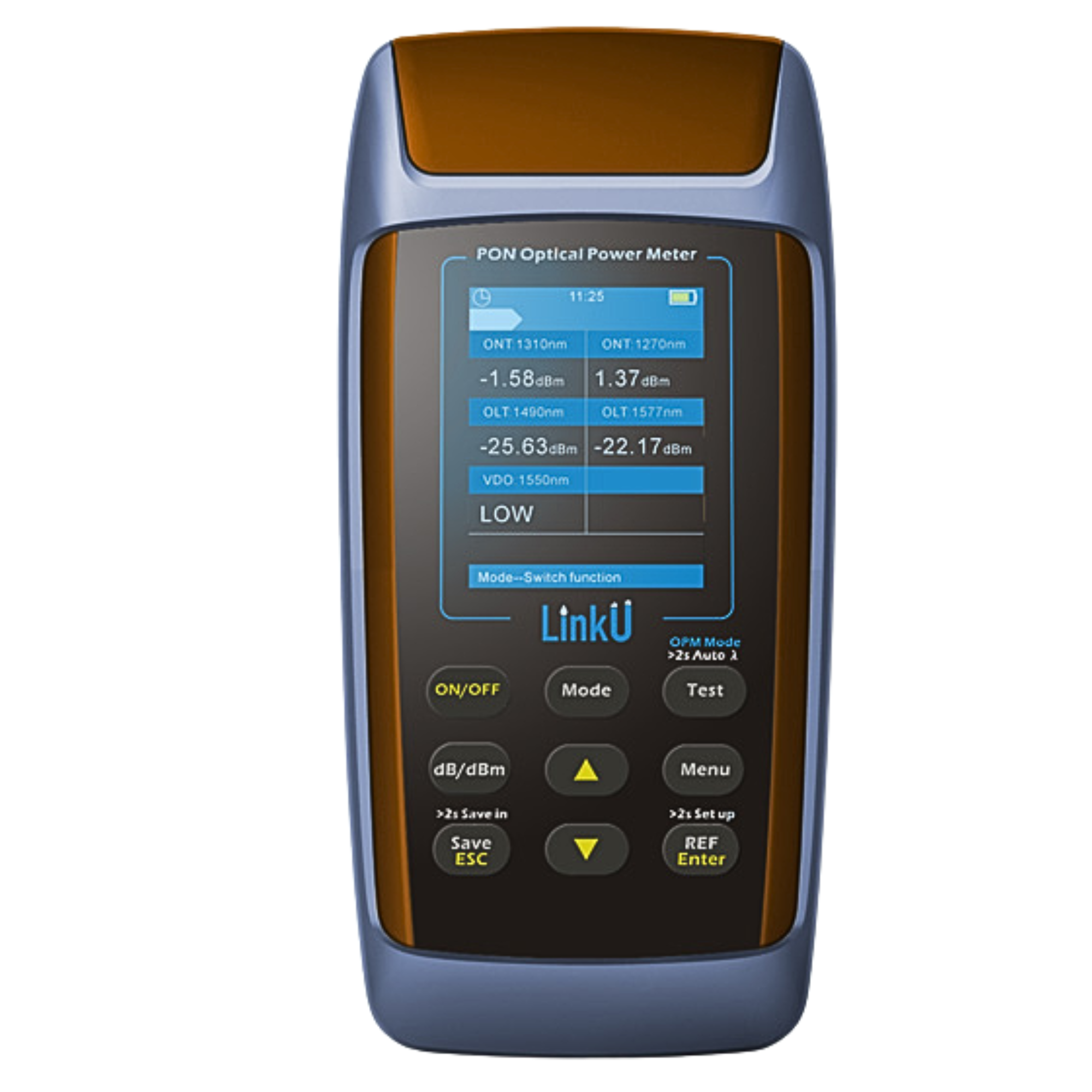

The LinkU LP-3PX XG-PON Optical Power Meter is a portable diagnostic instrument for installation, acceptance and maintenance of passive optical networks. It supports B-PON, E-PON and G-PON, together with next-generation high-speed 10G PON systems such as XG-PON and 10G-EPON.

Its pass-through measurement architecture allows technicians to verify optical power while the ONU/ONT and OLT remain connected. This helps evaluate live PON links without interrupting the optical path during normal field diagnostics.

Multi-wavelength upstream and downstream measurement

The instrument provides calibrated measurement channels at 1270, 1310, 1534 and 1610 nm on the upstream side and 1490, 1550, 1577 and 1600 nm on the downstream side. Burst and continuous-wave measurement ranges vary by wavelength, enabling use across legacy and 10G PON service combinations.

Fast Pass / Fail judgement

Up to 10 groups of threshold values can be configured. During testing, the measured values can be compared with the selected limits and displayed with Pass, Fail or Warning judgement for faster acceptance checks and standardized field procedures.

Data storage and optional diagnostic functions

The LP-3PX can store up to 1000 test results and includes a USB interface for data transmission. An additional VFL module (650 nm / 10 mW) or OPM module is available, depending on the configuration. Confirm the required module option before ordering.

Technical documents

Field-ready design

The instrument is specified with SC/APC connectivity or a customized connector configuration, operates from three AA batteries or an AC/DC adapter, and is rated for operation from -10°C to +50°C. The compact 170 × 82 × 35 mm enclosure is designed for telecom operators, ISPs, installers and maintenance teams working with FTTH and PON networks.

  • Supports B-PON, E-PON, G-PON, XG-PON and 10G-EPON networks.
  • Pass-through measurement for simultaneous ONU/ONT and OLT verification.
  • Calibrated upstream channels at 1270, 1310, 1534 and 1610 nm.
  • Calibrated downstream channels at 1490, 1550, 1577 and 1600 nm.
  • Up to 10 configurable threshold groups for Pass/Fail/Warning judgement.
  • Stores up to 1000 test results.
  • USB interface for data transmission.
  • 0.01 dB measurement resolution.
  • Optional integrated 650 nm / 10 mW VFL module.
  • Optional additional OPM module with six calibrated wavelengths.
  • Powered by 3 × AA batteries or AC/DC adapter.
  • Compact field instrument: 170 × 82 × 35 mm.

PON measurement channels

Channel Calibration wavelength Spectral passband Burst range CW range
Upstream 1270 nm 1260–1280 nm -10 to +13 dBm -35 to +13 dBm
Upstream 1310 nm 1290–1330 nm -30 to +13 dBm -30 to +13 dBm
Upstream 1534 nm 1330–1630 nm -10 to +13 dBm -35 to +13 dBm
Upstream 1610 nm 1330–1630 nm -10 to +13 dBm -35 to +13 dBm
Downstream 1490 nm 1480–1550 nm — -50 to +13 dBm
Downstream 1550 nm 1540–1560 nm — -45 to +30 dBm
Downstream 1577 nm 1573–1630 nm — -50 to +17 dBm
Downstream 1600 nm 1573–1630 nm — -50 to +17 dBm

General specifications

Model LP-3PX
Network compatibility B-PON, E-PON, G-PON, XG-PON, 10G-EPON
Maximum safe power 16 dBm (upstream group); 17 dBm @1490 nm; 30 dBm @1550 nm; 20 dBm @1577/1600 nm group
Isolation 30 dB typical
Power uncertainty 0.5 dB typical
Return loss 50 dB typical
Pass-through insertion loss 1.5 dB typical
Resolution 0.01 dB
PON connector SC/APC or customized
Power supply 3 × AA batteries; AC/DC adapter
Adapter output DC 5 V / 500 mA
Operating / storage temperature -10°C to +50°C / -20°C to +70°C
Dimensions (L × W × H) 170 × 82 × 35 mm
Result storage Up to 1000 records
Threshold groups Up to 10

Optional VFL module

Output wavelength 650 nm
Output power 10 mW
Modulation CW / 2 Hz

Optional OPM module

Calibrated wavelengths 850 / 1300 / 1310 / 1490 / 1550 / 1625 nm
Measurement range -70 to +10 dBm / -50 to +30 dBm (optional configuration)
Accuracy ±0.2 dB typical
Connector FC/PC and 2.5 mm universal

Which PON networks can the LP-3PX test?

The LP-3PX is specified for B-PON, E-PON and G-PON networks and for next-generation 10G PON systems including XG-PON and 10G-EPON.

Can it measure the line while the ONU and OLT remain connected?

Yes. The LP-3PX uses a pass-through measurement mode designed for simultaneous measurement and ONU/OLT verification.

Does it support Pass/Fail evaluation?

Yes. Up to 10 threshold groups can be configured, and the instrument can compare measured values with those limits for Pass, Fail or Warning judgement.

Can test results be stored and exported?

Yes. The instrument stores up to 1000 test results and includes a USB interface for data transmission.

Are VFL and standard OPM functions included?

An additional VFL or OPM module is available depending on the configuration. Confirm the required option before ordering.

What power supply does it use?

The LP-3PX can operate from three AA batteries or an AC/DC adapter. The user guide specifies DC 5 V / 500 mA for the adapter connection.
