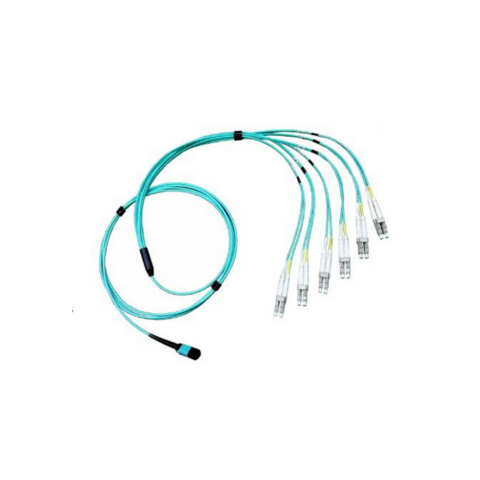

MTP/MPO staggered harness cable with offset LC/SC legs for optimized switch port routing in high-density racks.
Need a custom spec or OEM branding on this product? Talk to our engineering team.
Every batch, before shipment
Manufacturing
Custom specs and branding
Americas, Europe and Africa
The FAB-MPOH-STG is a staggered MTP/MPO harness cable designed for optimized switch port alignment in high-density data center environments. It features a 12/24-core MPO connector at one end and offset LC/SC fanout connectors at the other, with each 2-fiber leg staggered in length to match switch port spacing, significantly improving cable management and airflow.
Built for high-performance networks, this cable supports both single-mode (G.657A2) and multimode (OM3/OM4/OM5) fibers, offering seamless migration from 10G to 40G and 100G systems. The round cable construction with flexible fanout legs minimizes clutter and routing complexity, especially in spine-leaf switch architectures.
All connectors are factory-terminated and fully tested for IL, RL, and geometry, ensuring compliance with industry standards. Reinforced with dustproof boots and tensile protection, the staggered harness improves both durability and installation efficiency, especially in top-of-rack or end-of-row deployments.
Fibramérica’s staggered fanout design offers a premium solution for cable optimization, performance assurance, and clean routing in critical network infrastructures.
MPO to staggered LC/SC fanout with 12 or 24 fibers
Staggered leg design for precise switch port alignment
Supports OM3, OM4, OM5 and G.657A2 fiber types
Low insertion loss: ≤0.35 dB (Elite)
Pre-terminated and fully factory tested
Dustproof and tensile-protected boots on both ends
Reduces cable slack and improves rack airflow
Ideal for switch-to-panel routing and ToR alignment
Operating temperature: -20 to +70 °C
| Specification | Details |
|---|---|
| Model | FAB-MPOH-STG |
| Connector (End A) | MPO 12/24 core (Male/Female) |
| Connector (End B) | Staggered LC/SC fanout |
| Fiber Type | OM3, OM4, OM5, G.657A2 |
| Insertion Loss (MPO) | ≤0.70 dB (Std), ≤0.35 dB (Elite) |
| Return Loss (MPO) | ≥60 dB (SM), ≥20 dB (MM) |
| Insertion Loss (Fanout) | ≤0.30 dB |
| Durability | ≥500 mating cycles |
| Operating Temp | -20 to +70 °C |
